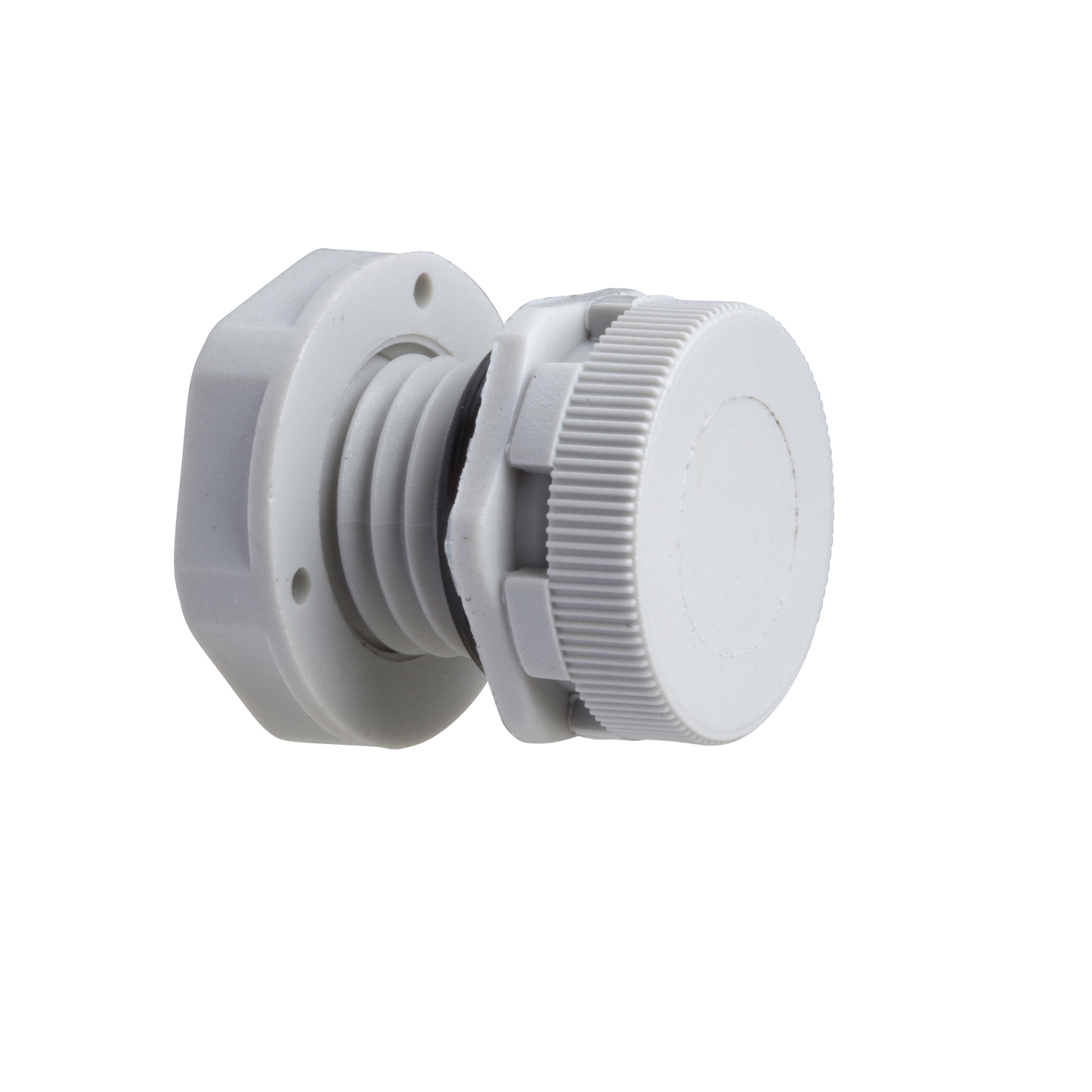

Set of 10 water resistant pressure release valve 140 x 30mm for Thalassa PLS, Thalassa PLM, Thalassa TBS and Thalassa TBP enclosures The product is made from PA6-V2 and membrane is made from acrilic co-polymer The kit is made of 1 valve The width is 140mm Cut-out diameter is 10,2mm Ingress protection rating (according to IEC 60529) is IP68 Fixing by screws Flame retardance V2 Operating temperature is in the range of -40-150 °C Pressure difference is less than 0,1 bar Permeability is 120 l/h This product is qualified as a green premium, with minimal use of hazardous substances
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | set of 10 |
| Environmental characteristic | water resistant |
| Range | ClimaSys |
| Device composition | 1 valve |
| Product name | ClimaSys CA |
| Product or component type | pressure release valve |
| Accessory / separate part category | thermal management accessory |
| Fixing mode | screwed |
| Range compatibility | Thalassa Thalassa TBP, Thalassa Thalassa TBS, Thalassa Thalassa PLM, Thalassa Thalassa PLS |
| Complementary | |
| Diameter | 10.2 mm |
| Material | PA6, membrane: acrilic co-polymer |
| Height | 30 mm |
| Width | 140 mm |
| Flame retardance | V2 |
| Permeability | 120 l/h |
| Pressure difference | < 0.1 bar |
| Ambient air temperature for operation | -40-150 °C |
