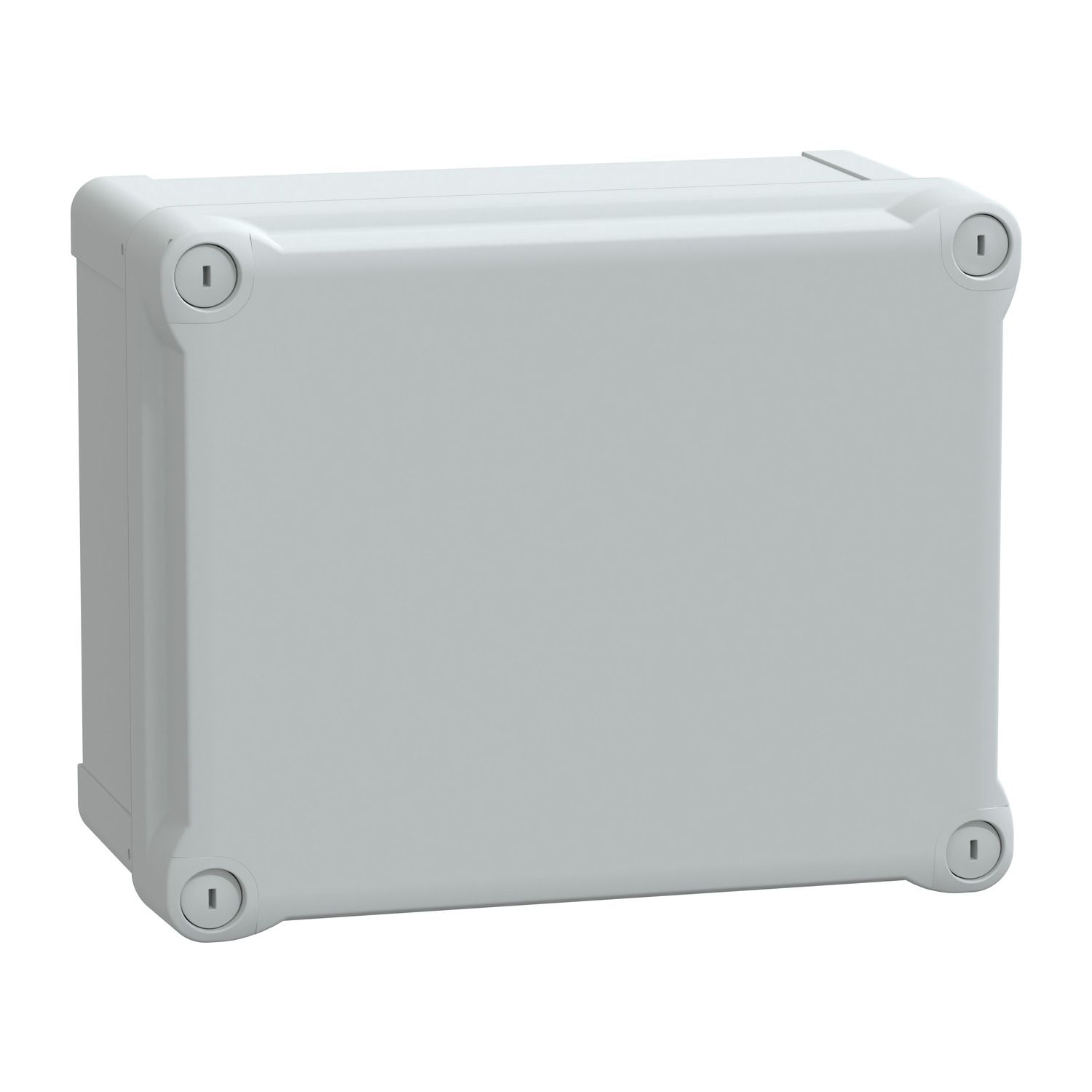

This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications The box has a height, width, and depth of 241 mm, 194 mm, and 127 mm, respectively The internal dimensions of the box are 225 mm x 175 mm x 120 mm The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact and high temperatures The box comes in a grey (RAL 7035) color It has a high plain cover that is fixed with captive flat screws The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions It is also resistant to fire up to 650°C in accordance with IEC 60695-2-11 standard The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK07 rating (IEC 62262) It can be stored in ambient air temperatures ranging from -15 to 40°C and used in ambient air temperature ranging from -25 to 60 °C without affecting its performance It has a net weight of 0,78 kg and is available in a set of 3

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Depth 127 mm
Width 194 mm
Enclosure mounting wall mounted
Cover fixing plastic screws
Body type one piece moulded
Range Thalassa
Type of front cover high plain cover
Device composition 4 cover screw, 1 cover, 1 body
Lock type captive screw flat outside sealed area
Product name Thalassa TBS
Internal depth 120 mm
Internal height 225 mm
Internal width 175 mm
Product or component type industrial box
Height 241 mm
Removable parts cover by captive screws
Complementary
Colour grey (RAL 7035)
Fire resistance 650 °C conforming to IEC 60695-2-11
Material ABS (acrylonitrile butadiene-styrene)
Ambient air temperature for storage -15-40 °C
Electrical insulation class class II
IP degree of protection IP66 conforming to NEMA 4.4X
Net weight 0.78 kg
Standards IEC 62208
Ambient air temperature for operation -25-60 °C
IK degree of protection IK07 conforming to IEC 62262
Product certifications TÜV
Only registered users can write reviews

ABS box, Thalassa, IP66 IK07 RAL7035 Int.H225W175D120 Ext.H241W194D127 Opaque cover H40
