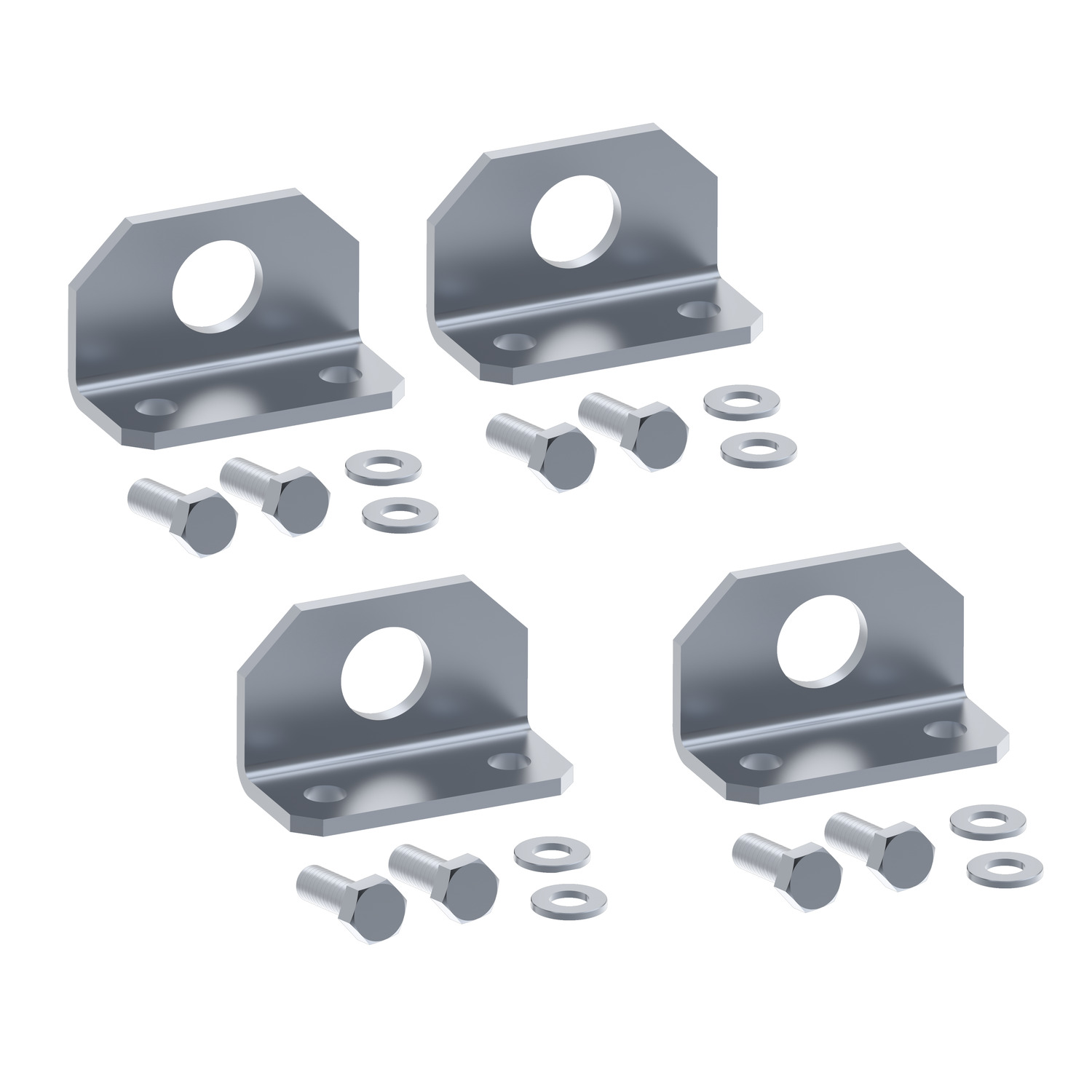

Set of 4 lifting brackets for Spacial SF/SFHD/SFM, Prisma PH. H is60 x W is100 x D is49 mm. Mounting on enclosure top. Support directly in the axis of the uprights. Permanent permissible load 500 kg. Fixing by screws type M12. Steel made, zinc coated surface finish.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | multi-purpose |
| Quantity per set | set of 1 |
| Range | Spacial |
| Accessory / separate part category | lifting accessory |
| Mounting location | enclosure top |
| Device composition | fixing elements, 4 bracket |
| Product or component type | lifting bracket |
| Range compatibility | Spacial Spacial SFM, Prisma Prisma PH, Spacial Spacial SFHD, Spacial Spacial SF |
| Mounting support | directly in the axis of the uprights |
| Complementary | |
| Diameter | 32 mm |
| Width | 100 mm |
| Permanent permissible load | 500 kg |
| Depth | 49 mm |
| Fixing mode | by screws - screw type M12 |
| Surface finish | zinc coated |
| Material | steel |
| Height | 60 mm |
