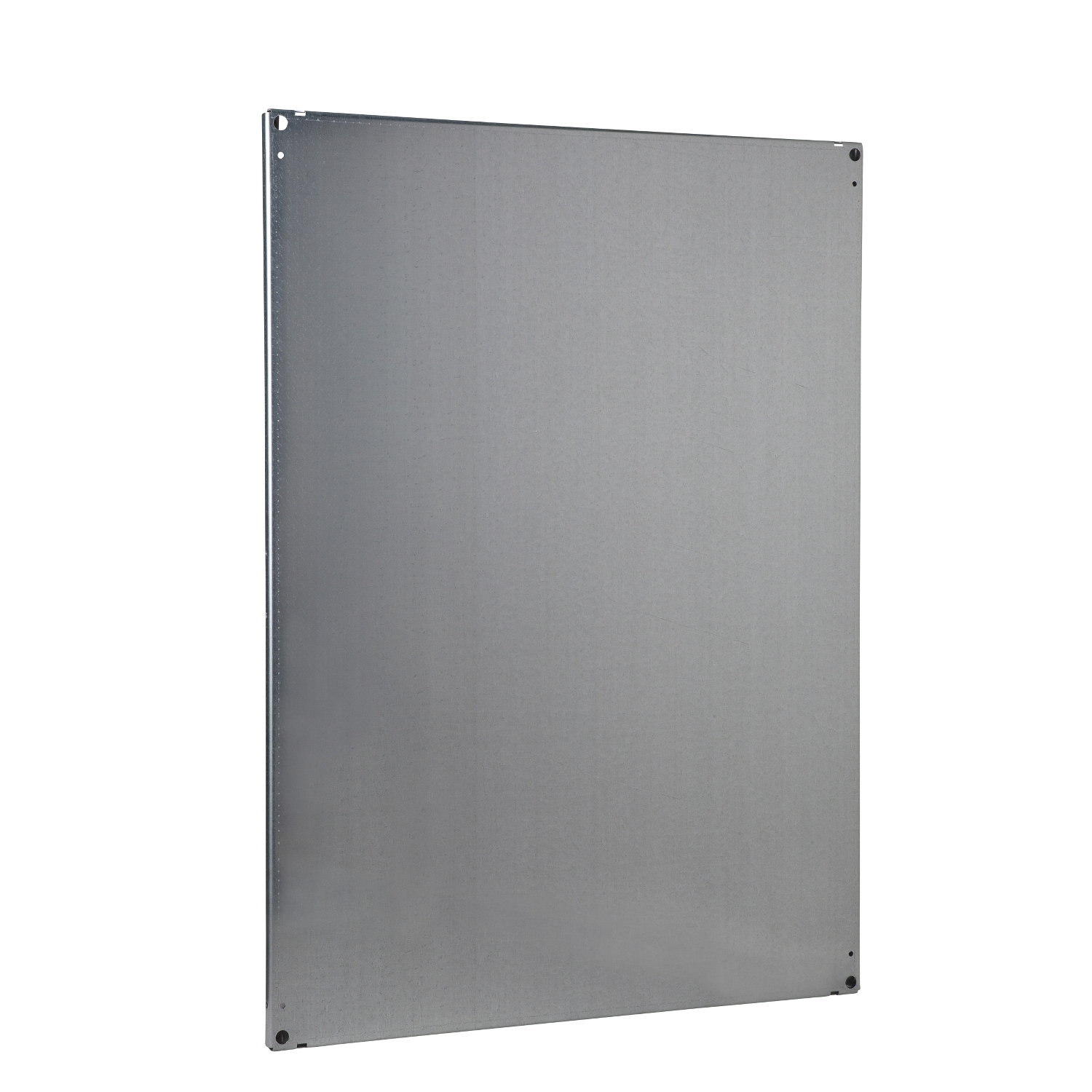

Spacial SF/SM galvanized mounting plate. 1999 x 1600 mm. Max. load is 600 kg if positioned in the back, 500 kg if in intermediate position of enclosure. Equipped with a perimeter reinforcement rib. Galvanised steel. 2 sliding shoes included.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting plate description | plain |
| Device application | multi-purpose |
| Quantity per set | set of 1 |
| Material | galvanised steel |
| Range | Spacial |
| Device composition | 2 sliding shoes, 1 mounting plate |
| Product or component type | mounting plate |
| Accessory / separate part category | mounting accessory |
| Range compatibility | Spacial Spacial SMX, Spacial Spacial SFX, Spacial Spacial SM, Spacial Spacial SF |
| Enclosure nominal dimensions | - |
| Complementary | |
| Maximum load | 300 kg/m² |
| Height | 1897 mm real: , 2000 mm nominal: , 1850 mm fixing centers: |
| Width | 1496 mm real: , 1600 mm nominal: , 1450 mm fixing centers: |
| Permanent permissible load | 600 kg back of the enclosure, 500 kg intermediate position |
| Depth | 27 mm |
| Fixing mode | by fixing brackets |
