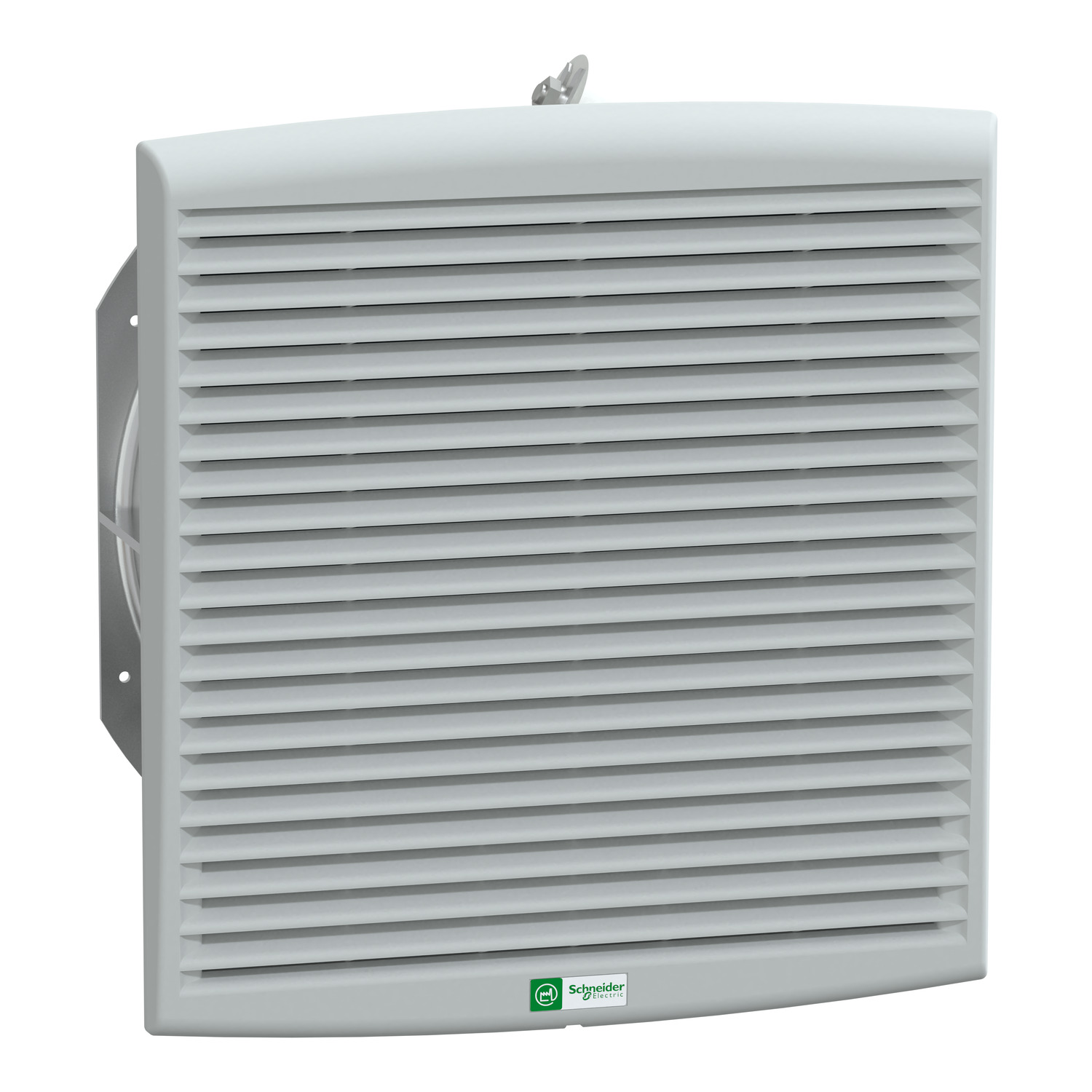

ClimaSys CV Axial motor ventilator. 115V 50Hz or 60Hz. 145W 50 Hz, 182W 60 Hz. Free flow rate with standard filter of 944 m3/h at 50 Hz and 983 m3/h at 60 Hz. 336 x 316 x 162 mm. Cut-out dimensions of 291 x 291 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input voltage | 115 V 50/60 Hz |
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | fan |
| Type of ventilation filter | standard |
| Air flow | free flow rate with standard filter: 944 m3/h at 60 Hz, free flow rate with standard filter: 983 m3/h at 50 Hz |
| [Us] rated supply voltage | 103...122 V |
| Complementary | |
| Noise level | 77-78 dB |
| Bearing type | ball |
| [In] rated current | 1.6-1.6 A 60 Hz, 1.279-1.279 A 50 Hz |
| Colour | outlet grille: grey (RAL 7035) |
| IP degree of protection | IP54 |
| Material | outlet grille: injected thermoplastic (ASA PC) |
| Height | 336 mm external: |
| Width | 316 mm external: |
| Ambient air temperature for storage | -40-70 °C |
| Cut-out dimensions | 291 x 291 mm |
| Depth | 162 mm external: |
| Net weight | 4.1 kg |
| Device composition | 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor |
| Maximum pressure | 170 Pa flow rate 0 m³/h |
| Condition of use | surrounding environment must be relatively clean, flow rates depends on the work point, see ProClima software, outside temperature must be 5 °C lower than inside temperature, overfrequent filter replacement should be avoided, filter must be cleaned and replaced regularly |
| Power range | 182 W 60 Hz, 145 W 50 Hz |
| Ambient air temperature for operation | -15-60 °C |
| Connections - terminals | terminal block |
