Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input voltage | 48 V DC |
| Range | ClimaSys |

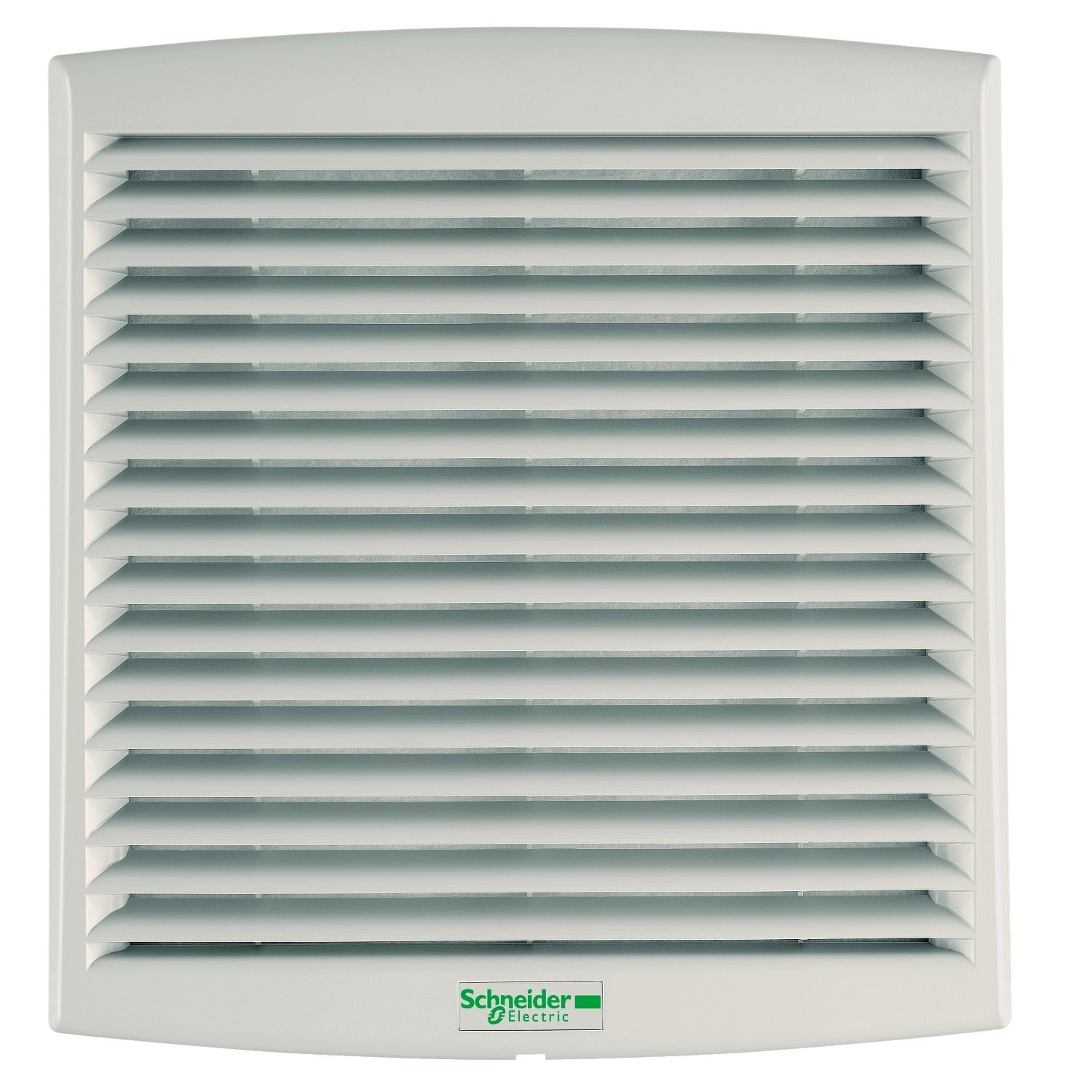

| Product name | ClimaSys CV |
| Product or component type | fan |
| Type of ventilation filter | standard |
| Air flow | free flow rate with standard filter: 44 m3/h |
| [Us] rated supply voltage | 36...56 V |
| Complementary | |
| Noise level | 40-41 dB |
| Bearing type | ball |
| [In] rated current | 0.07-0.07 A |
| Colour | outlet grille: grey (RAL 7035) |
| IP degree of protection | IP54 |
| Material | outlet grille: injected thermoplastic (ASA PC) |
| Height | 137 mm external: |
| Width | 117 mm external: |
| Ambient air temperature for storage | -40-70 °C |
| Cut-out dimensions | 92 x 92 mm |
| Depth | 49 mm external: |
| Net weight | 0.23 kg |
| Device composition | 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor |
| Maximum pressure | 29 Pa flow rate 0 m³/h |
| Condition of use | filter must be cleaned and replaced regularly, flow rates depends on the work point, see ProClima software, overfrequent filter replacement should be avoided, surrounding environment must be relatively clean, outside temperature must be 5 °C lower than inside temperature |
| Power range | 3.6 W |
| Ambient air temperature for operation | -10-70 °C |
| Connections - terminals | cable |
