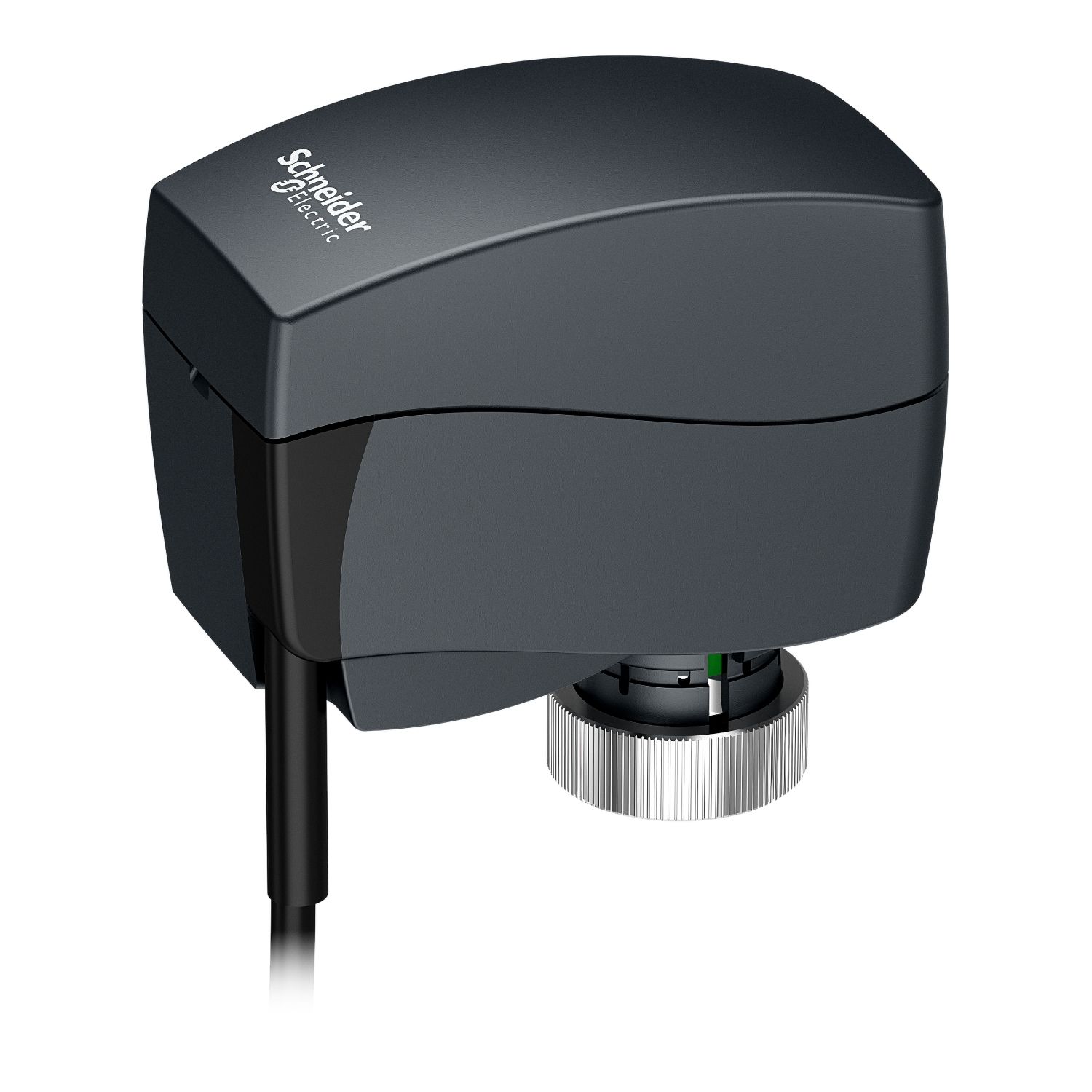

The MP130-24T is 2-point three-wire actuators used with SpaceLogic PIBCV DN 10…32 valves. The actuator can be used with fan coil units, induction units, small reheaters, recoolers and zone applications in which hot/cold water is the controlled medium. The actuator factory default setting is spindle fully retracted. 2 point three-wire actuatr, force switch-off at stel down position prevents overload of actuator and valve, Maintenance-free lifetime. Power Supply: 24 Vac +10%...-15%. Close of Force: 200 N. Protection code IP42. Max. Stroke 5.5 mm. LVD: 26/95/EC.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product destination | pressure independent control valves |
| Product or component type | actuator |
| Power consumption in VA | 1 VA AC |
| Targeted region | Asia Pacific., Australia., Europe |
| Complementary | |
| Force N | 200 N |
| Material | polycarbonate: housing |
| Stroke running time | 12 s |
| [Us] rated supply voltage | 24 V AC |
| Electrical insulation class | class III |
| Stroke length | 5.5-5.5 mm |
| Force lbf | 45 lbf |
| Actuator | linear |
| Environment | |
| IP degree of protection | IP42 |
| Relative humidity | 0-80 % RH, non-condensing |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | 0-55 °C |
| Power loss return | non-spring return |
| Control signal | 2-position (on/off) |
| Lead length | 1.5 m |
| Actuator type | electric |
| Actuator product range | SmartX Actuator |
| Actuator product series | MP130 |
