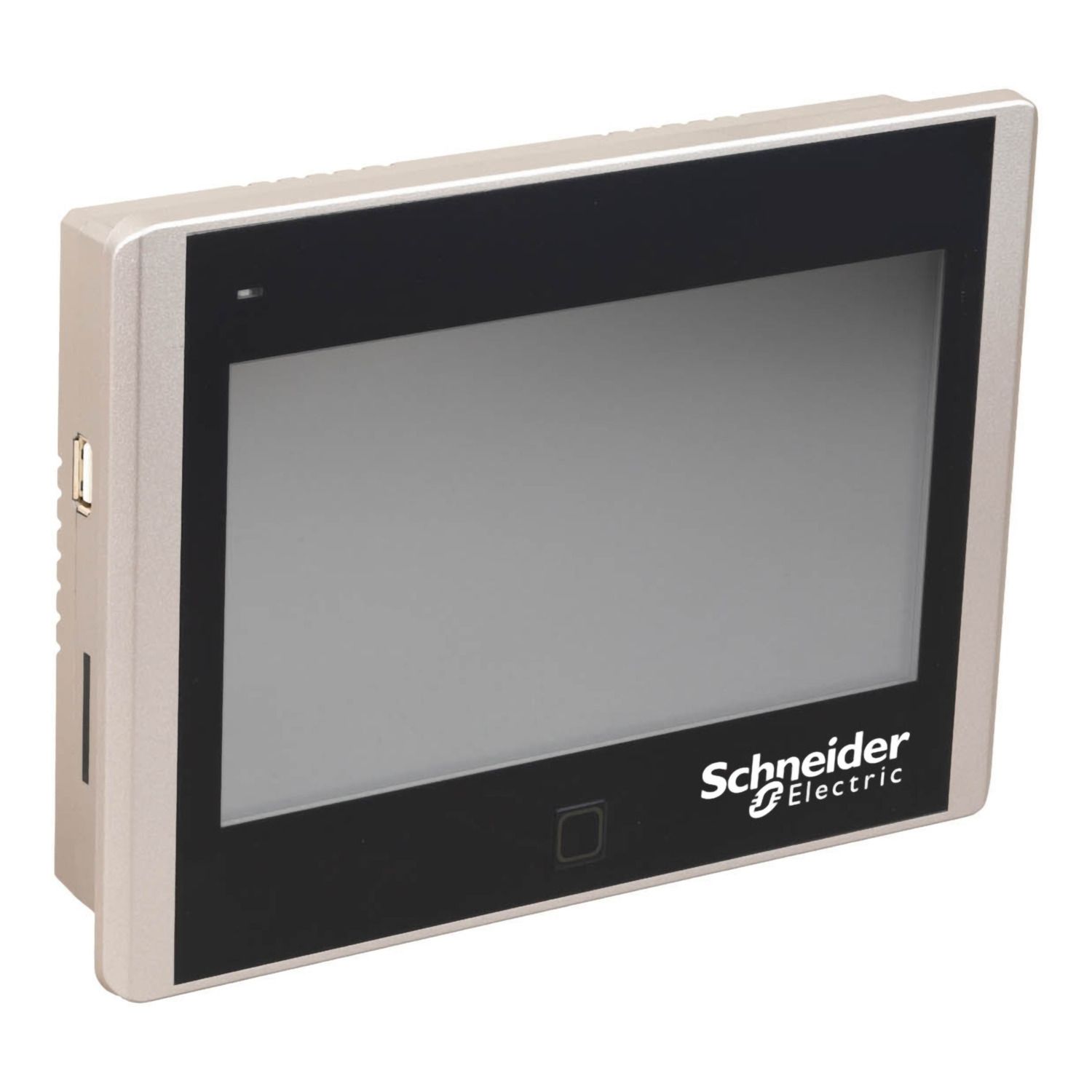

The multi-circuit PowerLogic HDPM6000 series propose a monitor to visualise measured parameter of multiple head units. The interface can display mains data (volt, current, energy), quality (power, harmonic distortions), harmonics or individual branches. Configuration of the display can be password protected. The menu will help you configure your environment (device, panel) and input/outputs modues. Include a SD card port, 1 Ethernet bus, 2 USB (host+device), 3 serial buses. The viewable area consist of a color TFT LCD, 7inches, 800 pixels by 480 pixels. The device support and display data from 1 to 4 head unit. The display need to be supplied with a 24VDC isolated power, that can provide at least 420mA. The dimensions are 200mm in width, 147.8mm in height, 39.8mm in depth for a net weight of 680g. The recommanded enclosure cut-out should be 184.1mm x 132.1mm. Ingress Protection IP65 rating, waterproof, on front. The box includes 4 mounting clip screws to be front-mounted to a panel. Recommanded torque is 0.39Nm plus or minus 0.1Nm, screws need to be tightened evenly, not one by one.
