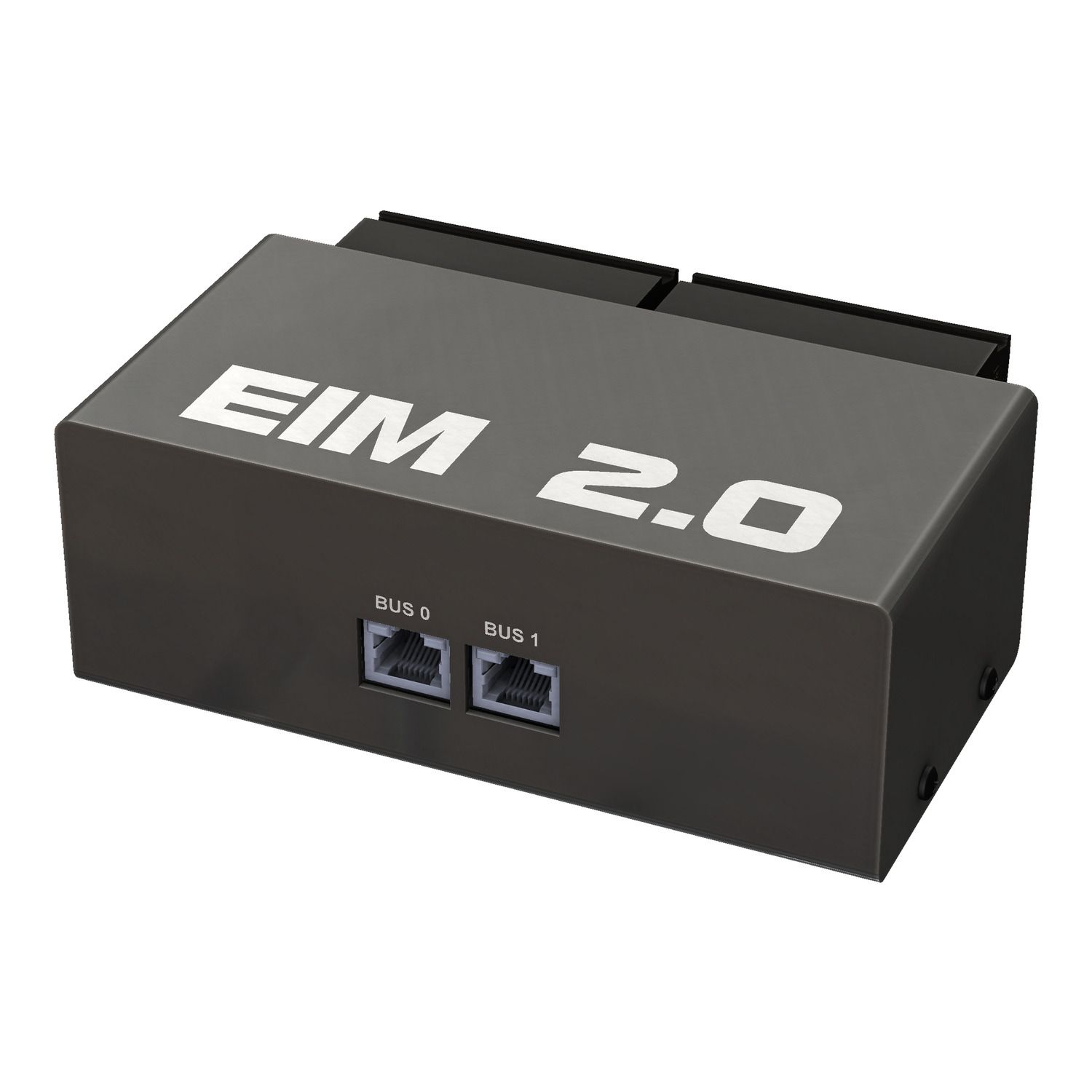

PowerLogic HDPM6000 Expanded Input Module (EIM 2.0), additional digital input module

Add monitoring ability to HDPM6000

Can be used to monitor accessories equipment

Digital input module powered by the head unit

include an additional CT input

Manufacturer: Schneider Electric

SKU: METSEHDPM6DI

GTIN: 3606482213760

PDF

Image of product

User guide

Instruction sheet

Declaration of conformity

Catalog

Full Description

Optional expension module compatible with PowerLogic HDPM6000 devices that provides additional digital inputs. This Expanded Input Module provide 24 dry contact inputs. Maximum input voltage is 5VDC. The input module dimensions are 157mm in width, 103mm in height and 58mm in depth. The elements can be mounted on a DIN rail thanks to the clips on the side. To be connected to the PowerLogic HDPM6000 head unit with Ethernet cable in daisy-chain.

Availability: Out of stock

Old price: $1,650.00 inc GST

Price: $1,192.12 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Range compatibility	PowerLogic PowerLogic HDPM6000 base unit
Product or component type	I/O module
Range	PowerLogic
Complementary
Number of inputs	24 dry contact
Input impedance	47 Ohm
Width	157 mm
Depth	58 mm
Height	103 mm
Input voltage	5 V DC
Environment
Ambient air temperature for operation	-20-60 °C
Ambient air temperature for storage	-20-70 °C
Contractual warranty
Warranty	18
