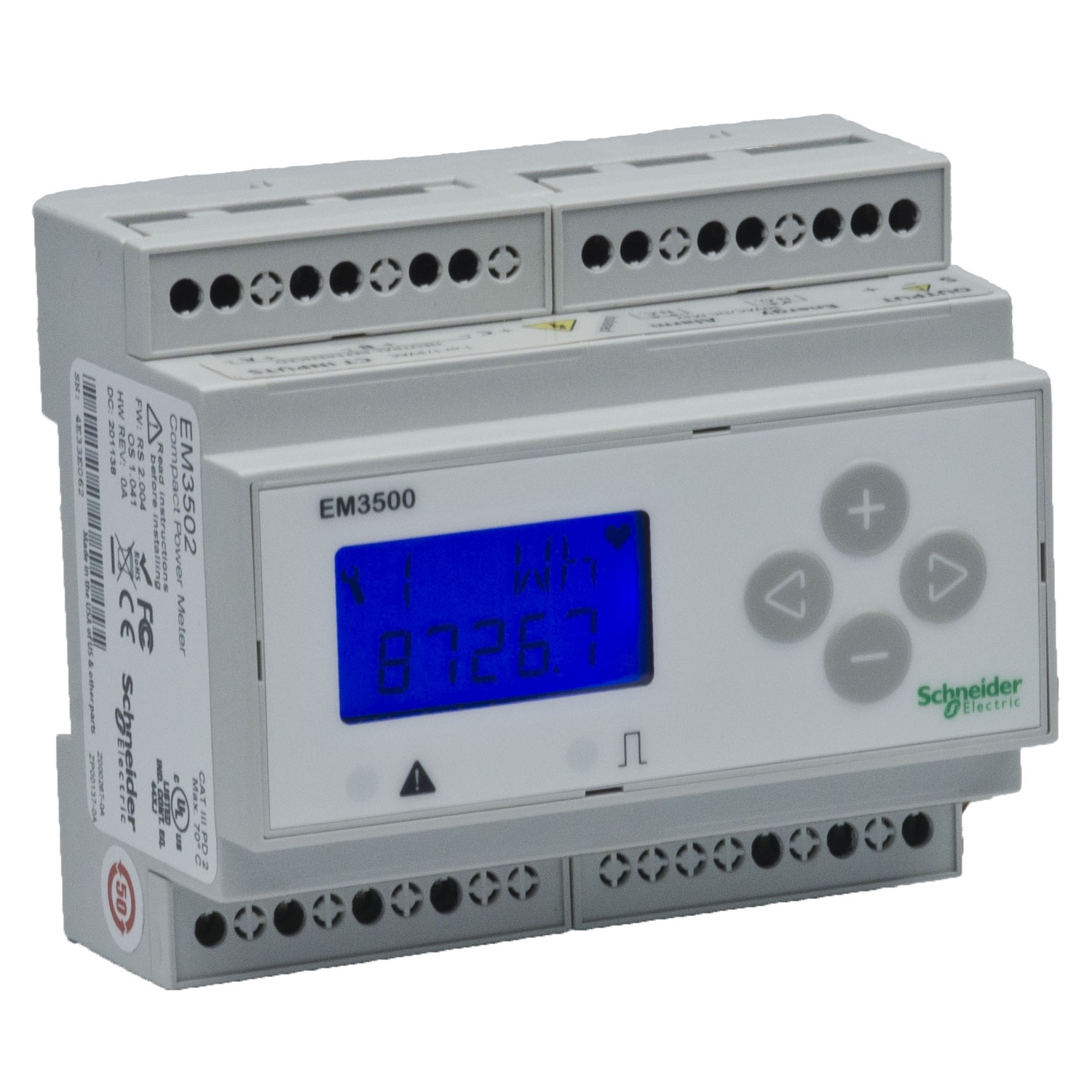

The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xx models are designed for use with Low Votage Current Transducers 1/3Volt or 1Volt output. Current input from 5A to 32000A, according to the LVCT configuration in the HMI, ANSI C12.20 0.2% accuracy, IEC 62053-22 class 0.2S. The data logging capability protects data in the event of a power failure. Modbus, pulse output, and phase alarms are all provided to suit a wide variety of applications. This model add a bi-directional monitoring feature designed expressly for renewable energy applications. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Metering type | voltage U21, U32, U13, V1, V2, V3, demand power P, Q, S, active, reactive, apparent energy (signed, four quadrant), current I1, I2, I3, Iavg, peak demand power PM, QM, SM |
| Device short name | EM3555 |
| Range | PowerLogic |
| Product name | PowerLogic EM3500 |
| Product or component type | energy meter |
| Complementary | |
| Rated voltage | 90-347 V |
| Accuracy class | class 0.2S energy conforming to ANSI C12.20, class 0.2S power conforming to ANSI C12.20, class 0.2S energy conforming to IEC 62053-22, class 0.2S power conforming to IEC 62053-22 |
| Device application | sub billing, partial meter |
| Display type | backlit LCD |
| Analogue input type | split core current transducer 0.333 V or 1 V |
| Data recording | time stamping, energy consumption logs |
| Poles description | 3P + N |
| Buffer size | 16-bit 10 |
| Technology type | electronic |
| Measurement accuracy | energy +/- 0.2 %, power +/- 0.2 % |
| Power consumption in W | 3 W at 300-300 V |
| Local signalling | green flashing LED: output signal, red LED: threshold reached |
| Mounting mode | by screws, clip-on |
| Function available | fixed or rolling block, external synchronisation to communication |
| Information displayed | instant power per usage, Rx activity, Tx activity, error, input/output status, communication with system, status and alert |
| Measurement current | 5-32000 A |
| Tamperproof of settings | protected by access code |
| Communication of data | lifetime energy production, instantaneous and demand values |
| Display digits | 5 |
| Ride-through time | 100 ms 120 V AC |
| Communication service | total cumulated energy, total cumulated active energy |
| Communication port protocol | Modbus RTU at 1200…38400 bps - 2-wire |
| Type of measurement | frequency, voltage, current, peak demand power, power factor per phase, power factor total, apparent power per phase, apparent power total, active and reactive power per phase, active and reactive power total |
| Product certifications | cULus conforming to UL 508, CE conforming to IEC 61010 |
| Power consumption in VA | 5-5 VA at 600 V AC (between phases), 5-5 VA at 347 V AC (between phase and neutral) |
| Mounting support | DIN rail |
| Number of outputs | 1 pulse, 1 alarm output |
| Standards | IEC 61010-1, UL 508, CSA C22.2 No 14-05 |
| [Ue] rated operational voltage | 125...300 V DC, 90...300 V AC 50/60 Hz between phase and neutral conforming to CE, 156...600 V AC 50/60 Hz between phases conforming to UL, 90...347 V AC 50/60 Hz between phase and neutral conforming to UL |
| Communication port support | screw terminal block: RS485 |
| Network frequency | 50 Hz, 60 Hz |
| Environment | |
| Depth | 59 mm |
| Width | 107 mm |
| Relative humidity | 0-95 % |
| Ambient air temperature for storage | -40-85 °C |
| Colour | dark grey |
| 9 mm pitches | 12 |
| Height | 91 mm |
| Ambient air temperature for operation | -30-70 °C |
Only registered users can write reviews
Related products

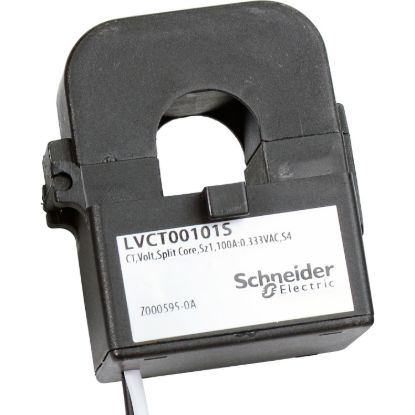

LVCT 100 A - 0.333 V output - split core CT - Ø=16 mm x H=20 mm
LVCT00101S
LVCT 100 A - 0.333 V output - split core CT - Ø=16 mm x H=20 mm
$250.25 inc GST
$180.81 inc GST

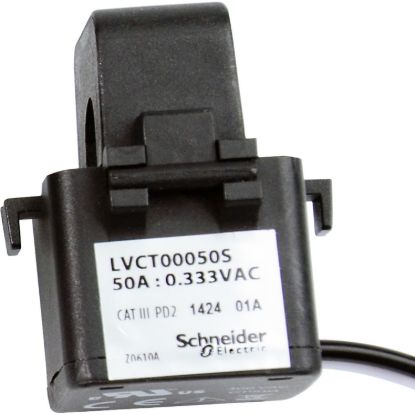

LVCT 50 A - 0.333 V output - split core CT - Ø=10 mm x H=11 mm
