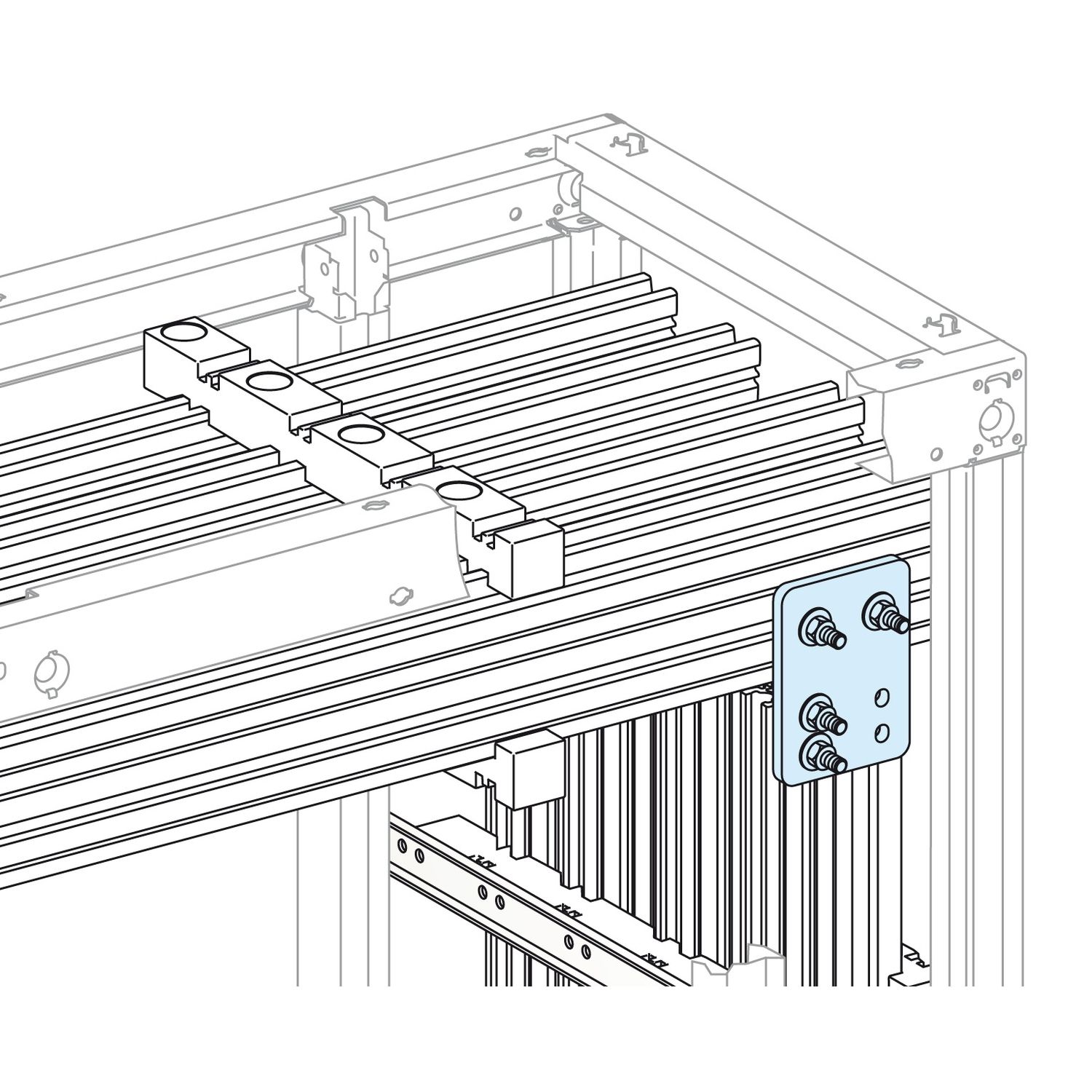

Linergy LGYE Vertical Short Connection designed for high-performance electrical distribution systems. Compatibility with Connects to horizontal Linergy LGYE busbars with a thickness of 5mm. Rated for Icw 100kA rms for 1 second and with Current Rating of 2500A. IP30, IP31 and IP55 Protection Ratings.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Provided equipment | fixing frame, fixing elements |
| Range | Linergy |
| Range of product | Linergy |
| Standards | IEC 61439-1, inside enclosure, IEC 61439-2, inside enclosure |
| Product name | Linergy LGYE |
| Product or component type | connection |
| Range compatibility | Linergy Linergy LGYE busbar, PrismaSeT PrismaSeT P enclosure |
| Product certifications | ASTA |
| Complementary | |
| Quantity per set | set of 1 |
| Installed device | connection: busbar vertical installation - bottom connection |
| Height | 140 mm |
| Cubicle-device connection | Linergy busbar |
| Depth | 4 mm |
| Width | 130 mm |
| [Ie] rated operational current | 2500 A |
| Net weight | 1.2 kg |
