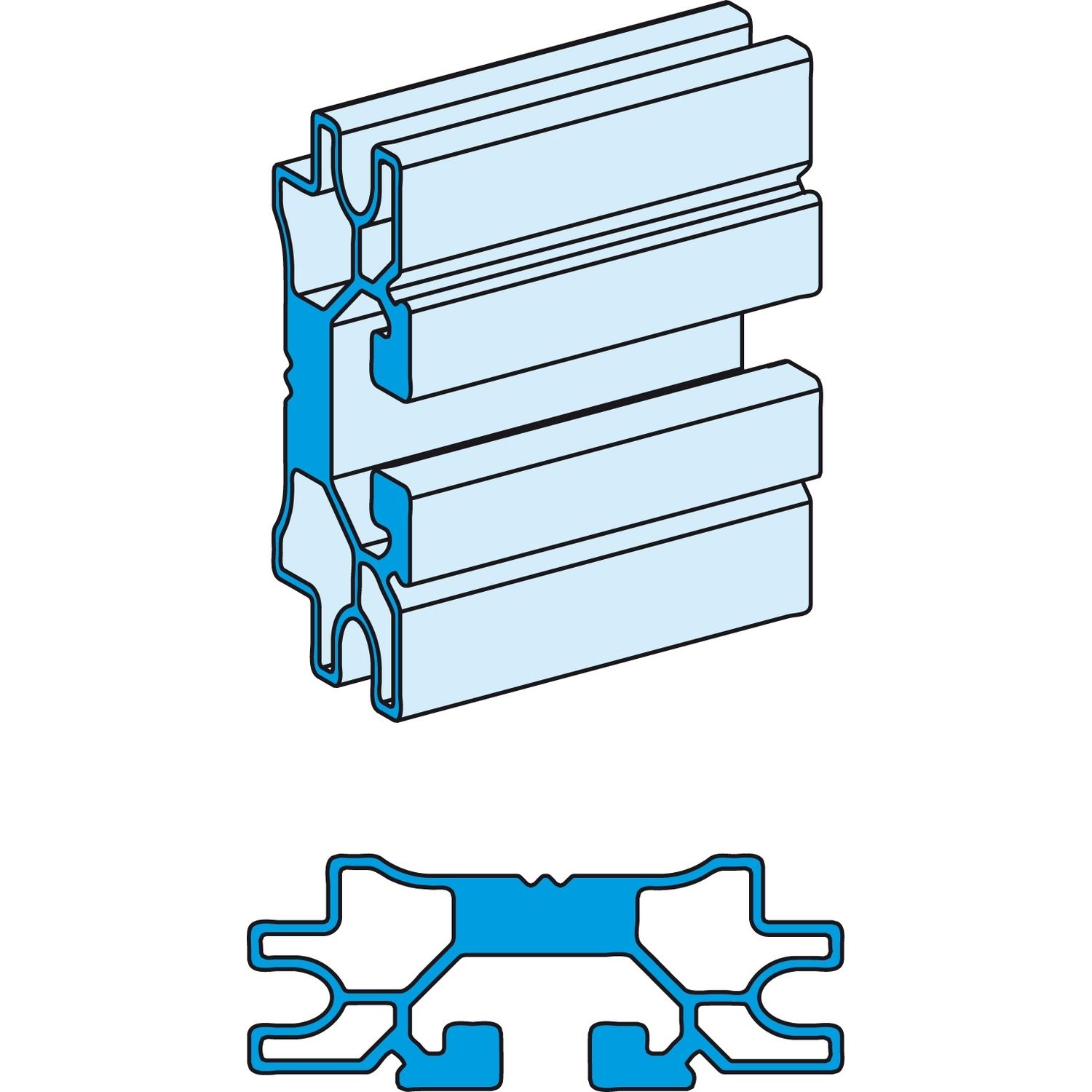

Linergy Profile busbar is a horizontal busbar profile designed for use in electrical distribution panels. Designed to handle currents up to 1000A, ensuring reliable power distribution for demanding electrical systems. Linergy profile with dimension Length 2000mm. The busbar has a compact design, allowing for efficient use of space in electrical panels.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | set of 1 |
| Busbar description | Linergy |
| Range | Linergy |
| Accessory / separate part category | busbar accessory |
| Range of product | Linergy |
| Product name | Linergy LGYE |
| Product or component type | profile busbar |
| Range compatibility | PrismaSeT PrismaSeT P enclosure |
| Complementary | |
| [Icw] rated short-time withstand current | 40 kA (1 s) for 2 supports (horizontal position) |
| Colour | natural |
| Compatibility code | busbar_evo |
| Installation direction | horizontal, operating position: bottom, horizontal, operating position: top |
| Enclosure/cubicle description | cubicle duct - width 400 mm, cubicle duct - width 300 mm, cubicle - width 650 + 150 mm, cubicle - width 650 mm |
| Height | 150 mm |
| Depth | 23 mm |
| Width | 60 mm |
| Permissible current | 850 A at 35 °C: > IP31, 1000 A at 35 °C: <= IP31 |
| [Ie] rated operational current | 1000 A |
| [Ui] rated insulation voltage | 1000 V |
| Connection pitch | free connection position |
| Type of busbar connection | single t-slot |
| [Uimp] rated impulse withstand voltage | 12 kV (degree of pollution: 3) |
| Net weight | 2.23 kg |
| Length | 2000 mm |
| Environment | |
| Standards | IEC 61439-2, IEC 61439-1 |
| Product certifications | ASTA |
Only registered users can write reviews
Related products

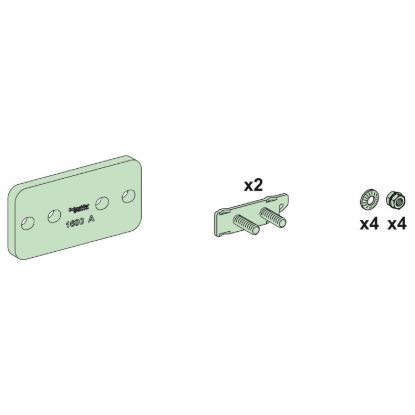

Connection, Linergy LGY, for horizontal busbar joint connection 1600A
