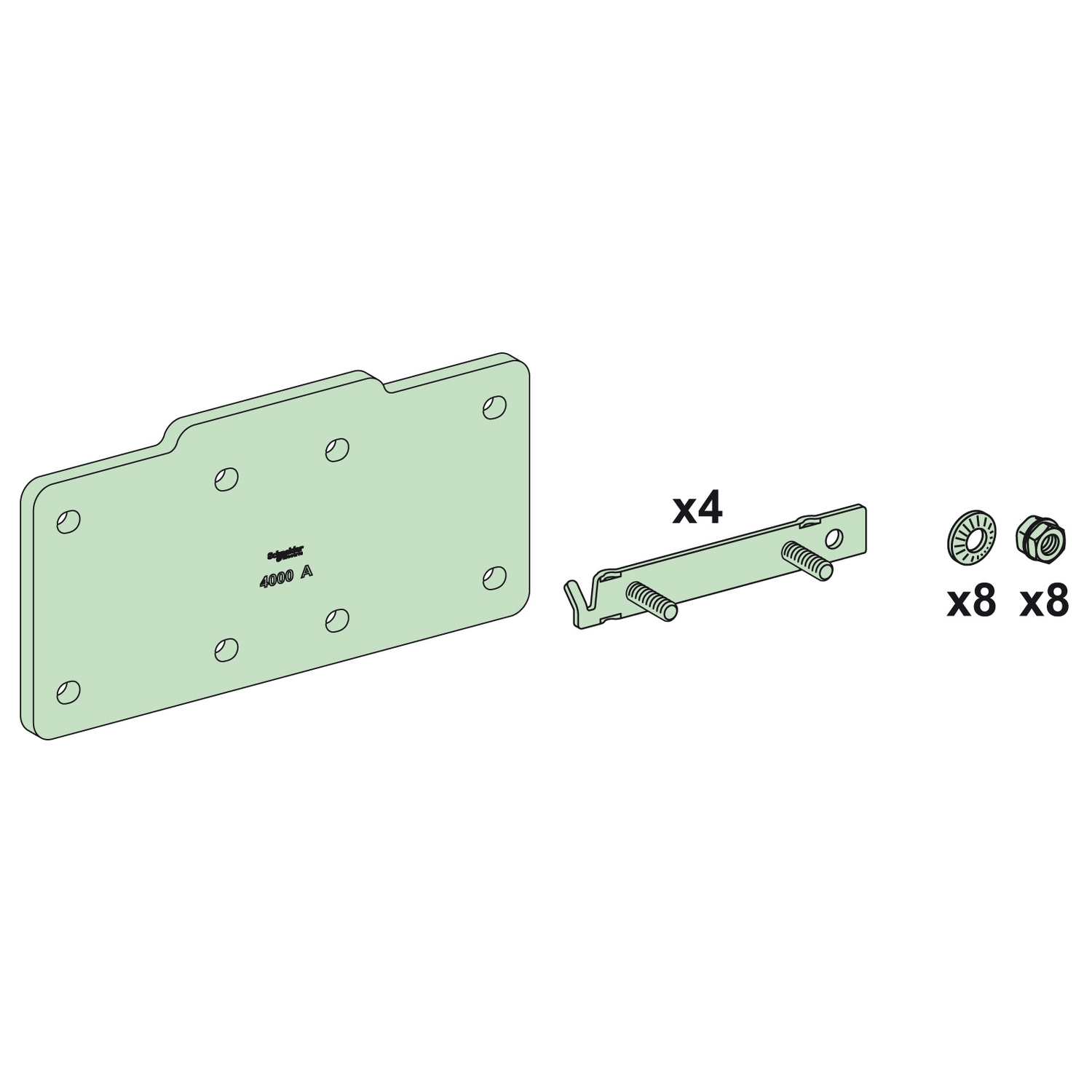

Connection for Linergy LGYE. With rated Current 4000A suitable for high power applications. Designed for horizontal busbar connections, enhancing flexibility in system design.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Provided equipment | fixing elements, fixing frame |
| Range | Linergy |
| Range of product | Linergy |
| Standards | IEC 61439-1, IEC 61439-2, inside enclosure |
| Product name | Linergy LGYE |
| Product or component type | connection |
| Range compatibility | Linergy Linergy LGYE busbar, PrismaSeT PrismaSeT P enclosure |
| Product certifications | ASTA |
| Complementary | |
| Quantity per set | set of 1 |
| Installed device | connection: busbar horizontal installation |
| Height | 240 mm |
| Cubicle-device connection | Linergy busbar |
| Depth | 4 mm |
| Width | 130 mm |
| [Ie] rated operational current | 4000 A |
| Net weight | 3.22 kg |
