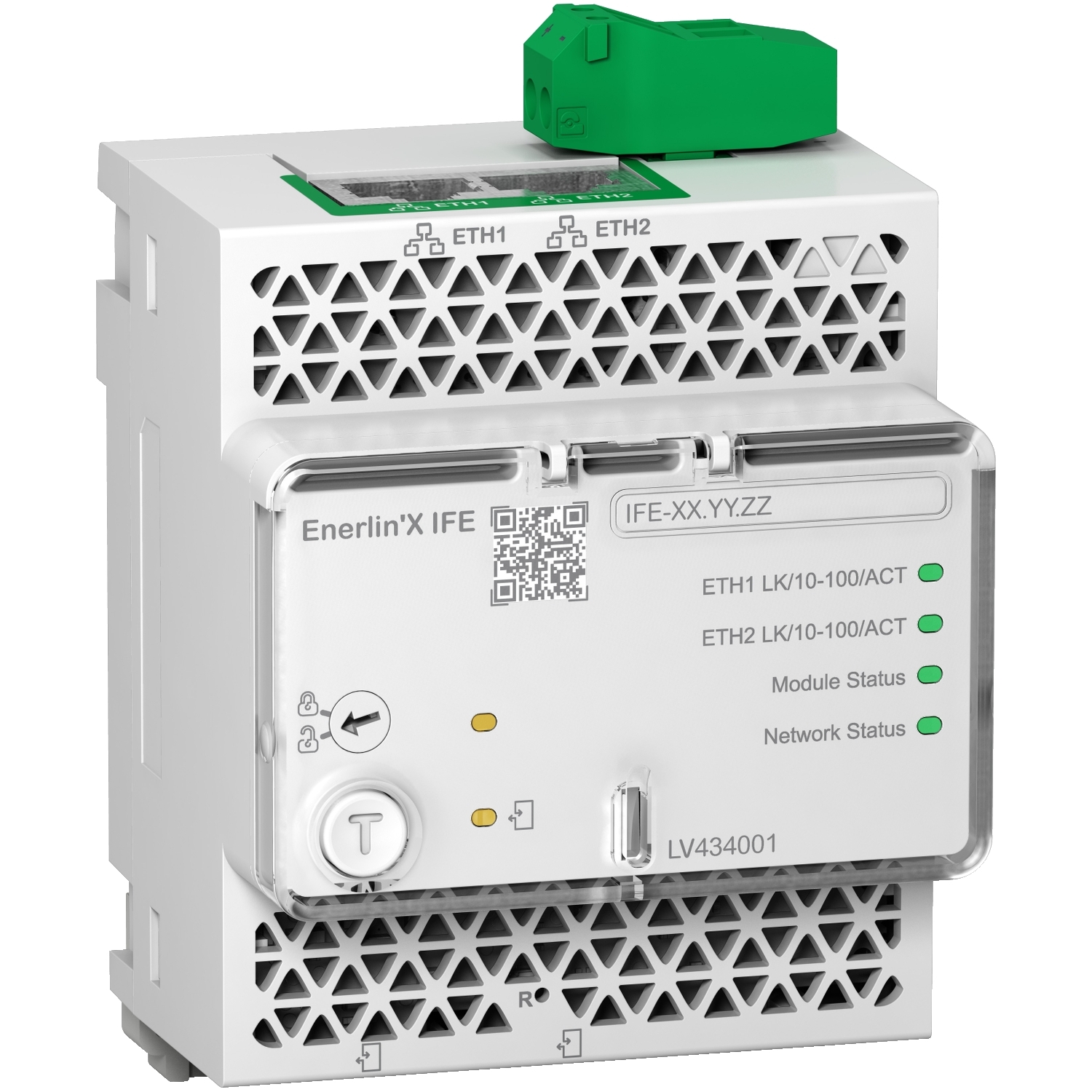

This IFE is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to a single Masterpact, Compact or PowerPact circuit breaker. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE interface is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE interface is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE interface firmware can be updated using EcoStruxure Power Commission software.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | PowerPact PowerPact R, PowerPact PowerPact P, PowerPact PowerPact H, PowerPact PowerPact L, PowerPact PowerPact J, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600, ComPact ComPact NSX, Masterpact MasterPact NW, Masterpact MasterPact NT, Masterpact MasterPact MTZ |
| Device short name | IFE |
| Range | Enerlin'X |
| Range of product | ComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630, ComPact NSX100...250 |
| Product or component type | interface module |
| Complementary | |
| Web server | embedded HTTP server |
| Compatibility code | IFE |
| Height | 105 mm |
| [Us] rated supply voltage | 24 V DC - 20...10 % |
| Accessory / separate part category | spare part for Compact NS1600b...3200, spare part for Compact NS630b...1600 |
| Current consumption | 120 mA |
| Net weight | 182.5 g |
| Product certifications | CE, FCC, cULus, GOST |
| Maximum supply current | 3 A |
| Mounting mode | by clips |
| Control type | by software |
| Communication network type | Universal Logic Plug on 2-port RJ45, Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP10/100 Mbit/s on 2-port RJ45 |
| Depth | 71 mm |
| Width | 72 mm |
| Mounting support | 35 mm DIN rail |
| Standards | IEC 60950, IEC 60947-6-2, UL 508, UL 60950 |
| Connections - terminals | RJ45 connector |
| Environment | |
| Vibration frequency | 5-8.4 Hz |
| Relative humidity | 5-85 % |
| Ambient air temperature for storage | -40-85 °C |
| Shock resistance | 1000 m/s² |
| IP degree of protection | front panel: IP4X, other parts: IP3x, connectors: IP2X |
| Pollution degree | 3 |
| Ambient air temperature for operation | -20-70 °C |
| Flame retardance | V0 conforming to IEC 60695-2-11, V0 conforming to IEC 60947-1, V0 conforming to UL 94 |
