Terminal extensions, ComPacT NSX 100/160/250 DC PV, right angle, set of 2 parts

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Manufacturer: Schneider Electric

SKU: LV429250

GTIN: 3606480386930

Catalog

User guide

Environmental Disclosure

Full Description

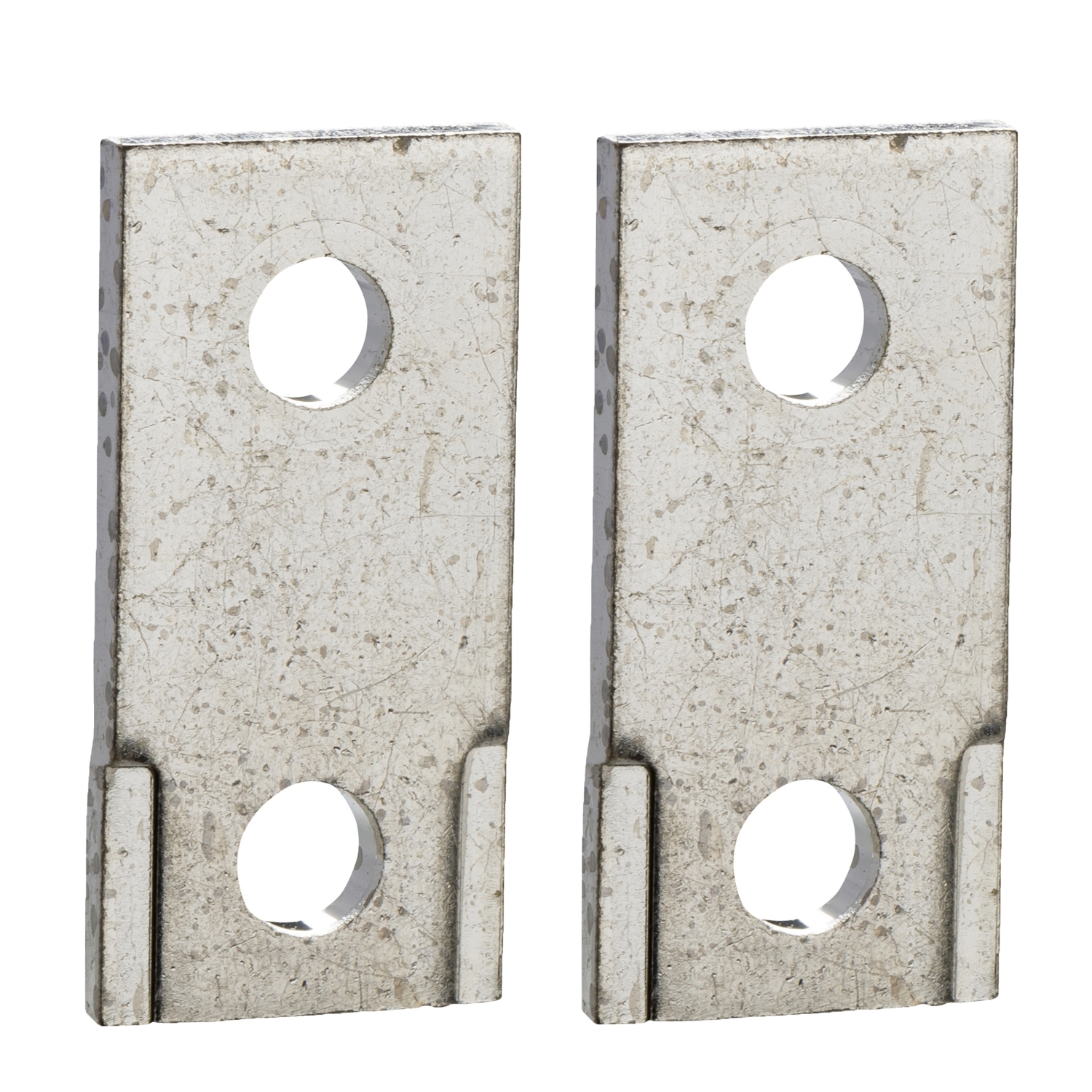

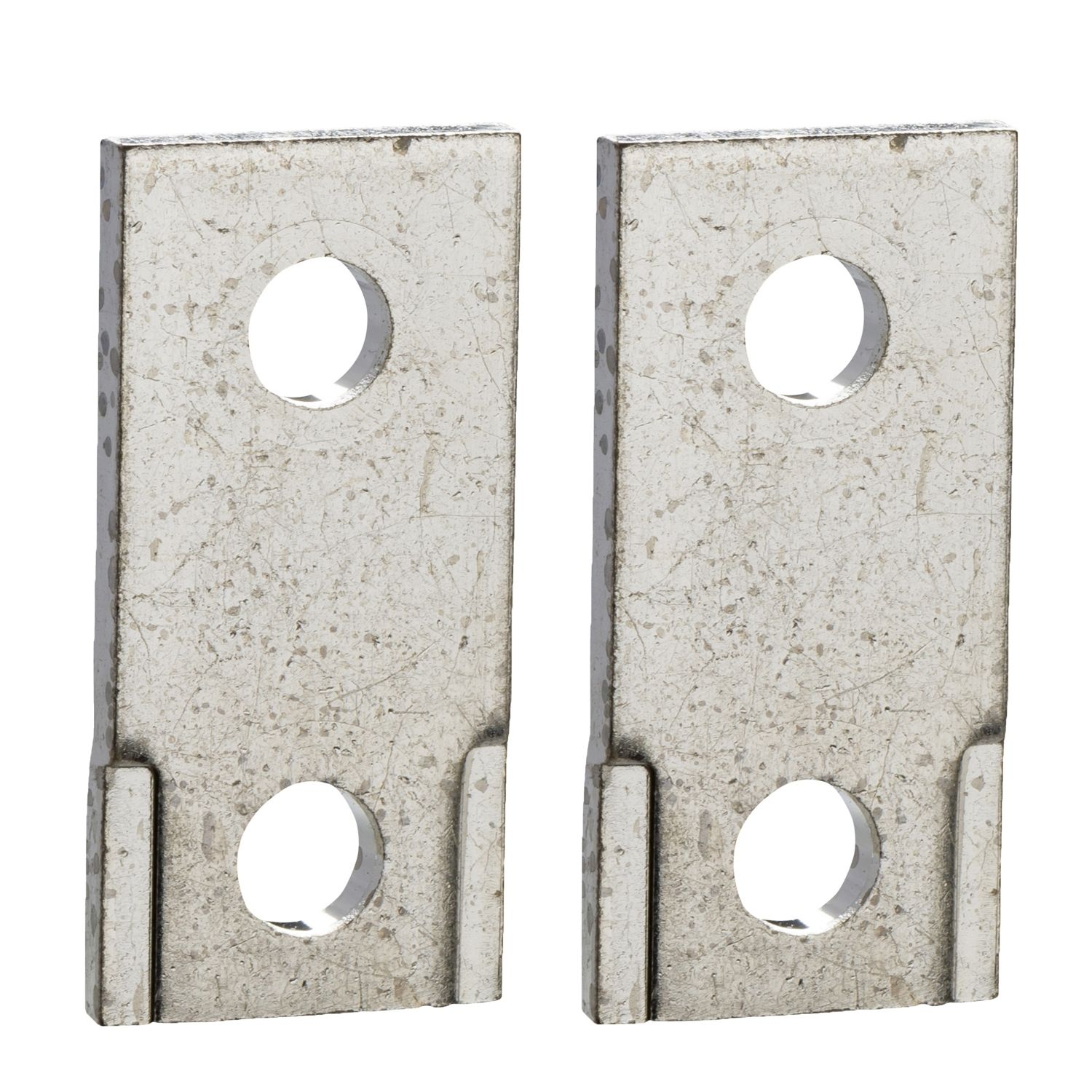

These accessories are right angle terminal extensions for Compact NSX 100/160/250. These terminal extensions have anti-rotation ribs and can be attached to the standard terminals. The rated current is up to 250 A. These terminal extensions are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 2 parts.

Old price: $34.87 inc GST

Price: $23.33 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Device short name	right angle terminal extension
Mounting position	right-angled
Quantity per set	2
Poles description	2P
Range	ComPacT
Product or component type	terminal extension
Accessory / separate part category	connection accessory
Range compatibility	ComPact ComPacT NSX DC PV NSX250 DC PV, ComPact ComPacT NSX DC PV NSX160 DC PV, ComPact ComPacT NSX DC PV NSX100 DC PV
Breaking capacity code	S
Range of product	ComPact NSX100...250 DC PV, ComPacT NSX100...250 DC PV new generation
Complementary
[In] rated current	250-250 A
Connection pitch	35 mm
