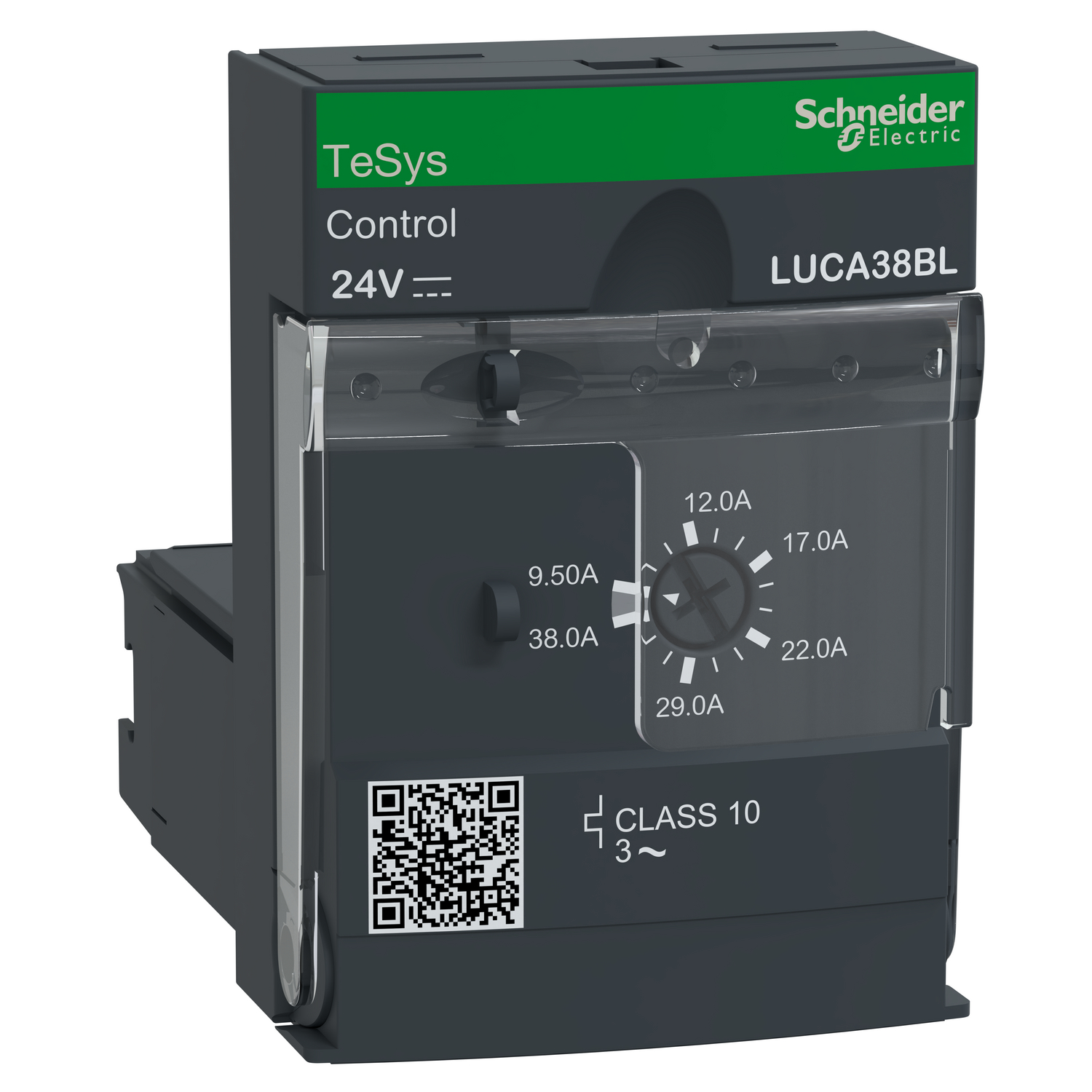

TeSys U standard control unit to be inserted in power bases LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 18.5kW@400V. It provides full protection to motors with a rated current Ir 9.5-38A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LUCA |
| Load type | 3-phase motor - cooling: self-cooled |
| Device application | motor protection, motor control |
| Network frequency | 40...60 Hz |
| Product specific application | basic protection requirements for motor starters: overload and short-circuit |
| Product compatibility | reversing contactor breaker LU2B38BL, power base LUB380, power base LUB38 |
| Tripping threshold | 14.2 x Ir +/- 20 % |
| Function available | manual reset, earth fault protection, protection against overload and short-circuit, protection against phase failure and phase imbalance |
| Utilisation category | AC-43 |
| Range | TeSys |
| Motor power kW | 22 kW at 690 V AC 50/60 Hz, 18.5 kW at 500 V AC 50/60 Hz, 18.5 kW at 400...440 V AC 50/60 Hz |
| Thermal overload class | class 10 - frequency limit: 40-60 Hz - temperature compensation: -25-70 °C conforming to UL 508, class 10 - frequency limit: 40-60 Hz - temperature compensation: -25-70 °C conforming to IEC 60947-6-2 |
| Product name | TeSys Ultra |
| Product or component type | standard control unit |
| Thermal protection adjustment range | 9.5-38 A |
| Phase failure sensitivity | yes |
| Range of product | TeSys Ultra |
| [Ue] rated operational voltage | 690 V AC |
| [Uc] control circuit voltage | 24 V DC |
| Complementary | |
| Heat dissipation | 3-3 W for control circuit with LUB38 |
| Depth | 60 mm |
| Safe separation of circuit | 400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1, 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1 |
| Width | 45 mm |
| Operating time | 70 ms closing with LUB38 for control circuit, 35 ms opening with LUB38 for control circuit |
| Control circuit voltage limits | 14.5 V for DC circuit 24 V drop-out, 20...27 V for DC circuit 24 V in operation |
| Compatibility code | LUCA |
| [Ui] rated insulation voltage | 600 V conforming to CSA C22.2 No 60947-4-1, 600 V conforming to UL 60947-4-1, 690 V conforming to IEC 60947-6-2 |
| Typical current consumption | 80 mA at 24 V DC I rms sealed with LUB38, 220 mA at 24 V DC I maximum while closing with LUB38 |
| Standards | CSA C22.2 No 60947-4-1, with phase barrier, UL 60947-4-1, with phase barrier, IEC 60947-6-2, EN 60947-6-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-6-2 |
| Fixing mode | plug-in (front face) |
| Net weight | 0.135 kg |
| Height | 66 mm |
| Product certifications | EAC (pending), CCC (pending), CSA, UL, CE |
| Environment | |
| Resistance to fast transients | 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4, 2 kV class 3 serial link conforming to IEC 61000-4-4 |
| Immunity to radioelectric fields | 10 V conforming to IEC 61000-4-6 |
| Fire resistance | 650 °C conforming to IEC 60695-2-12, 960 °C parts supporting live components conforming to IEC 60695-2-12 |
| Operating altitude | 2000 m |
| Resistance to electrostatic discharge | 8 kV level 4 on contact conforming to IEC 61000-4-2, 8 kV level 3 in open air conforming to IEC 61000-4-2 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP40 front panel outside connection zone conforming to IEC 60947-1, IP20 other faces conforming to IEC 60947-1, IP20 front panel and wired terminals conforming to IEC 60947-1 |
| Immunity to voltage dips | 70 % / 500 ms conforming to IEC 61000-4-11 |
| Immunity to microbreaks | 3 ms |
| Vibration resistance | 4 gn, 5-300 Hz, power poles closed conforming to IEC 60068-2-6, 2 gn, 5-300 Hz, power poles open conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn power poles closed conforming to IEC 60068-2-27, 10 gn power poles open conforming to IEC 60068-2-27 |
| Resistance to radiated fields | 10 V/m 3 conforming to IEC 61000-4-3 |
| Ambient air temperature for operation | -25-70 °C |
