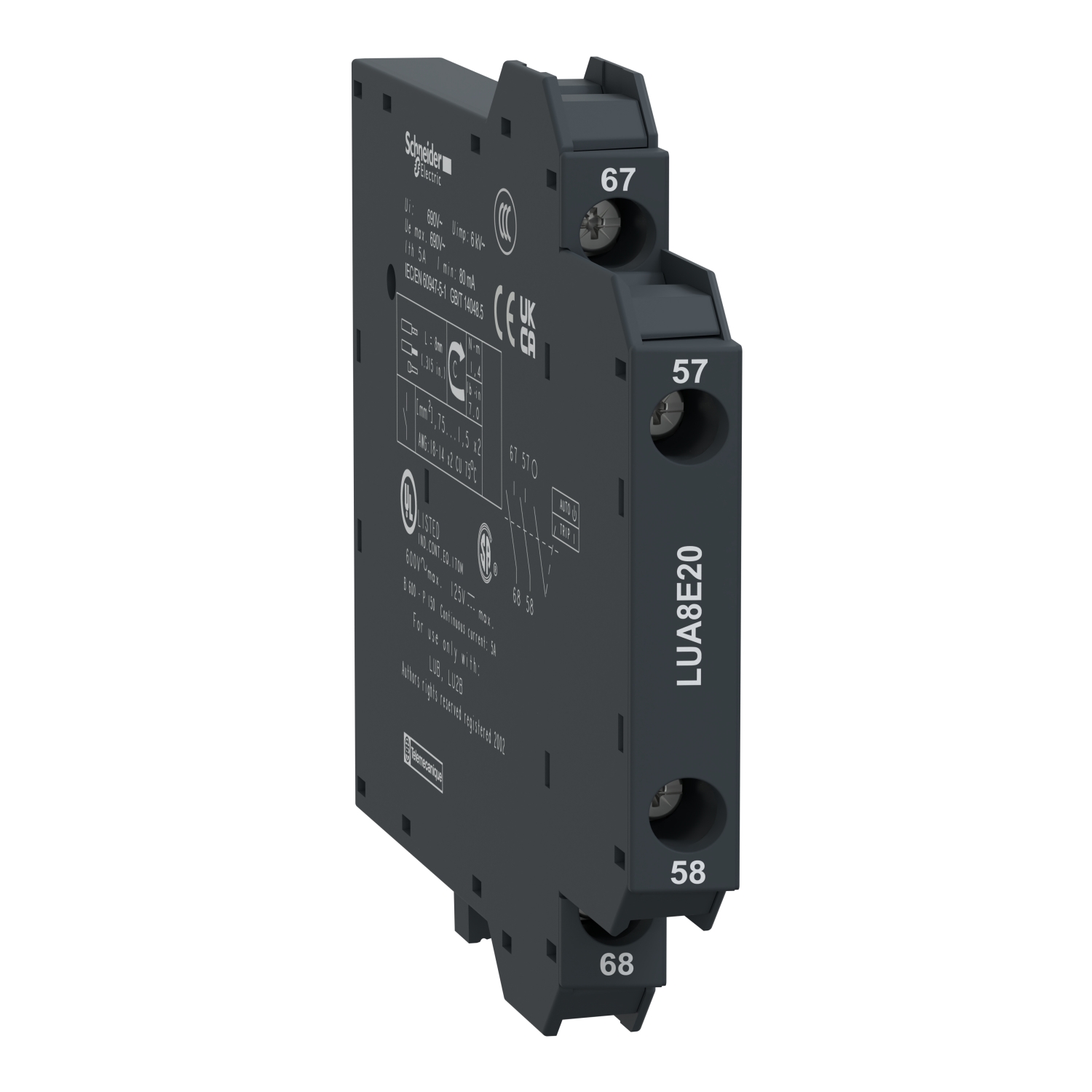

Auxiliary contact, TeSys Ultra, 2NO, 690VAC/DC, for Start-stop signalling, Screw clamp terminals

Auxiliary signaling contact block for TeSys U starter controllers

To be inserted in the provided location of the power base

Modular, plug & play structure helps you to perform quick maintenance

Direct access to detailed information for every motor starter of your installation

Advanced motor management system

Manufacturer: Schneider Electric

SKU: LUA8E20

GTIN: 785901291954

PDF

Image of product

Instruction sheet

Declaration of conformity

Catalog

Full Description

TeSys U auxiliary signaling contact block for TeSys U starter controllers. It provides 2NO contacts for open/close status (OF contact), rated up to 5A 250V AC/DC. To be clipped on the left-hand side of the power base. Green Premium compliant (RoHS/REACh).

Old price: $125.18 inc GST

Price: $90.44 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	auxiliary contact
Range of product	TeSys Ultra
Range	TeSys
Device short name	LUA8
Complementary
Auxiliary contact composition	2 NO
[Ue] rated operational voltage	690 V AC, 690 V DC
[Ith] conventional free air thermal current	5 A
Net weight	0.048 kg
Minimum switching current	80 mA
Minimum switching voltage	17 V
Signalling function	start-stop
Connections - terminals	screw clamp terminals
Compatibility code	LUA8
Contractual warranty
Warranty	18
