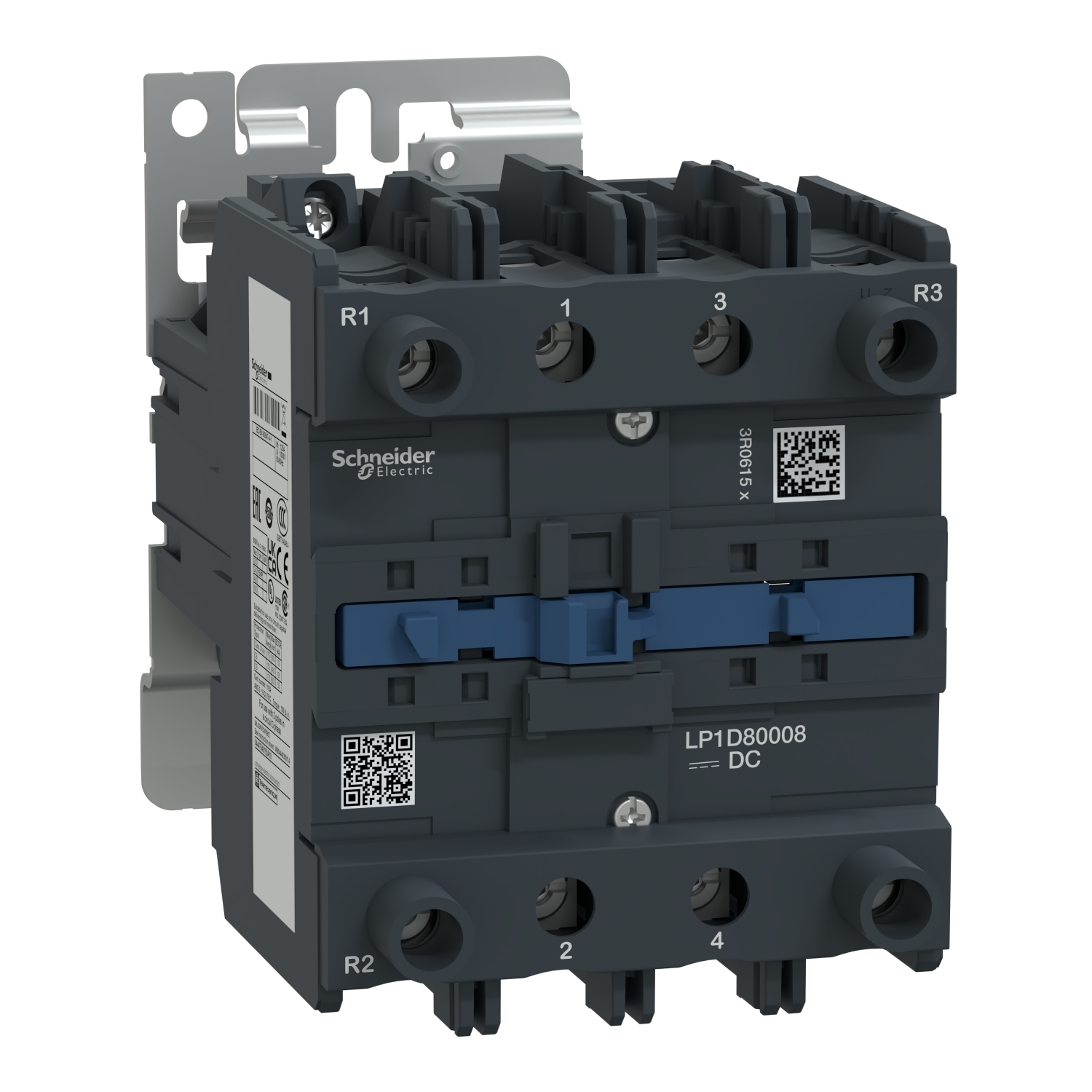

Contactor, TeSys D, TeSys Deca, 4P(2NO+2NC), AC-1, 440V, 125A, 220V DC coil

Manufacturer: Schneider Electric

SKU: LP1D80008MW

GTIN: 3389110228458

Catalog

Instruction sheet

Environmental Disclosure

Old price: $1,665.40 inc GST

Price: $661.00 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Deca contactor, 4P(2NO/2NC) for category AC-1 applications up to 125A @440V. It provides with 220V DC wide range coil, with no auxiliary contacts, power and control connections by screw clamp terminals. It procures with 10 Mcycles mechanical durability and 0.8 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 96mm x 196mm (H x W x D), mounting on rail or plate. Multi standards certified(UL,LROS,CSA,CCC,EAC,UKCA,CB,DNV-GL,RINA,BV).

Products specifications

Attribute name	Attribute value
Main
[Ie] rated operational current	125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category	AC-1
[Uc] control circuit voltage	220 V DC
Device short name	LP1D
Range	TeSys
Range of product	TeSys Deca
Poles description	4P
Product or component type	contactor
Contactor application	resistive load
[Ue] rated operational voltage	power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code	LP1D
Electrical durability	0.8 Mcycles 125 A AC-1 at Ue <= 440 V
Associated fuse rating	160 A gG at <= 690 V coordination type 2 for power circuit, 200 A gG at <= 690 V coordination type 1 for power circuit
Control circuit type	DC wide range
Protective cover	without
[Ui] rated insulation voltage	power circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Overvoltage category	III
Coil technology	without built-in suppressor module
Average impedance	0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole	12.5 W AC-1
[Icw] rated short-time withstand current	990 A 40 °C - 1 s for power circuit, 640 A 40 °C - 10 s for power circuit, 320 A 40 °C - 1 min for power circuit, 135 A 40 °C - 10 min for power circuit
Mechanical durability	10 Mcycles
Tightening torque	control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 12 N.m - on connector hexagonal screw head 4 mm, power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Operating time	20...35 ms closing, 6...20 ms opening
Time constant	75 ms
Irms rated making capacity	1100 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity	1100 A at 440 V for power circuit conforming to IEC 60947
Pollution degree	3
Safety reliability level	B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits	0.75...1.2 Uc (-40-55 °C):operational DC, 0.1...0.3 Uc (-40-55 °C):drop-out DC
[Ith] conventional free air thermal current	125 A (at 60 °C) for power circuit
Inrush power in W	22-22 W (at 20 °C)
Maximum operating rate	3600 cyc/h 60 °C
Connections - terminals	control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-25 mm² - cable stiffness: solid, power circuit: connector 1 4-50 mm² - cable stiffness: solid, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition	2 NO + 2 NC
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947
Hold-in power consumption in W	22-22 W at 20 °C
Contact compatibility	M4
Mounting support	plate, rail
Environment
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	shocks contactor closed (10 Gn for 11 ms) , shocks contactor open (8 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
Standards	UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height	127 mm
Permissible ambient air temperature around the device	60-70 °C with derating, -40-60 °C
Operating altitude	0...3000 m
Net weight	2.91 kg
Product certifications	LROS (Lloyds register of shipping), BV, RINA, DNV-GL, CB, UKCA, EAC, CCC, CSA, UL
IP degree of protection	IP20 front face conforming to IEC 60529
Depth	196 mm
Width	96 mm
Flame retardance	V1 conforming to UL 94
