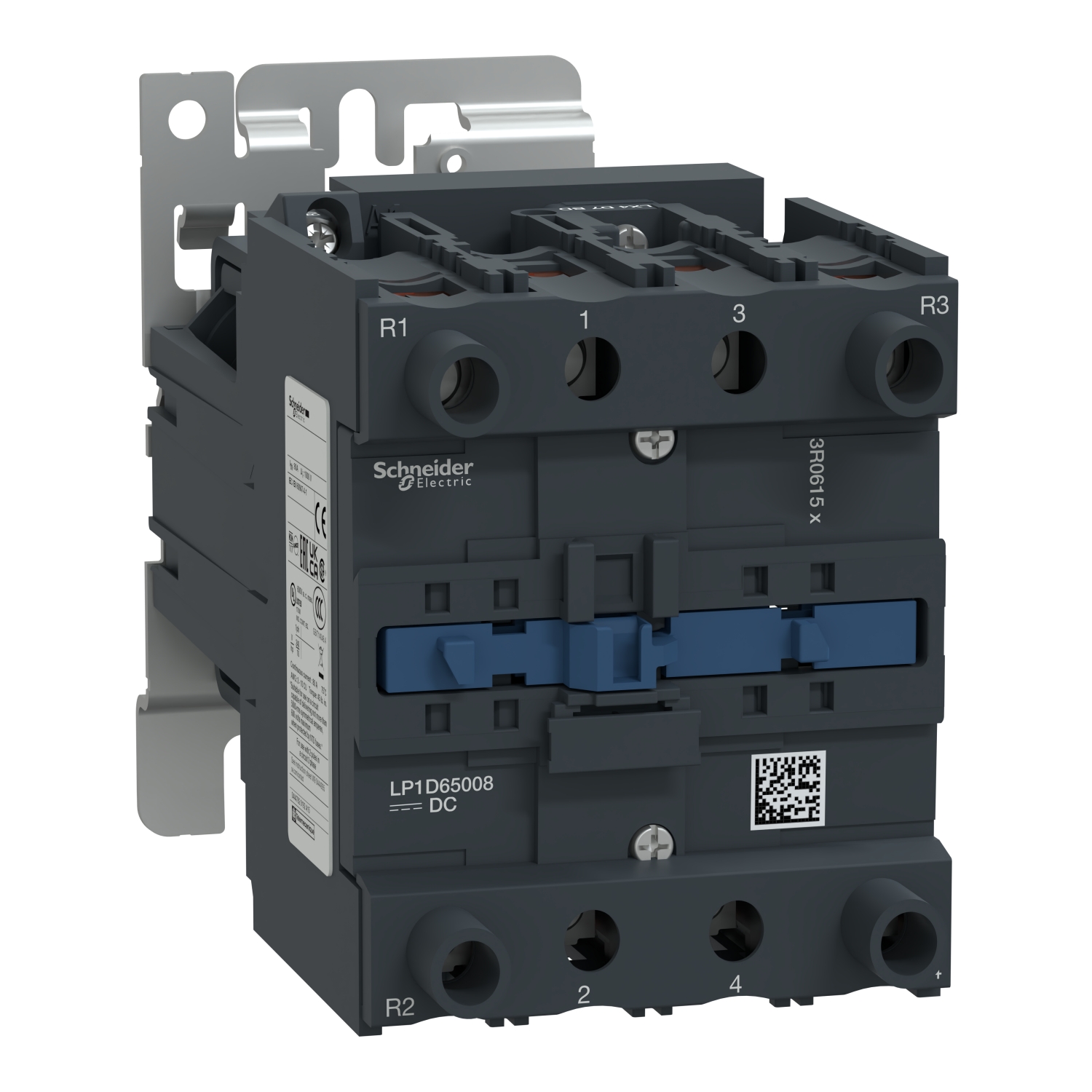

Contactor, TeSys Deca, 4P(2NO+2NC),AC-1, <=440V, 80A,24V DC coil, screw clamp terminal

Manufacturer: Schneider Electric

SKU: LP1D65008BD

GTIN: 3389110234251

Catalog

Instruction sheet

Environmental Disclosure

Old price: $1,357.40 inc GST

Price: $538.75 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 80A/690V AC-1. It provides a 24V DC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, front mounting auxiliary contact blocks can be added (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Products specifications

Attribute name	Attribute value
Main
[Ie] rated operational current	80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category	AC-1
[Uc] control circuit voltage	24 V DC
Device short name	LP1D
Range	TeSys
Range of product	TeSys Deca
Poles description	4P
Product or component type	contactor
Contactor application	resistive load
[Ue] rated operational voltage	power circuit: <= 1000 V AC 25...400 Hz
Complementary
Compatibility code	LP1D
Electrical durability	1.5 Mcycles 80 A AC-1 at Ue <= 440 V
Associated fuse rating	125 A gG at <= 690 V coordination type 2 for power circuit, 125 A gG at <= 690 V coordination type 1 for power circuit
Control circuit type	DC DC standard
Protective cover	without
[Ui] rated insulation voltage	power circuit: 600 V UL certified, power circuit: 600 V CSA certified, power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage category	III
Coil technology	built-in bidirectional peak limiting diode suppressor
Average impedance	1.5 mOhm - Ith 80 A 50 Hz for power circuit
Power dissipation per pole	9.6 W AC-1
[Icw] rated short-time withstand current	900 A 40 °C - 1 s for power circuit, 520 A 40 °C - 10 s for power circuit, 260 A 40 °C - 1 min for power circuit, 110 A 40 °C - 10 min for power circuit
Mechanical durability	10 Mcycles
Tightening torque	control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 5 N.m - on screw clamp terminals - cable 1-25 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, power circuit: 8 N.m - on screw clamp terminals - cable 25-35 mm² hexagonal screw head 4 mm
Operating time	12...26 ms closing, 4...19 ms opening
Time constant	75 ms
Irms rated making capacity	1000 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity	1000 A at 440 V for power circuit conforming to IEC 60947
Pollution degree	3
Safety reliability level	B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits	0.85...1.1 Uc (-40-55 °C):operational DC, 0.1...0.3 Uc (-40-55 °C):drop-out DC
[Ith] conventional free air thermal current	80 A (at 60 °C) for power circuit
Inrush power in W	22-22 W (at 20 °C)
Maximum operating rate	3600 cyc/h 60 °C
Connections - terminals	control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: solid, power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: solid, power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: flexible without cable end
Pole contact composition	2 NO + 2 NC
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Hold-in power consumption in W	22-22 W at 20 °C
Contact compatibility	M3
Mounting support	rail, plate
Environment
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	vibrations contactor closed (3 Gn, 5...300 Hz) , vibrations contactor opened (2 Gn, 5...300 Hz) , shocks contactor closed (10 Gn for 11 ms) , shocks contactor open (8 Gn for 11 ms)
Standards	UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height	127 mm
Permissible ambient air temperature around the device	60-70 °C with derating, -40-60 °C
Operating altitude	0...3000 m
Net weight	2.22 kg
Product certifications	LROS (Lloyds register of shipping), BV, RINA, DNV-GL, CB, UKCA, EAC, CCC, CSA, UL
IP degree of protection	IP20 front face conforming to IEC 60529
Depth	182 mm
Width	85 mm
Flame retardance	V1 conforming to UL 94
