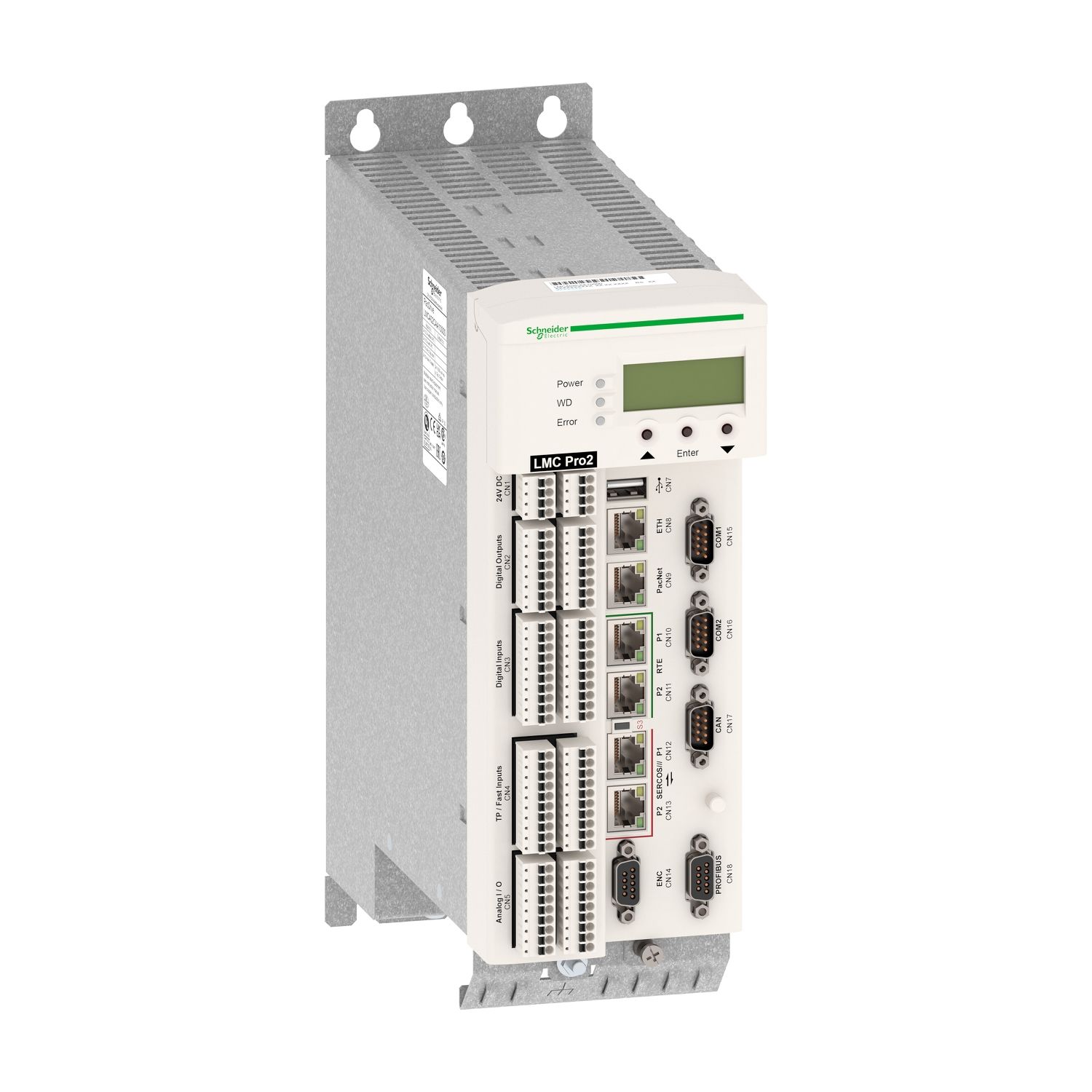

Motion controller LMC402 16 axis - Acc kit - Basic

Manufacturer: Schneider Electric

SKU: LMC402CAA10000

GTIN: 3606485458304

PDF

Image of product

User guide

Declaration of conformity

Catalog

Full Description

This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 16 axis, 20 discrete inputs, 4 for interrupt input and 16 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 250mA and a power consumption of 36W. It is an IP20 rated product. Its dimensions are 100mm (width) x 243mm (depth) x 310mm (height). It weighs 3.5kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.

Availability: Out of stock

Old price: $11,622.60 inc GST

Price: $16,736.54 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	motion controller
Range of product	PacDrive 3
Complementary
Anti bounce filtering	1 ms or 5 ms configurable digital input, 100 µs touch probe input, 0.1 ms or 1 ms configurable interrupt input
Input impedance	100000 Ohm for analog input, 500 Ohm
Discrete input voltage	0...6 V, 20...33 V
Programming language	FBD (function block diagram), CFC (continuous function chart), SFC (sequential function chart), ST (structured text), IL (instruction list), LD (ladder)
Discrete input voltage type	DC
Net weight	3.5 kg
Analogue input number	2
Memory type	256 kB NVRAM, 1 GB RAM DDR3L
Integrated connection type	2 Ethernet port, connector RJ45 for protocol Sercos, 1 CAN port, connector SUB-D 9 for protocol CANopen, 1 USB port, connector USB type A, 2 Ethernet port, connector RJ45 for protocol RT-Ethernet (real-time), 1 Ethernet port, connector RJ45 for protocol PacNet, 1 port, connector SUB-D 9 for protocol Profibus DP, 1 COM1 serial link, connector SUB-D 9 for protocol RS232, 1 COM2 serial link, connector SUB-D 9 for protocol RS422/RS485, 1 port, connector SUB-D 9 for master encoder, 1 Ethernet port, connector RJ45 for protocol Ethernet 10/100/1000BASE-T, FTP/HTTP
Discrete input current	5 mA for digital input, 5 mA for interrupt input, 5 mA for touch probe input
Width	100 mm
Depth	243 mm
Analogue input type	voltage analog input: - 10...10 V, current analog input: - 20...20 mA
Maximum leakage current	0.4 mA
Height	310 mm
Power consumption in W	36 W
Discrete output number	16 digital output, 2 analog output
Discrete output current	250 mA for digital output
[Us] rated supply voltage	24 V DC
Analogue input resolution	12 bits
Product compatibility	LMC402
Number of axis	16
Supply	power supply: 24 VDC, <1 A
Discrete input number	20 for digital input conforming to IEC 61131-2 Type 1, 4 for interrupt input conforming to IEC 61131-2 Type 1, 16 for touch probe input conforming to IEC 61131-2 Type 1
Maximum number of I/O expansion module	2
Environment
Product certifications	cULus, CE, EAC, CSA
Standards	IEC 61131-2, CSA C22.2 No 274, UL 508C, CSA C22.2 No 14
Vibration resistance	3.5 mm at 5-8.4 Hz, 10 m/s² at 8.4-150 Hz
Shock resistance	150 m/s² for 6 ms (operation) conforming to IEC 60721-3-3
Ambient air temperature for operation	5-55 °C
IP degree of protection	IP20 conforming to IEC 60529
Pollution degree	2 conforming to IEC 61131-2
Relative humidity	5-95 % without condensation
Contractual warranty
Warranty	18
