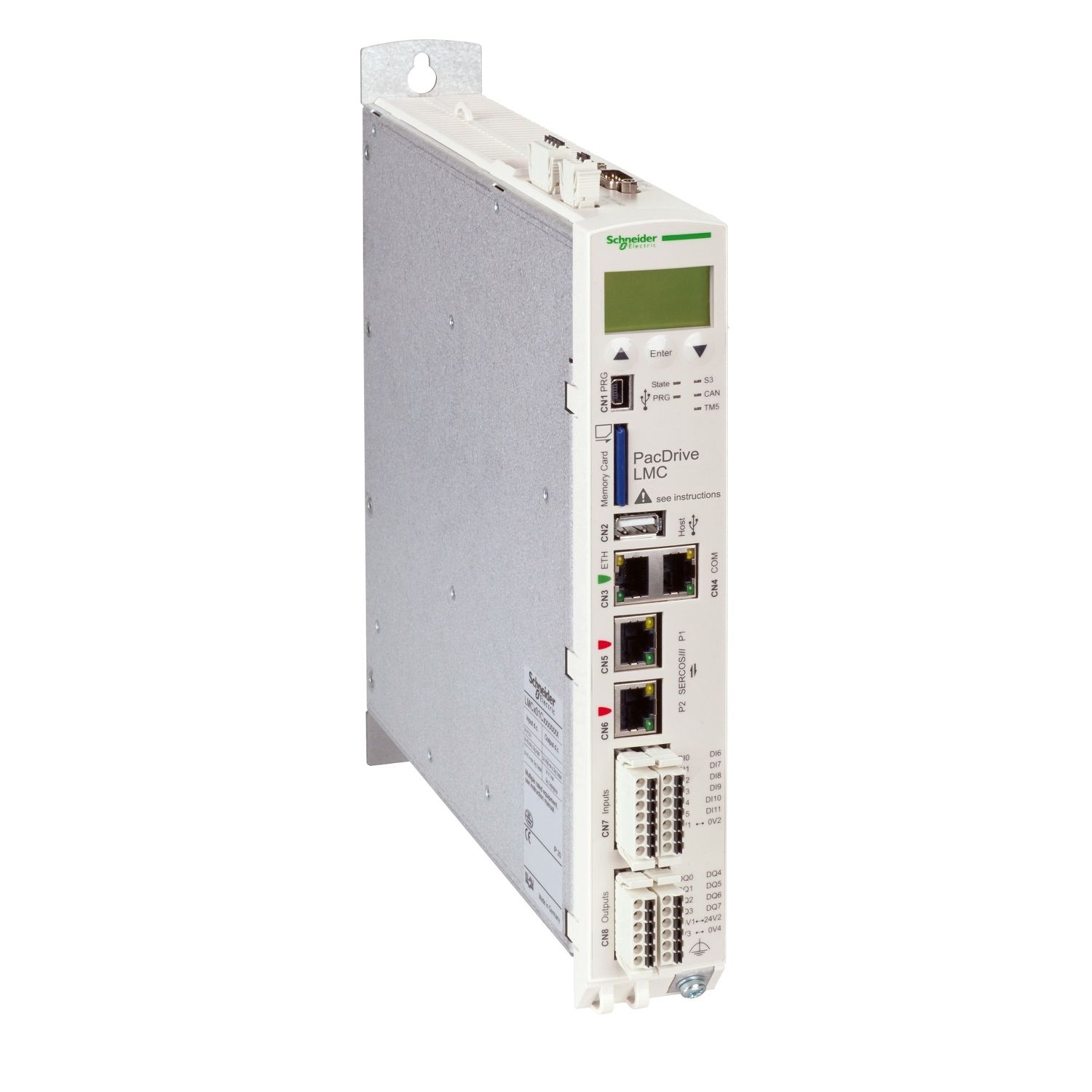

This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 12 axis, 8 discrete inputs, 4 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 500mA and a power consumption of 30W. It is an IP20 rated product. Its dimensions are 44mm (width) x 222mm (depth) x 270mm (height). It weighs 2.2kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | PacDrive 3 |
| Product or component type | motion controller |
| Complementary | |
| Maximum number of I/O expansion module | 1 |
| Discrete input number | 4 for touch probe input conforming to IEC 61131-2 Type 1, 8 for digital input conforming to IEC 61131-2 Type 1 |
| Supply | power supply: 24 VDC |
| Number of axis | 12 |
| Product compatibility | LMC212 |
| [Us] rated supply voltage | 24 V DC |
| Discrete output current | 500 mA for digital output |
| Discrete output number | 8 digital output |
| Power consumption in W | 30 W |
| Height | 270 mm |
| Maximum cable distance between devices | <50 m |
| Maximum leakage current | 0.5 mA |
| Depth | 222 mm |
| Width | 44 mm |
| Discrete input current | 4 mA for digital input |
| Integrated connection type | 1 USB port, connector USB type A, 1 CAN port, connector SUB-D 9 for protocol CANopen, 1 serial link, connector RJ45 for protocol RS232/RS485, 1 Ethernet port, connector RJ45 for master encoder, 1 Ethernet port, connector RJ45 for protocol Ethernet 10/100BASE-T, FTP/HTTP, 2 Ethernet port, connector RJ45 for protocol Sercos |
| Memory type | 128 kB NVRAM, 512 MB RAM DDR2 |
| Net weight | 2.2 kg |
| Discrete input voltage type | DC |
| Programming language | SFC (sequential function chart), CFC (continuous function chart), FBD (function block diagram), LD (ladder), IL (instruction list), ST (structured text) |
| Discrete input voltage | 15...30 V, - 3...5 V |
| Anti bounce filtering | 100 µs...4.29 s configurable interrupt input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable digital input |
| Environment | |
| Relative humidity | 5-95 % without condensation |
| Pollution degree | 2 conforming to IEC 61131-2 |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Ambient air temperature for operation | 5-55 °C |
| Operating altitude | 0...2000 m |
| Shock resistance | 150 m/s² for 6 ms (operation) conforming to EN/IEC 60721-3-3 |
| Vibration resistance | 10 m/s² at 8.4-150 Hz, 3.5 mm at 5-8.4 Hz |
| Standards | EN/IEC 61131-2, UL 508, CSA C22.2 No 14, CSA C22.2 No 142 |
| Product certifications | CSA, cULus, EAC, CE |
