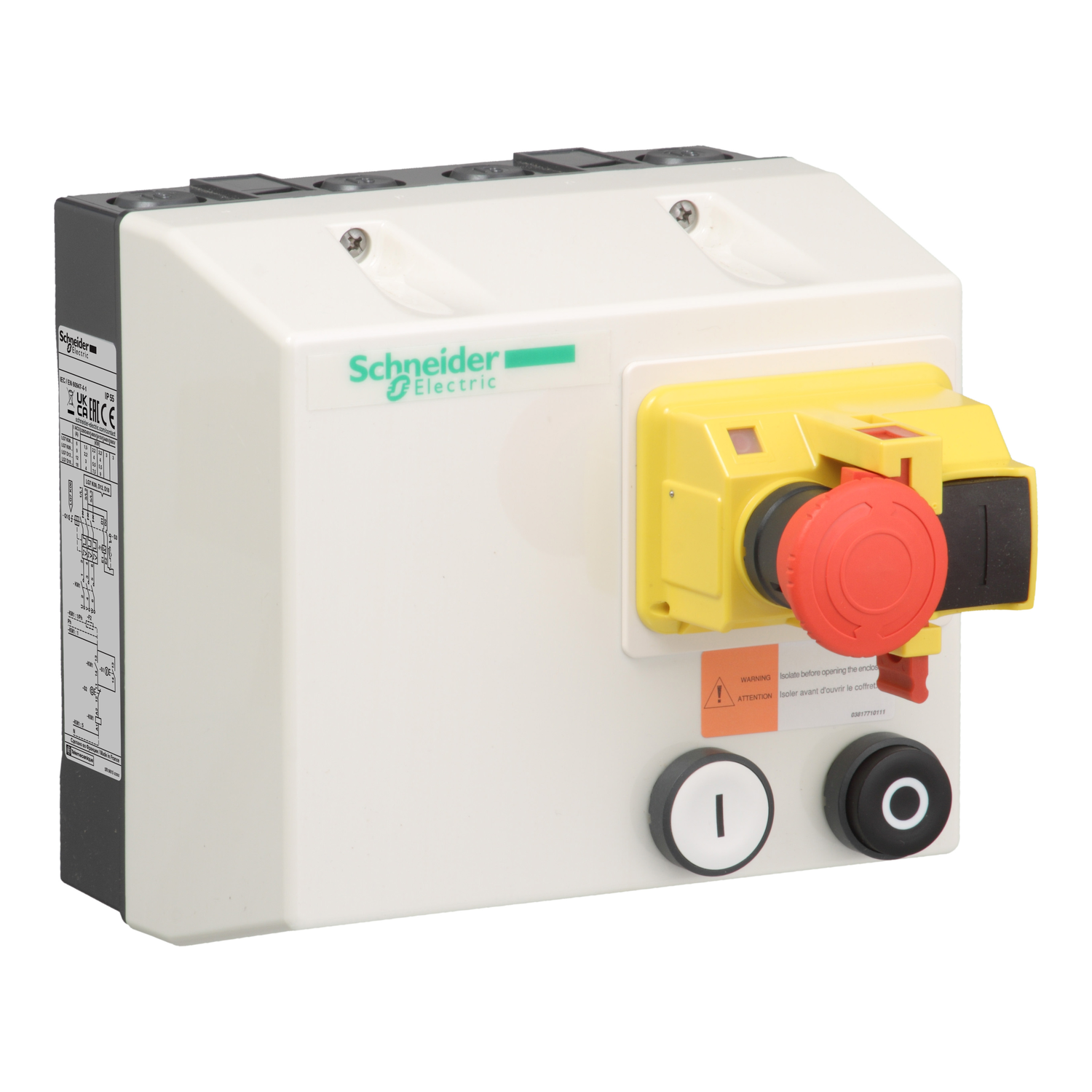

TeSys enclosed starter with contactor and thermal magnetic circuit breaker, for control of 3-phase motors 1.5kW@400V AC-3 in non reversing safety applications. Polycarbonate enclosure for surface mounting with screw fixing, 2 knock-outs for cable glands on top and bottom, ensuring IP55 protection. Equipped with a white pushbutton Start (I), a black pushbutton Stop (O), and a lockable emergency pushbutton Stop (mushroom head 1/4 turn) acting mechanically on the circuit breaker. It includes a control transformer 400/24V 50/60Hz with the primary connected between the power phases to supply the control circuit of a contactor LC1K with an isolated 24V 50/60Hz, and a thermal magnetic circuit breaker GV2ME with thermal setting range 2.5-4A, It conforms to IEC 60204-1 and IEC 60947-4-1, Environmental product (RoHS/REACh). It conforms to IEC 60204-1 and IEC 60947-4-1, Green Premium product (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LJ7K |
| Device application | safety |
| Range | TeSys |
| Motor power kW | 1.5 kW at 380/400 V AC 50 Hz |
| Control type | mushroom head push-button emergency stop red, push-button stop black O, push-button start white I |
| Utilisation category | AC-3 |
| Device composition | circuit-breaker, control transformer, contactor |
| Product name | TeSys LJ |
| Product or component type | enclosed DOL starter |
| Thermal protection adjustment range | 2.5-4 A |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Complementary | |
| Compatibility code | LJ7K |
| Height | 165 mm |
| Depth | 177 mm |
| Width | 175 mm |
| Cable entry number | 4 2 Pg 13 + 2 Pg 16 bottom, 4 2 Pg 13 + 2 Pg 16 top |
| Net weight | 2.27 kg |
| Environment | |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Environmental characteristic | standard environment |
| IK degree of protection | IK07 conforming to IEC 60529 |
| Material | polycarbonate |
| Standards | IEC 60204-1, IEC 60947-4-1 |
Only registered users can write reviews
Related products

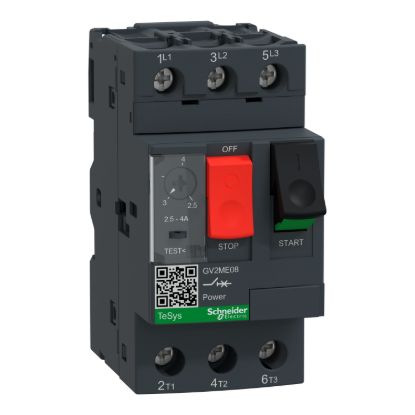

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, screw clamp terminals, button control
