Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

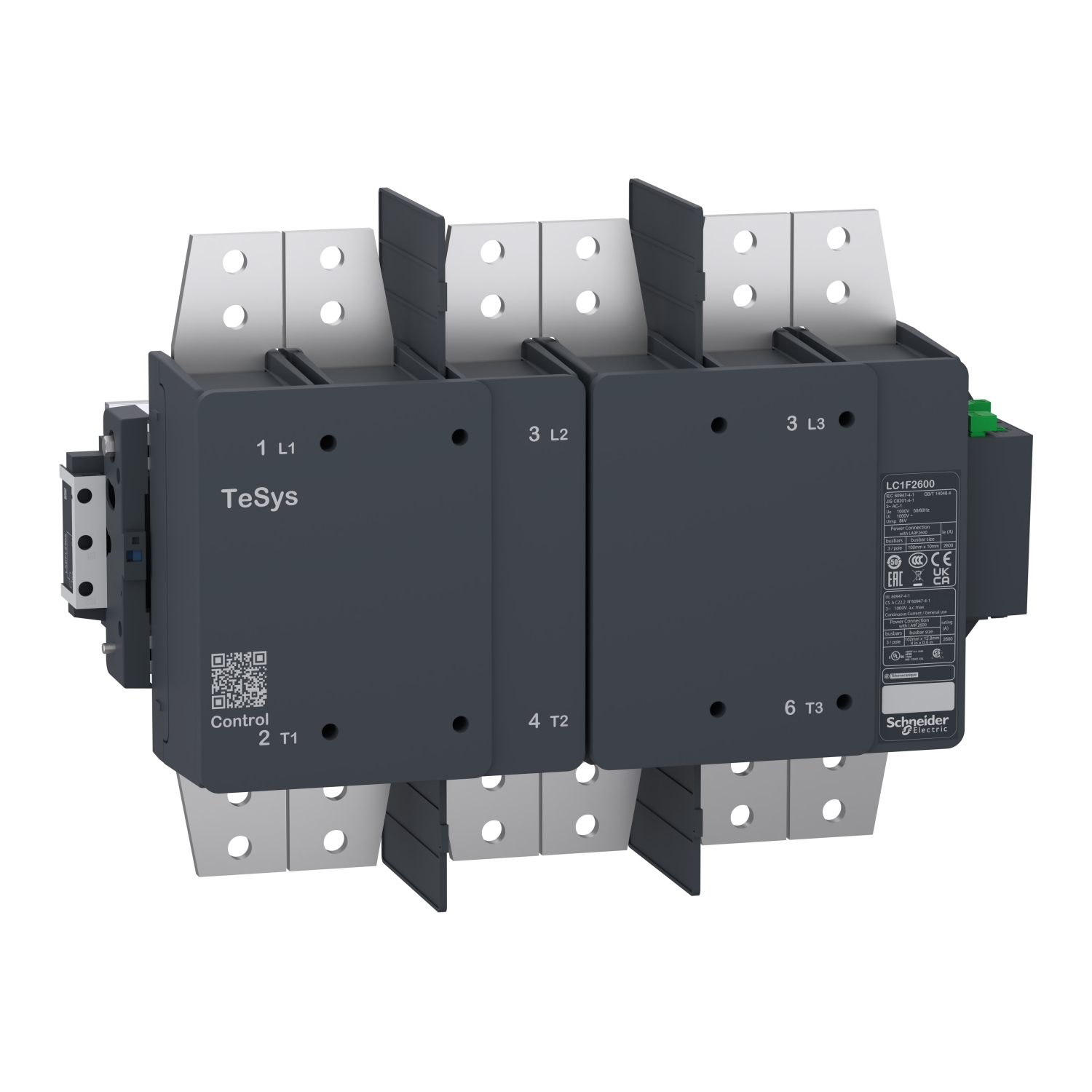

| Device short name | LC1F |
| Poles description | 3P |
| [Ie] rated operational current | 2600 A (at <60 °C) AC-1 |
| Utilisation category | AC-1 |
| Range | TeSys |
| Product or component type | contactor |
| Contactor application | resistive load |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz |
| Range of product | TeSys F |
| [Uc] control circuit voltage | 100...250 V DC, 100...250 V AC 50/60 Hz |
| Complementary | |
| Heat dissipation | 16-20 W |
| [Icw] rated short-time withstand current | 4000 A 40 °C - 10 min, 6000 A 40 °C - 3 min, 7000 A 40 °C - 1 min, 9000 A 40 °C - 30 s, 12000 A 40 °C - 10 s |
| [Ui] rated insulation voltage | 1000 V conforming to UL 60947-4-1, 1000 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Tightening torque | control circuit: 0.5-0.6 N.m, power circuit: 52.2-63.8 N.m |
| Hold-in power consumption in VA | 21.1-24.5 VA, 50/60 Hz cos phi 0.5 (at 20 °C) |
| Compatibility code | LC1F |
| Inrush power in W | 1300-2400 W (at 20 °C) |
| Mechanical durability | 0.5 Mcycles |
| Input voltage limits | 11...30 V on-state for PLC input, 0...5 V off-state for PLC input |
| Maximum operating rate | 600 cyc/h 55 °C |
| Operating time | 20...28 ms opening, 54...88 ms closing |
| Input compatibility | PLC 24 V DC conforming to IEC 61131-2 Type 2 |
| Pole contact composition | 3 NO |
| Connections - terminals | control circuit: screw clamp terminals 1 cable(s) 0.25-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 0.2-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 0.2-2.5 mm²solid, power circuit: bar 3 cable(s) - busbar cross section: 100 x 10 mm |
| Inrush power in VA | 1100-2300 VA, 50/60 Hz cos phi 0.5 (at 20 °C) |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Associated fuse rating | 2500 A gG at <= 440 V |
| Irms rated making capacity | 3900 A conforming to IEC 60947-4-1 |
| Rated breaking capacity | 3900 A conforming to IEC 60947-4-1 |
| Hold-in power consumption in W | 14-18 W at 20 °C |
| Control circuit type | DC electronic, AC at 50/60 Hz electronic |
| Mounting support | plate |
| Standards | UL 60947-4-1, JIS C8201-4-1, EN/IEC 60947-1, EN/IEC 60947-4-1 |
| Control circuit voltage limits | drop-out: 0...51 V DC (at 55 °C), drop-out: 0...65 V AC 50/60 Hz (at 55 °C), operational: 85...275 V AC/DC (at 55 °C) |
| [Ith] conventional free air thermal current | 2600 A (at 40 °C) |
| Average impedance | 0.1 mOhm - Ith 2600 A 50 Hz |
| Power dissipation per pole | 250 W AC-1 |
| Product certifications | EAC, UKCA, UL, CCC, CB Scheme |
| Environment | |
| Permissible ambient air temperature around the device | -40-60 °C |
| Depth | 251 mm |
| Width | 519 mm |
| Operating altitude | 3000 m without derating |
| Ambient air temperature for storage | -60-80 °C |
| Net weight | 36 kg |
| Ambient air temperature for operation | -5-40 °C |
| Height | 382 mm |
