Contactor, TeSys D, 4P(2NO+2NC),AC-1 <=440V 80 A 220V AC 50/60Hz coil

    Previous Product
Next Product

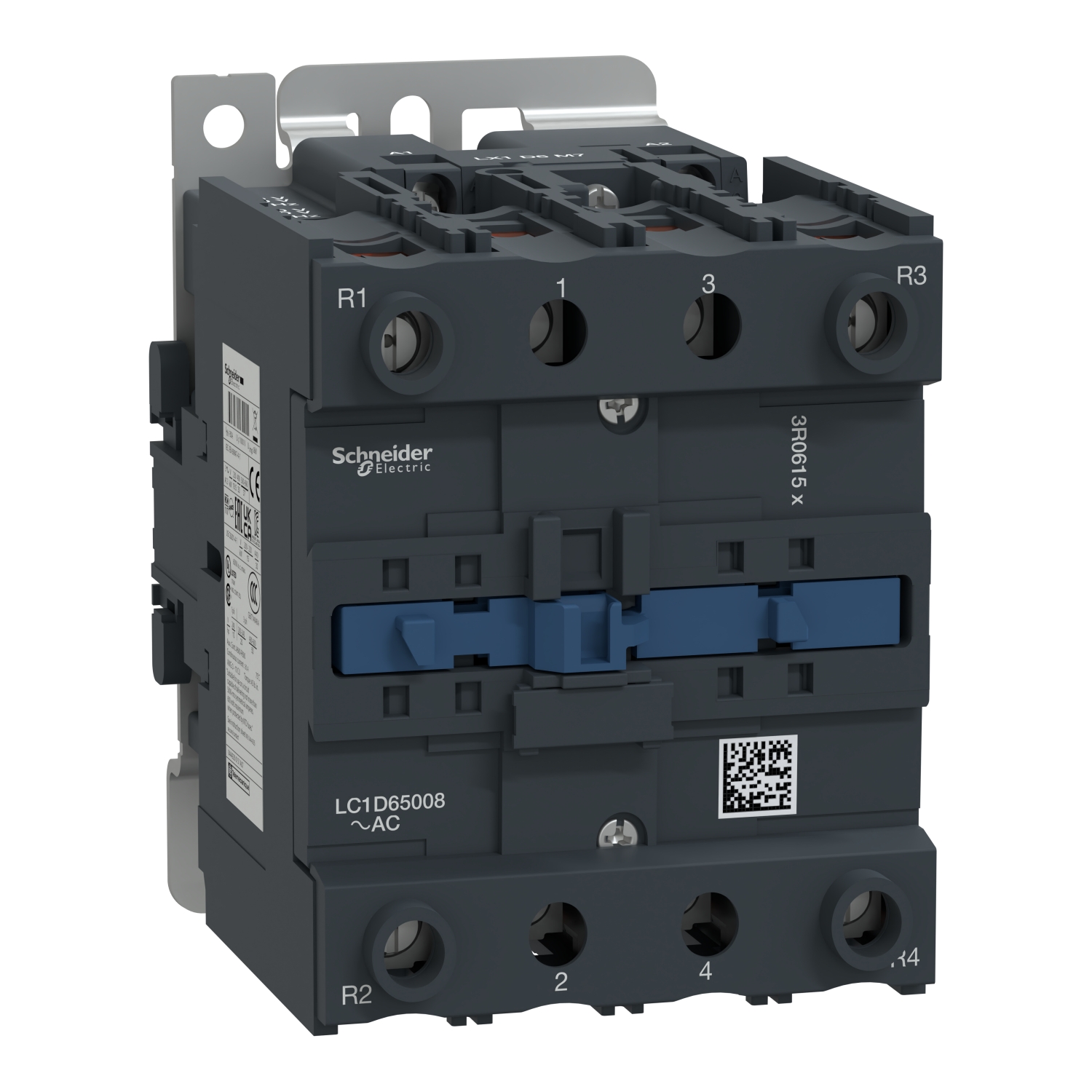

Picture of Contactor, TeSys D, 4P(2NO+2NC),AC-1 <=440V 80 A 220V AC 50/60Hz coil
Contactor, TeSys D, 4P(2NO+2NC),AC-1 <=440V 80 A 220V AC 50/60Hz coil
Manufacturer: Schneider Electric
SKU: LC1D65008M7
GTIN: 3389110231793
Catalog
Instruction sheet
Environmental Disclosure
Old price: $1,102.20 inc GST
$437.46 inc GST
Supported cards
Supported cards
TeSys Deca contactor, 4 poles (2NO/2NC),for load control applications in category AC-1. and for non-inductive load control applications up to 80A@60℃. It provides a 220V 50/60Hz standard AC coil,without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN).
