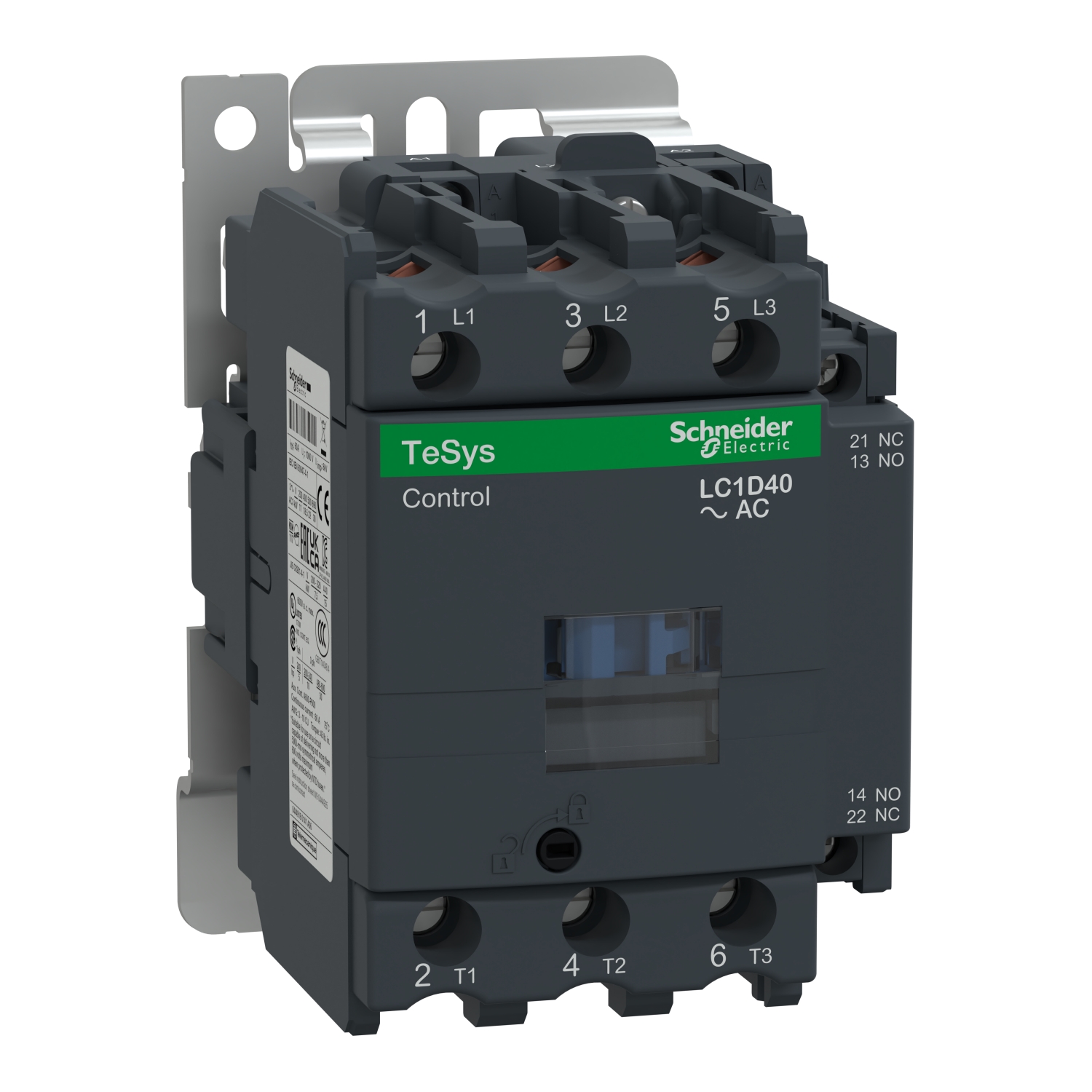

Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 40A,120V AC 50/60Hz coil, screw clamp terminals

Manufacturer: Schneider Electric

SKU: LC1D40G7

GTIN: 3389110948561

Environmental Disclosure

Instruction sheet

CAD

Old price: $532.40 inc GST

Price: $211.31 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3 (18.5kW@400V). It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (75mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Sustainability compliant. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Products specifications

Attribute name	Attribute value
Main
[Ie] rated operational current	40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category	AC-2, AC-1, AC-4, AC-3
[Uc] control circuit voltage	120 V AC 50/60 Hz
Device short name	LC1D
Range	TeSys
Range of product	TeSys Deca
Poles description	3P
Product or component type	contactor
Contactor application	motor control, resistive load
[Ue] rated operational voltage	power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code	LC1D
Associated fuse rating	80 A gG at <= 690 V coordination type 2 for power circuit, 80 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for control circuit conforming to IEC 60947-5-1
Control circuit type	AC at 50/60 Hz
Protective cover	with
[Ui] rated insulation voltage	power circuit: 690 V conforming to IEC 60947-1, control circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified, control circuit: 600 V UL certified, control circuit: 600 V CSA certified
Overvoltage category	III
Auxiliary contacts type	type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1
Coil technology	without built-in bidirectional peak limiting diode suppressor
Inrush power in VA	160-160 VA cos phi 0.75 (at 20 °C), 140-140 VA cos phi 0.75 (at 20 °C)
Auxiliary contact composition	1 NO + 1 NC
Average impedance	1.5 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole	2.4 W AC-3, 5.4 W AC-1
Minimum switching current	5 mA for control circuit
Non-overlap time	1.5 ms on energisation between NC and NO contacts, 1.5 ms on de-energisation between NC and NO contacts
Heat dissipation	4-5 W at 50/60 Hz for control circuit
Mechanical durability	6000000 cycles
Tightening torque	power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 8 mm, power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm, control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Minimum switching voltage	17 V for control circuit
Operating time	4...19 ms opening, 12...26 ms closing
Irms rated making capacity	800 A at 440 V for power circuit conforming to IEC 60947, 140 A AC for control circuit conforming to IEC 60947-5-1
Rated breaking capacity	800 A at 440 V for power circuit conforming to IEC 60947
Safety reliability level	B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits	0.85...1.1 Uc (60-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (60-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (60-60 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current	60 A (at 60 °C) for power circuit, 10 A (at 60 °C) for control circuit
Motor power hp	5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL, 5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA, 30 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to UL, 30 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to CSA, 30 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to UL, 30 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to CSA, 3 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL, 3 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA, 10 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to UL, 10 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to CSA, 10 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to UL, 10 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to CSA
Motor power kW	9 kW at 400 V AC 50/60 Hz (AC-4), 11 kW at 220...230 V AC 50/60 Hz (AC-3), 30 kW at 660...690 V AC 50/60 Hz (AC-3), 22 kW at 500 V AC 50/60 Hz (AC-3), 22 kW at 440 V AC 50/60 Hz (AC-3), 22 kW at 415 V AC 50/60 Hz (AC-3), 22 kW at 1000 V AC 50/60 Hz (AC-3), 18.5 kW at 380...400 V AC 50/60 Hz (AC-3)
Hold-in power consumption in VA	15-15 VA 60 Hz cos phi 0.3 (at 20 °C), 13-13 VA 50 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate	3600 cyc/h 60 °C
Connections - terminals	power circuit: screw clamp terminal 2 2.5-35 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminal 1 2.5-35 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminal 2 2.5-25 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminal 1 2.5-35 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminal 2 2.5-35 mm² - cable stiffness: solid with cable end, power circuit: screw clamp terminal 1 2.5-35 mm² - cable stiffness: solid with cable end, control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminal 2 1-2.5 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminal 1 1-2.5 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: solid without cable end
Pole contact composition	3 NO
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Insulation resistance	> 10 MOhm for control circuit
Mounting support	plate, rail
Environment
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor opened (2 Gn, 5...300 Hz) , shocks contactor closed (15 Gn for 11 ms) , shocks contactor opened (10 Gn for 11 ms)
Climatic withstand	conforming to IACS E10 exposure to damp heat
Standards	EN 60947-5-1, IEC 60947-5-1, EN 60947-4-1, CSA C22.2 No 14, IEC 60947-4-1, UL 508
Height	127 mm
Permissible ambient air temperature around the device	-40-70 °C at Uc, -5-60 °C
Operating altitude	3000 m without derating
Net weight	1.4 kg
Product certifications	DNV, GOST, CCC, BV, CSA, LROS (Lloyds register of shipping), RINA, GL, UL
IP degree of protection	IP2X conforming to VDE 0106, IP2X conforming to IEC 60529
Depth	119 mm
Width	75 mm
Flame retardance	V1 conforming to UL 94
