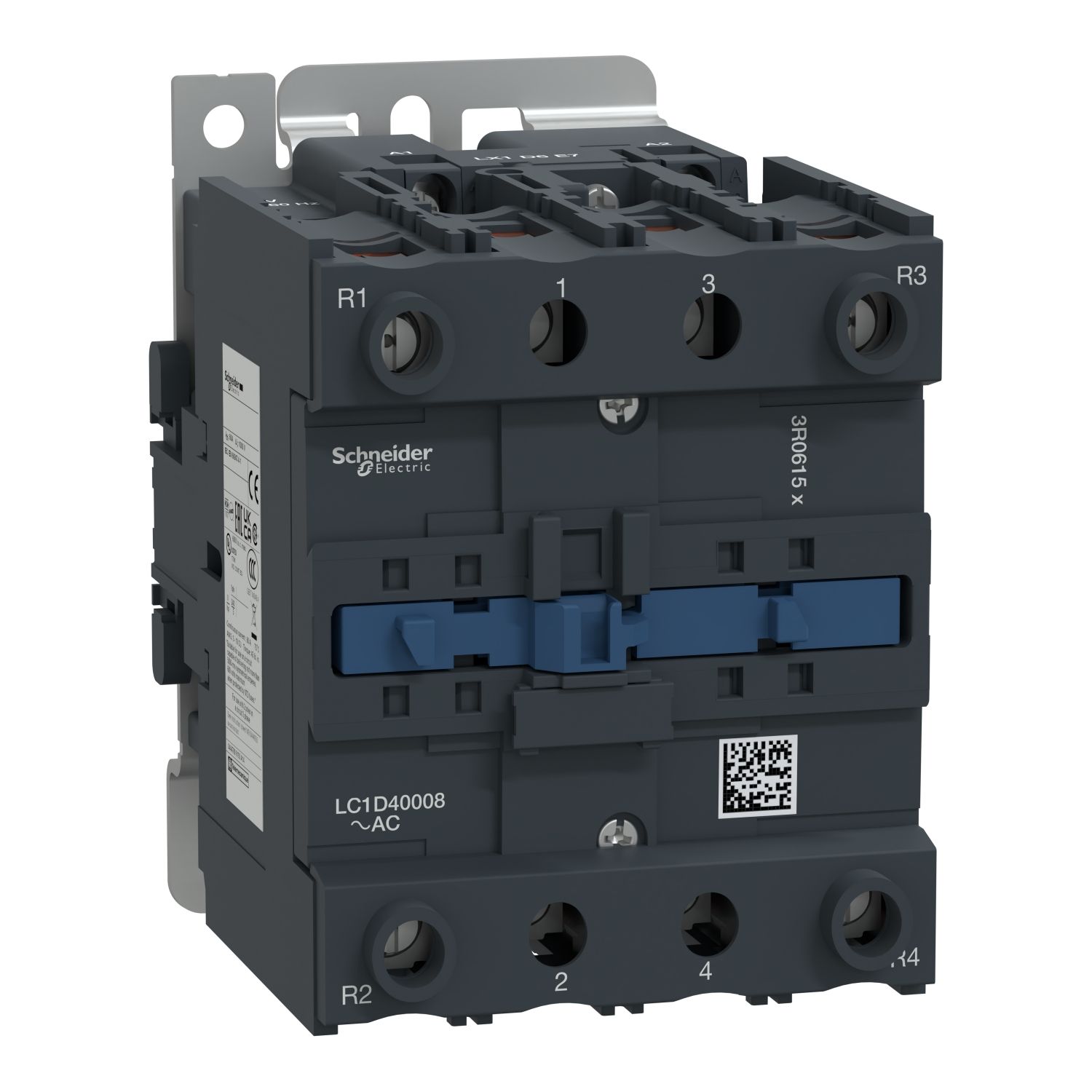

Contactor, TeSys D, 4P(2NO+2NC),AC-1 <=440V 60 A 220V AC 50/60Hz coil

Manufacturer: Schneider Electric

SKU: LC1D40008M7

GTIN: 3389110231595

Catalog

Instruction sheet

Environmental Disclosure

Old price: $860.20 inc GST

Price: $341.41 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 60A/690V AC-1. It provides a 220V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Products specifications

Attribute name	Attribute value
Main
[Ie] rated operational current	60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category	AC-1
[Uc] control circuit voltage	220 V AC 50/60 Hz
Device short name	LC1D
Range	TeSys
Range of product	TeSys Deca
Poles description	4P
Product or component type	contactor
Contactor application	resistive load
[Ue] rated operational voltage	power circuit: <= 300 V DC, power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code	LC1D
Electrical durability	1.4 Mcycles 60 A AC-1 at Ue <= 440 V
Associated fuse rating	80 A gG at <= 690 V coordination type 2 for power circuit, 80 A gG at <= 690 V coordination type 1 for power circuit
Control circuit type	AC at 50/60 Hz
Protective cover	without
[Ui] rated insulation voltage	power circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Overvoltage category	III
Coil technology	without built-in suppressor module
Inrush power in VA	160-160 VA 50 Hz cos phi 0.75 (at 20 °C), 140-140 VA 60 Hz cos phi 0.75 (at 20 °C)
Average impedance	1.5 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole	5.4 W AC-1
Heat dissipation	4-5 W at 50/60 Hz
[Icw] rated short-time withstand current	165 A 40 °C - 1 min for power circuit, 72 A 40 °C - 10 min for power circuit, 720 A 40 °C - 1 s for power circuit, 320 A 40 °C - 10 s for power circuit
Mechanical durability	6 Mcycles
Tightening torque	control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 5 N.m - on screw clamp terminals - cable 1-25 mm² hexagonal screw head 4 mm, power circuit: 8 N.m - on screw clamp terminals - cable 25-35 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Operating time	12...26 ms closing, 4...19 ms opening
Irms rated making capacity	800 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity	800 A at 440 V for power circuit conforming to IEC 60947
Pollution degree	3
Safety reliability level	B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits	1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current	60 A (at 60 °C) for power circuit
Hold-in power consumption in VA	15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate	3600 cyc/h 60 °C
Connections - terminals	power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
Pole contact composition	2 NO + 2 NC
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Contact compatibility	M1
Mounting support	rail, plate
Environment
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor opened (2 Gn, 5...300 Hz) , shocks contactor closed (10 Gn for 11 ms) , shocks contactor open (8 Gn for 11 ms)
Climatic withstand	conforming to IACS E10 exposure to damp heat
Standards	UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height	127 mm
Permissible ambient air temperature around the device	60-70 °C with derating, -40-60 °C
Operating altitude	0...3000 m
Net weight	1.44 kg
Product certifications	CSA, CCC, DNV, LROS (Lloyds register of shipping), BV, GOST, UL, GL, RINA
IP degree of protection	IP20 front face conforming to IEC 60529
Protective treatment	TH conforming to IEC 60068-2-30
Depth	125 mm
Width	85 mm
Flame retardance	V1 conforming to UL 94
