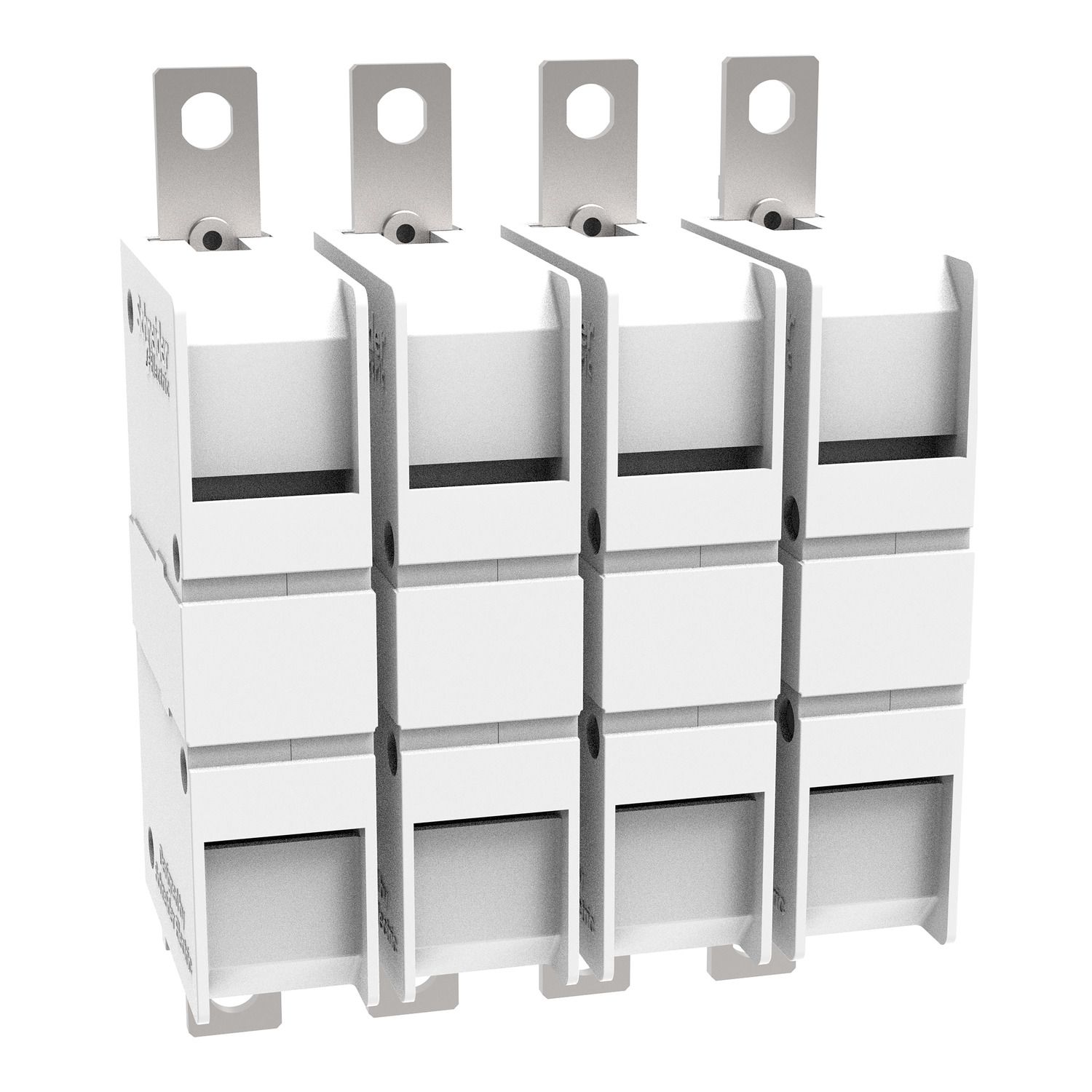

These accessories are switching module for TeSys Giga 400-500 contactor. It is used to 4 Poles electrical circuit. It is possibility to replace switching module (main contacts), enhancement contactor life. Switching modules can be replaced quickly and easily, thanks to their plug and play design. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA9G |
| Quantity per set | set of 4 |
| Range | TeSys |
| Product or component type | switch module |
| Range of product | TeSys G |
| Complementary | |
| Accessory / separate part type | kit |
| Product compatibility | LC1G400...500 |
| Poles description | 4P |
| Maximum [Ie] rated operational current | 700 A AC-1 <= 440 V at 40 °C |
| Connections - terminals | bolted connection |
| Environment | |
| Operating altitude | 5000 m with derating factor, 3000 m without power derating |
| Ambient air temperature for storage | -60-80 °C |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Standards | GB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1 |
| Ambient air temperature for operation | -25-60 °C |
Only registered users can write reviews
Related products
High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 550A, advanced version, 24…48V wide band AC/DC coil
LC1G4004BEEA
High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 550A, advanced version, 24…48V wide band AC/DC coil
$7,216.00 inc GST
$2,864.03 inc GST
High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 550A, standard version, 48…130V wide band AC/DC coil
LC1G4004EHEN
High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 550A, standard version, 48…130V wide band AC/DC coil
$6,275.50 inc GST
$2,490.75 inc GST

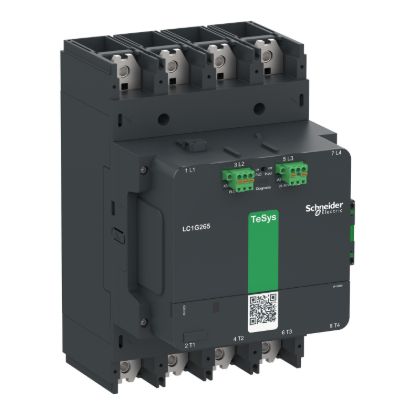

High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 700A, advanced version, 24…48V wide band AC/DC coil
