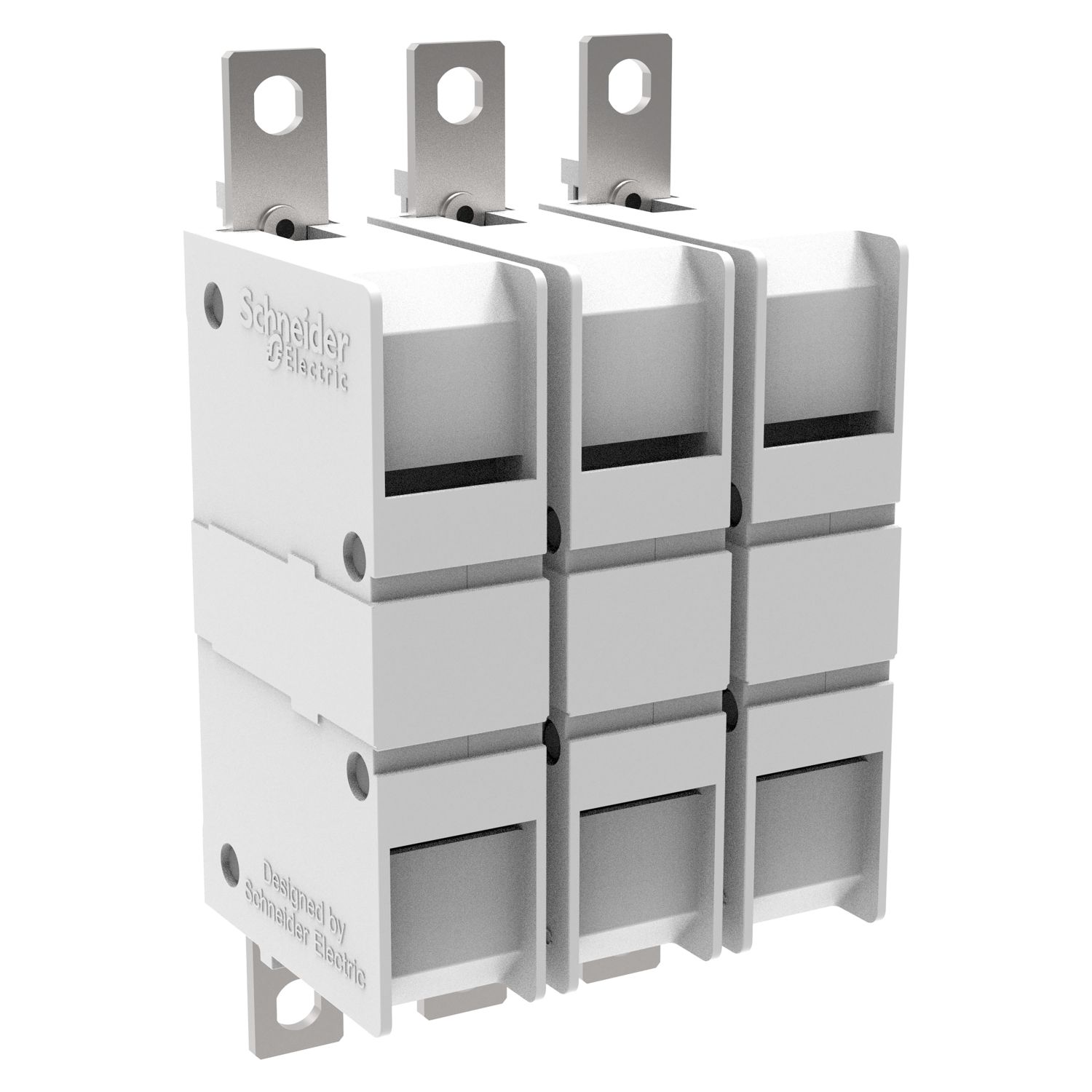

These accessories are switching module for TeSys Giga 630-800 contactor. It is used to 3 Poles electrical circuit. It is possibility to replace switching module (main contacts), enhancement contactor life. Switching modules can be replaced quickly and easily, thanks to their plug and play design. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA9G |
| Quantity per set | set of 3 |
| Range | TeSys |
| Product or component type | switch module |
| Range of product | TeSys G |
| Complementary | |
| Accessory / separate part type | kit |
| Product compatibility | LC1G630...800 |
| Width | 284 mm |
| Poles description | 3P |
| Depth | 202-202 mm |
| Maximum [Ie] rated operational current | 800 A AC-3 <= 440 V at 40 °C, 1050 A AC-1 <= 440 V at 40 °C |
| Net weight | 8.5 kg |
| Height | 127.5 mm |
| Connections - terminals | bolted connection |
| Environment | |
| Operating altitude | 5000 m with derating factor, 3000 m without power derating |
| Ambient air temperature for storage | -60-80 °C |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Standards | GB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1 |
| Ambient air temperature for operation | -25-60 °C |
