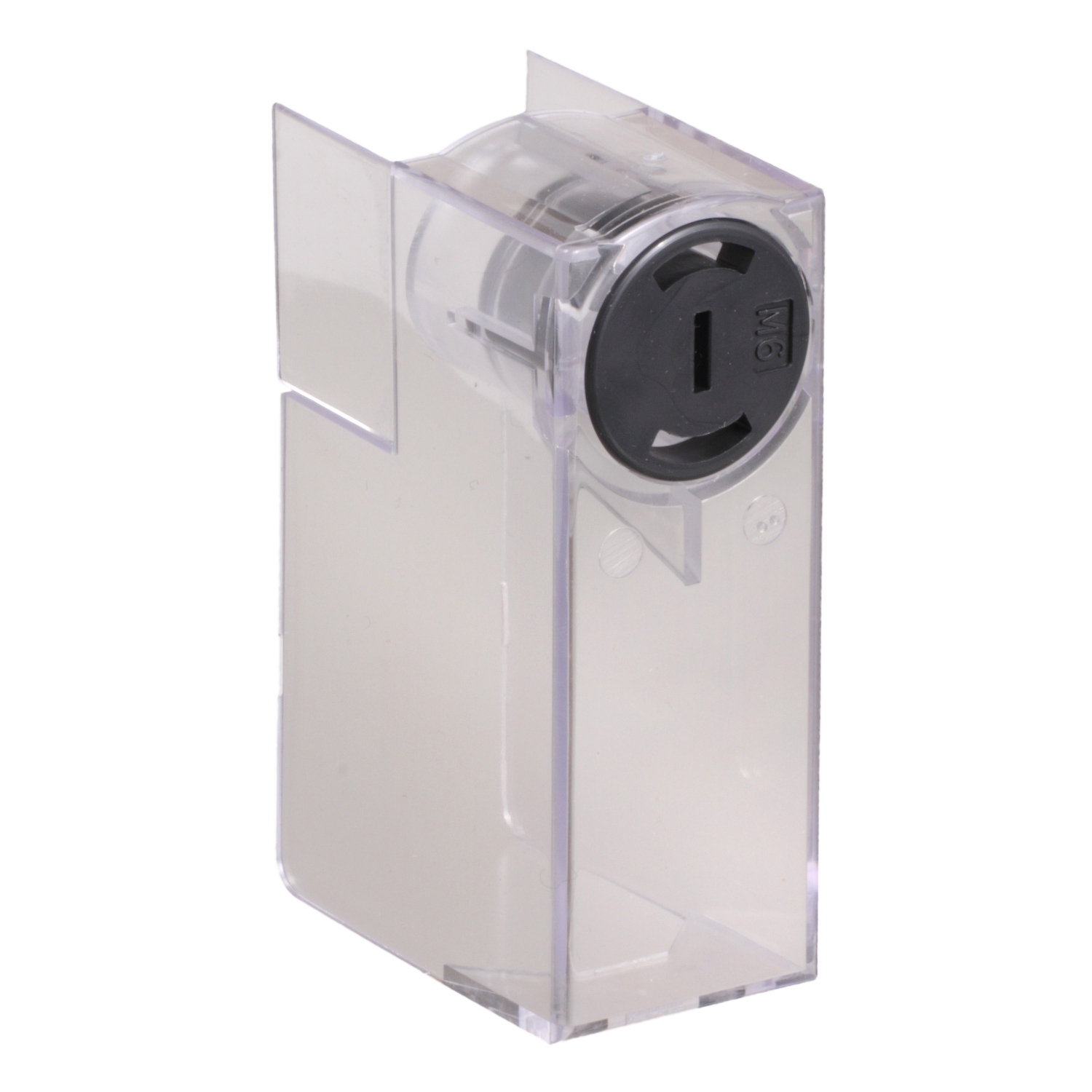

TeSys F power terminal protection shrouds, for 3-pole contactors LC1 F225, F265, F330, F400, F500 and CR1 F265, F400, F500, and thermal overload relays LR9 F75, F79, F81, F*75, F*79, F*81. Set of 6 units. The shrouds protect against direct contact on terminals by providing a front face IP20 protection. One shroud per power terminal, to be attached to the connection screw of the terminal. Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA9F |
| Product compatibility | LR9F7375, F7379, F7381, LR9F75, F79, F81, LR9F7575, F7579, F7581, LC2F225, F265, ATS22 C21, C25, C32, C41, C48, C59, CR1F265, F400, F500, LC1F4002, F5002, LC1F225, F265, F330, F400, F500 |
| Quantity per set | set of 6 |
| Poles description | 1P |
| Range | TeSys |
| Product or component type | terminal shroud |
| Accessory / separate part category | protection accessory |
| Range compatibility | Altistart ATS22 soft starter, TeSys CR1F magnetic latching contactor, TeSys LC2F reversing contactor, TeSys LC1F contactor, TeSys LR9F electronic thermal overload relay |
| Range of product | TeSys F |
| Complementary | |
| Compatibility code | LA9F terminal shroud |
| Mounting location | on power terminal |
| Net weight | 0.25 kg |
