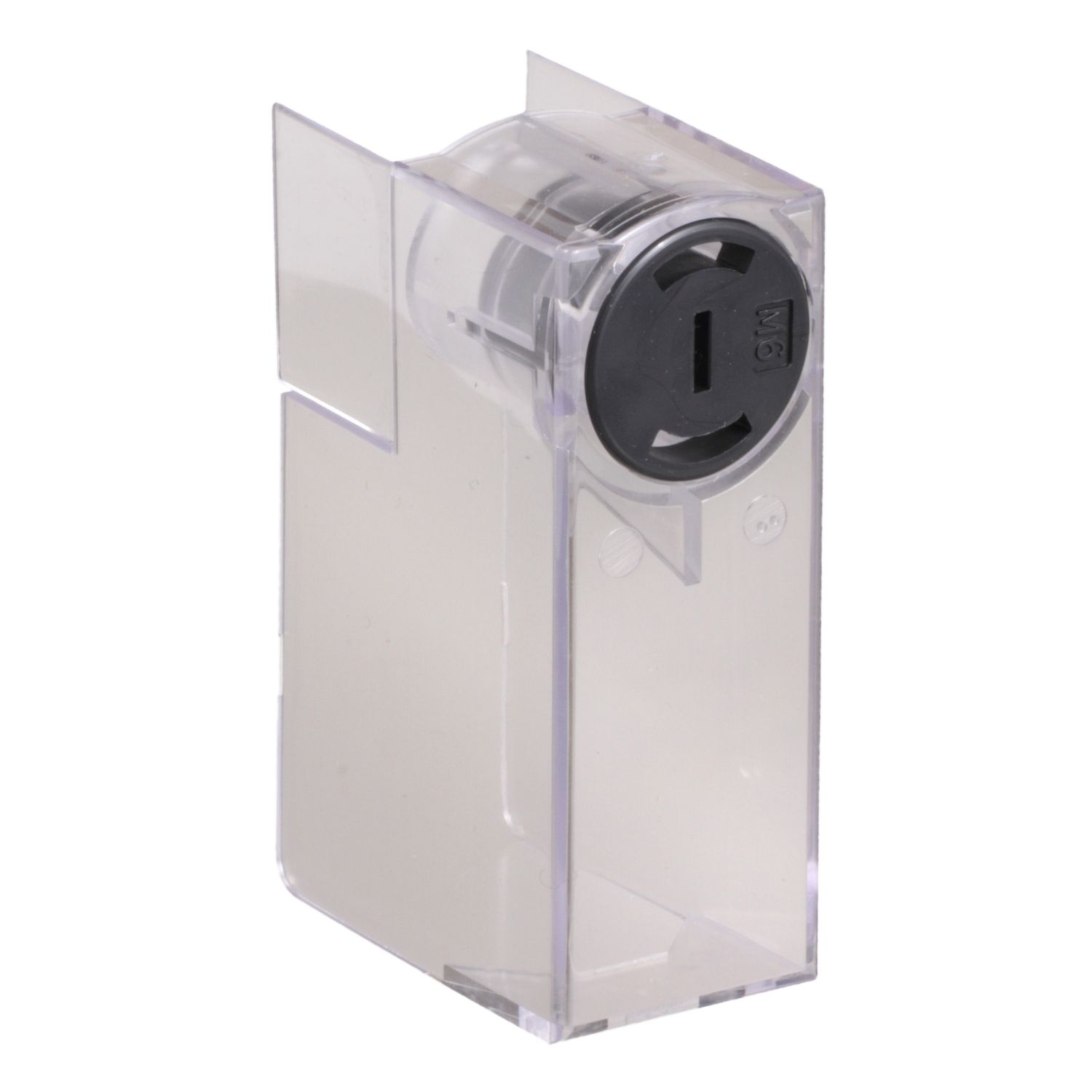

TeSys F power terminal protection shrouds, for 3-pole contactors LC1 F150, F185 and CR1 F150, F185, and thermal overload relays LR9 F63, F67, F69, F*63, F*67, F*69. Set of 6 units. The shrouds protect against direct contact on terminals by providing a front face IP20 protection. One shroud per power terminal, to be attached to the connection screw of the terminal. Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA9F |
| Product compatibility | LR9F63, F67, F69, ATS48 C14, C17, CR1F150, F185, LR9F5563, F5567, F5569, LC2F150, F185, ATS22 C11, C14, C17, LC1F150, F185, LR9F5363, F5367, F5369 |
| Quantity per set | set of 6 |
| Poles description | 1P |
| Range | TeSys |
| Product or component type | terminal shroud |
| Accessory / separate part category | protection accessory |
| Range compatibility | Altistart ATS48 soft starter, Altistart ATS22 soft starter, TeSys CR1F magnetic latching contactor, TeSys LC2F reversing contactor, TeSys LC1F contactor, TeSys LR9F electronic thermal overload relay |
| Range of product | TeSys F |
| Complementary | |
| Compatibility code | LA9F terminal shroud |
| Mounting location | on power terminal |
| Net weight | 0.25 kg |
