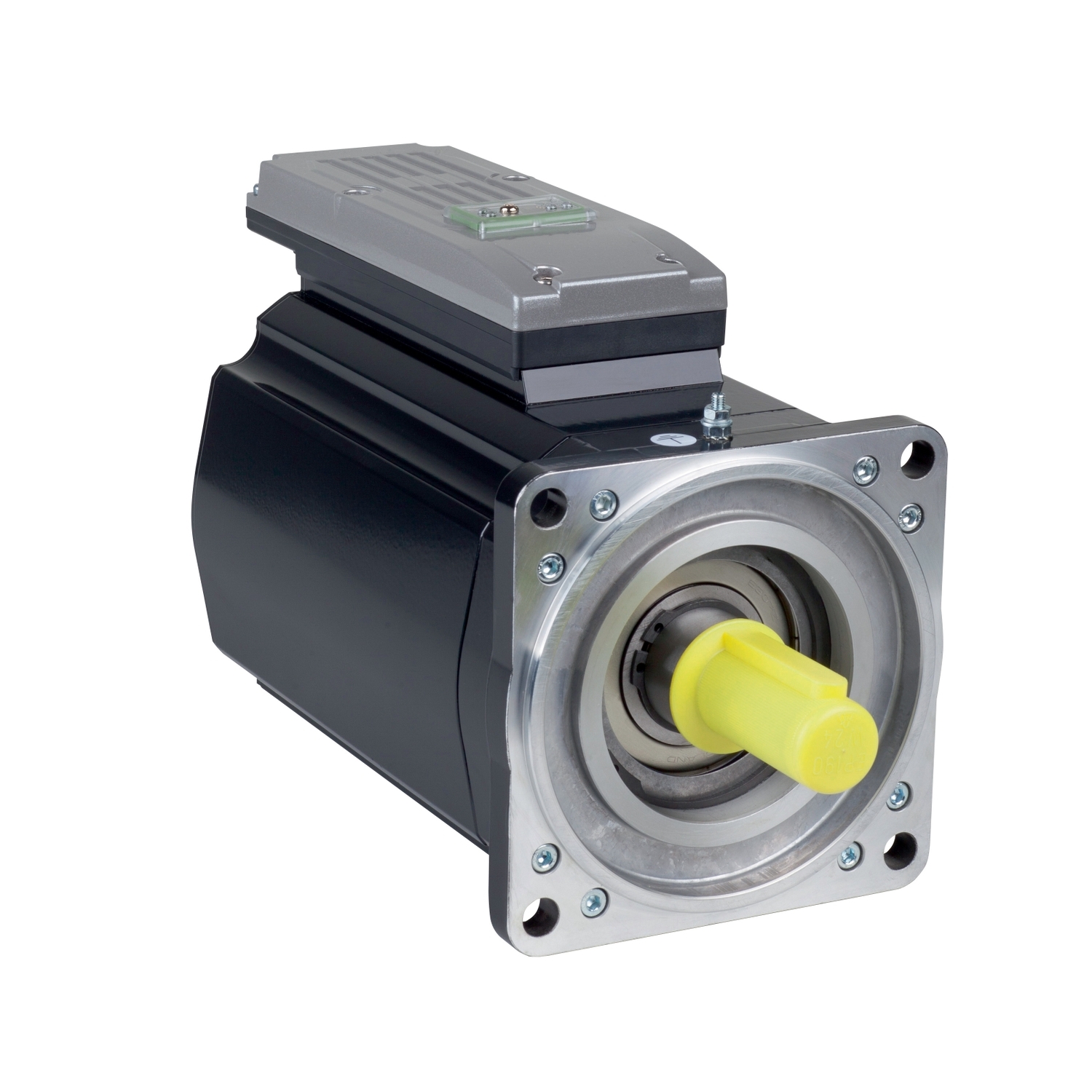

This product is part of the PacDrive 3 range, an offer of integrated servo motors for machines from 0.31kW to 1.91kW. The 10-pole integrated servo motor features 1 stack with a maximum mechanical speed of 3000RPM, a continuous rated stall torque 7.5Nm and smooth shaft. It is an equipped with a multi-turn SinCos Hiperface® absolute encoder (128 periods per revolution) without holding brake. It is an integrated servo motor with a supply voltage of 250V to 700V, a continuous stall current of 4.7A and a maximum continuous power of 1.45kW. The shaft dimensions are 24mm (diameter) x 50mm (length). It is an IP54 rated product. The length of this product is 254mm and the centering collar dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole. It weighs 12.5kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports international standard 140mm flange mount with a natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ILM |
| Range of product | PacDrive 3 |
| Product or component type | servo motor integrated drive |
| Complementary | |
| Peak stall torque | 27 N.m |
| Nominal speed | 3000 rpm |
| Type of cooling | natural convection |
| Number of mounting holes | 4 |
| [Us] rated supply voltage | 250...700 V |
| Motor flange size | 140 mm |
| Maximum current Irms | 18.8 A |
| Stator inductance | 9.55 mH at 120 °C for Ph/N, 19.1 mH at 20 °C for Ph/Ph |
| Speed feedback resolution | 128 periods |
| Centring collar depth | 3.5 mm |
| Back emf constant | 108 V/krpm at 20 °C |
| Continuous stall torque | 7.5 N.m |
| Maximum radial force Fr | 1530 N at 3000 rpm, 1760 N at 2000 rpm, 2210 N at 1000 rpm |
| Circle diameter of the mounting holes | 165 mm |
| Torque constant | 1.6 N.m/A at 120 °C |
| Continuous stall current | 4.7 A |
| [In] rated current | 2.9 A |
| Stator resistance | 1.26 Ohm at 120 °C for Ph/N, 1.81 Ohm at 20 °C for Ph/Ph |
| Feedback type | absolute multiturn SinCos Hiperface |
| Shaft end | untapped |
| Mounting holes diameter | 11 mm |
| Shaft diameter | 24 mm |
| Key width | 40 mm |
| Centring collar diameter | 130 mm |
| Net weight | 12.5 kg |
| Length | 254 mm |
| Nominal output power | 1450 W |
| Shaft length | 50 mm |
| Second shaft | without second shaft end |
| Holding brake | without |
| Maximum axial force Fa | 0.2 x Fr |
| Number of motor poles | 10 |
| Rotor inertia | 7.41 kg.cm² |
| Number of motor stacks | 1 |
| Nominal torque | 4.6 N.m |
| Mounting support | international standard flange |
| Environment | |
| IP degree of protection | IP54 |
