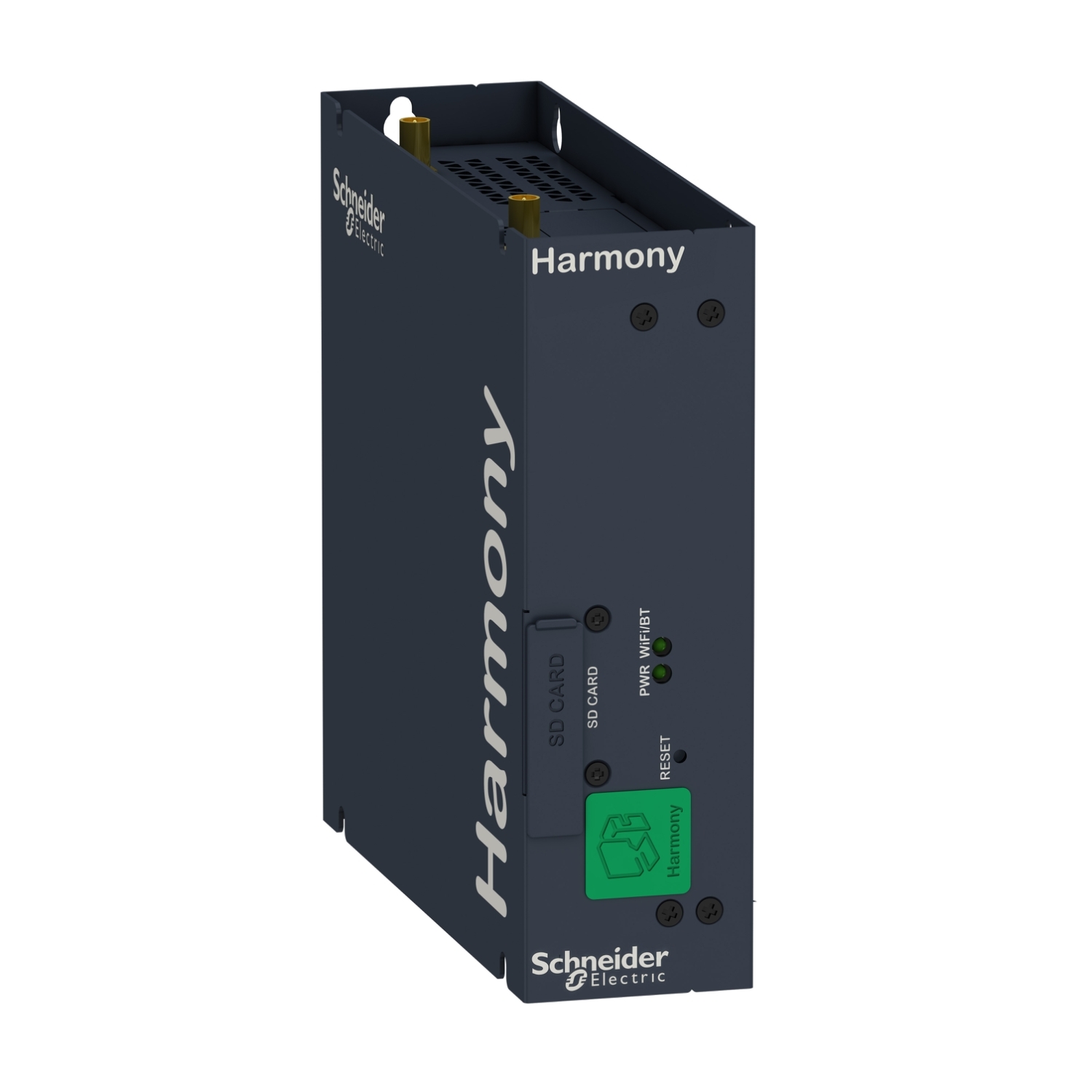

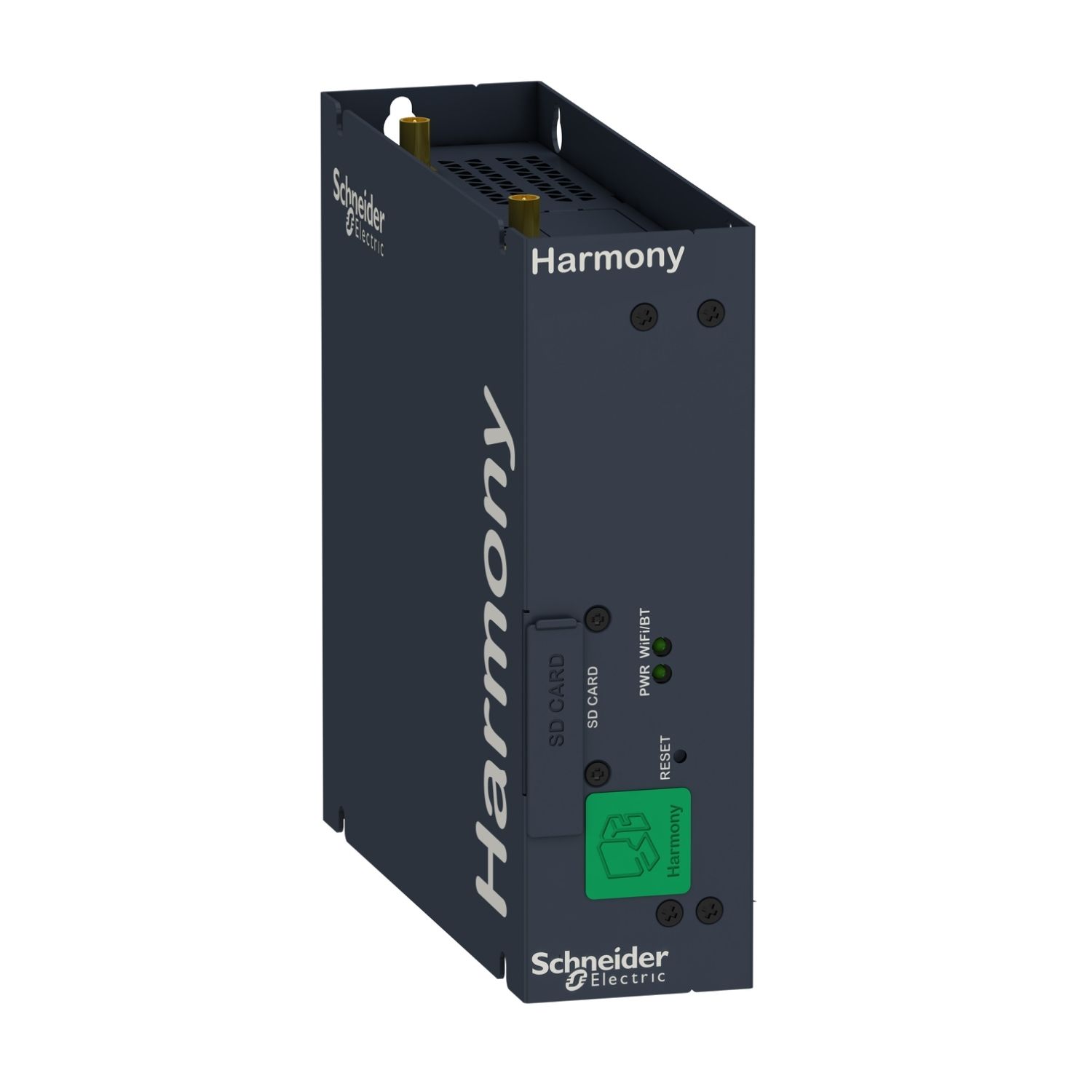

EV charge controller, EcoStruxure EV Charging Expert, 100 charging stations, dynamic charge management

Manufacturer: Schneider Electric

SKU: HMIBSCEA53D1EDL

GTIN: 3606481455536

User guide

Instruction sheet

Declaration of conformity

System user guide

Brochure

$20,090.84 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Range	EcoStruxure EV Charging Expert
Type of installation	indoor
Product name	EcoStruxure EV Charging Expert
Product or component type	EV charge controller
Complementary
Load type	200 charge points
Charge management	dynamic
Device application	to manage the overall energy allocated to each vehicle
Depth	46 mm
Width	157 mm
Mounting position	horizontal/vertical
Input type	energy meter
Software version	JSON
Number of devices	100 charging stations
Mounting mode	wall mount
Function available	with time-of-use settings, with priority charging profile
Number of zones	20
Communication service	via Modem, web server for OCPP 1.6
Communication interface	modem to connect device to central management system, Ethernet RJ45 to connect device to charging station, Ethernet RJ45 Cat.6 to connect device to charging station
Net weight	1 kg
Total number of groups	3
Services	commercial service plan0...50 °C
Electromagnetic compatibility	conducted and radiated emissions class A conforming to EN 55022
Power consumption in W	16 W
Range compatibility	EVlink EVlink City, EVlink EVlink parking, EVlink EVlink Smart Wallbox
Mounting support	rail
Standards	EN/IEC 61000-6-4, EN 55011, EN/IEC 61131-2
Height	150 mm
Targeted country	all
[Us] rated supply voltage	12...24 V DC
Installed device	meter device (to be ordered separately), modem 3G/4G (to be ordered separately)
Product certifications	RCM, EAC, CE
Environment
Operating altitude	0...2000 m
IP degree of protection	IP40
Ambient air temperature for storage	-20-60 °C
Relative humidity	10-95 %
Ambient air temperature for operation	0-50 °C
