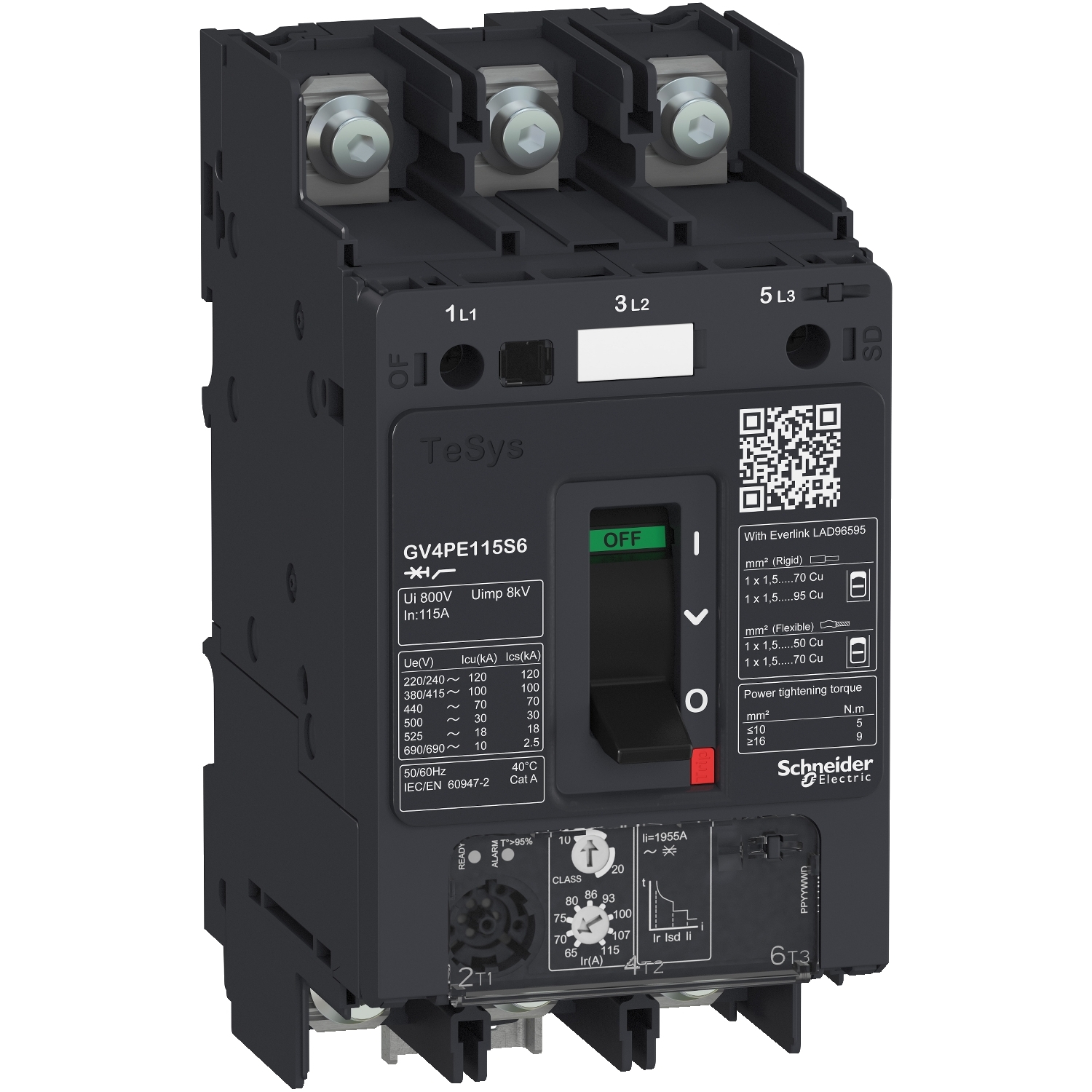

Motor circuit breaker, TeSys GV4, TeSys GV4, 3P, 7A, Icu 50kA, thermal magnetic, lugs terminals

Manufacturer: Schneider Electric

SKU: GV4PE07N6

GTIN: 3606481310415

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Old price: $1,161.60 inc GST

Price: $461.04 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys GV motor circuit breaker, 3 poles (3P), 7A/690V, for protection of 3-phase motors 1.5-3kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection for bars or cables with lugs. Thermal protection adjustable by dials with a setting current Ir in range 2.9-7A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).

Products specifications

Attribute name	Attribute value
Main
Device short name	GV4PE
Device application	motor protection
Range	TeSys Deca
Range of product	TeSys GV4
Trip unit technology	electronic, thermal-magnetic
Product name	TeSys Deca, TeSys GV4
Product or component type	motor circuit breaker
Complementary
Colour	grey (RAL 7016)
Connection pitch	35 mm with spreaders, 27 mm without spreaders
Mechanical durability	40000 cycles
Tightening torque	5 N.m for cable 1.5-10 mm², 9 N.m for cable 16-95 mm²
Suitability for isolation	yes conforming to IEC 60947-1
Breaking capacity	18 kA at 600Y/347 V AC 50/60 Hz conforming to UL 60947, 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 8 kA Icu at 660...690 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA at 480Y/277 V AC 50/60 Hz conforming to UL 60947, 65 kA at 240 V AC 50/60 Hz conforming to UL 60947, 65 kA at 208Y/120 V AC 50/60 Hz conforming to UL 60947, 15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
Electrical durability	40000 cycles for AC-3 at 440 V In, 40000 cycles for AC-3 at 440 V In/2
Power dissipation per pole	4.6 W
Control type	toggle
Maximum operating rate	25 cyc/h
Magnetic tripping current	119-119 A
Phase failure sensitivity	yes conforming to IEC 60947-4-1
Height	155 mm
Mechanical robustness	shocks: 15 gn 11 ms conforming to IEC 60068-2-27, vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6, vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6
Depth	116 mm
Width	81 mm
Poles description	3P
Direct connector	without
[Ui] rated insulation voltage	800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-2
Net weight	1.45 kg
Utilisation category	AC-3 conforming to IEC 60947-4-1, category A conforming to IEC 60947-2
Connections - terminals	lugs-ring terminals
Operating position	any position
Motor power kW	7.5-7.5 kW at 660...690 V AC 50/60 Hz, 5.5-5.5 kW at 660...690 V AC 50/60 Hz, 4-4 kW at 660...690 V AC 50/60 Hz, 3-3 kW at 660...690 V AC 50/60 Hz, 4-4 kW at 500 V AC 50/60 Hz, 3-3 kW at 500 V AC 50/60 Hz, 2.5-2.5 kW at 500 V AC 50/60 Hz, 2.2-2.2 kW at 500 V AC 50/60 Hz, 3-3 kW at 400...415 V AC 50/60 Hz, 2.5-2.5 kW at 400...415 V AC 50/60 Hz, 2.2-2.2 kW at 400...415 V AC 50/60 Hz, 1.5-1.5 kW at 400...415 V AC 50/60 Hz
[Ith] conventional free air thermal current	115 A conforming to IEC 60947-4-1
Rated duty	continuous conforming to IEC 60947-4-1
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current	7 A
Environment
Fire resistance	960 °C conforming to IEC 60695-2-11
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for storage	-50-85 °C
Pollution degree	3
Climatic withstand	conforming to IACS E10
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
Operating altitude	5000 m
Standards	EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
Product certifications	EU-RO MR, ATEX, EAC, CCC, CSA, UL, IEC
