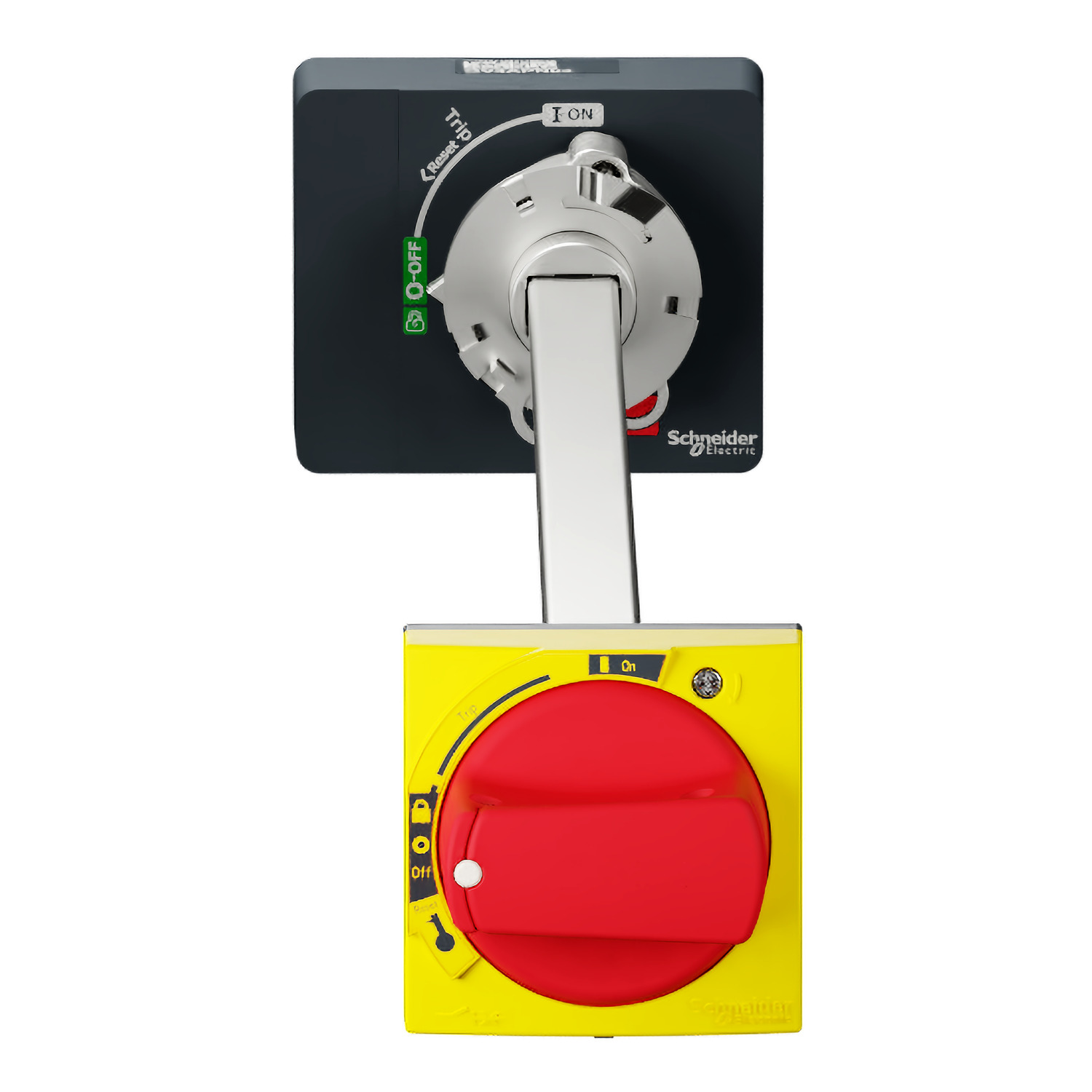

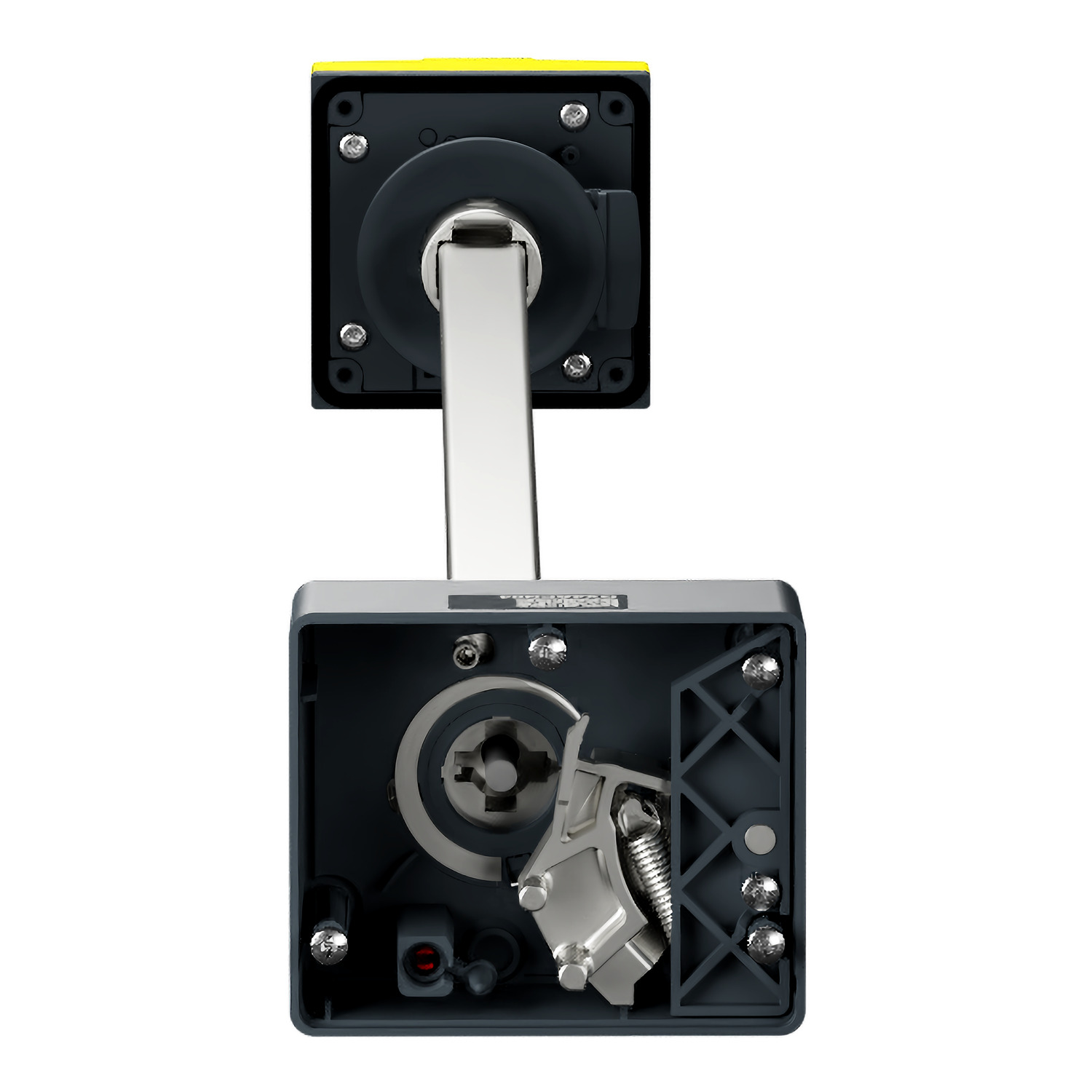

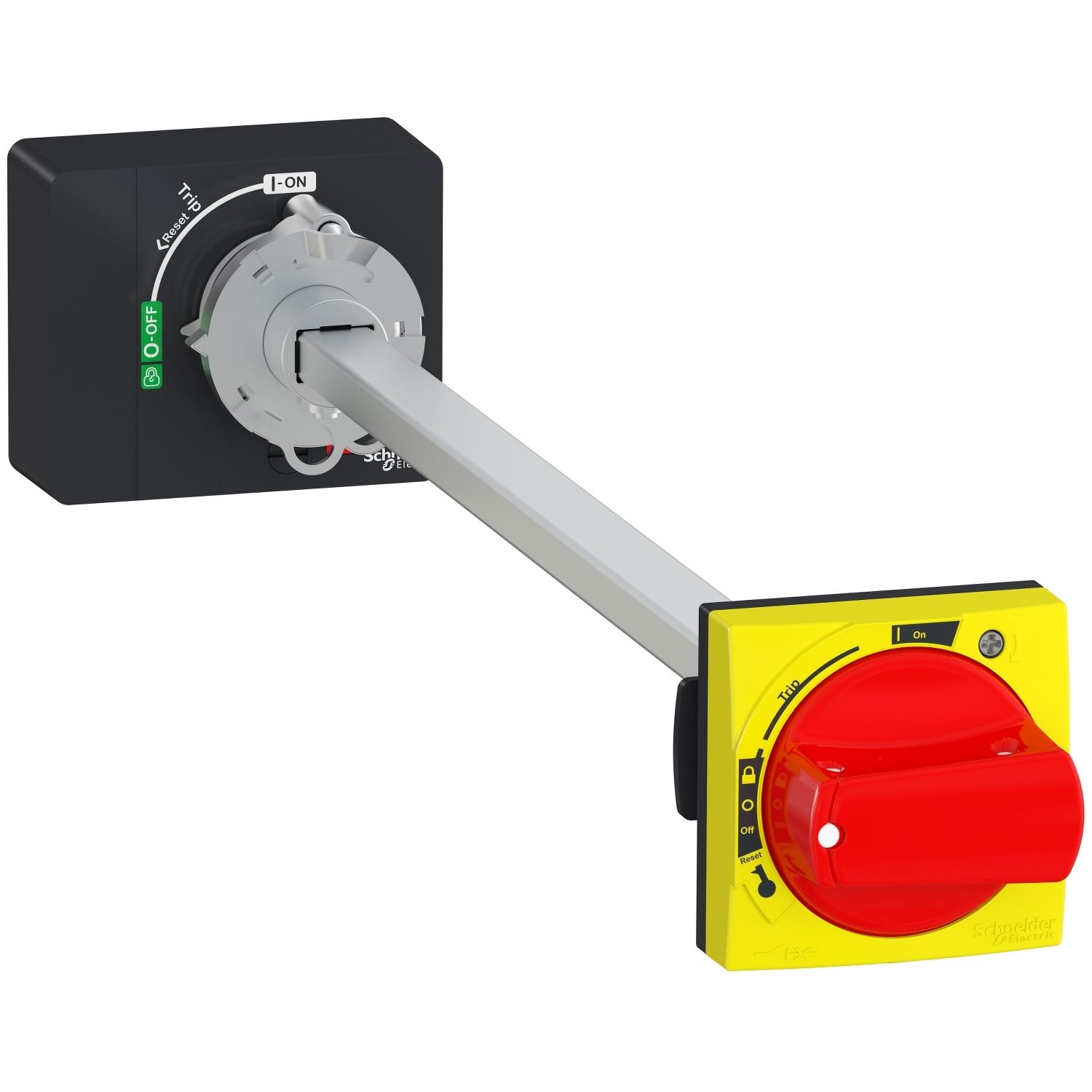

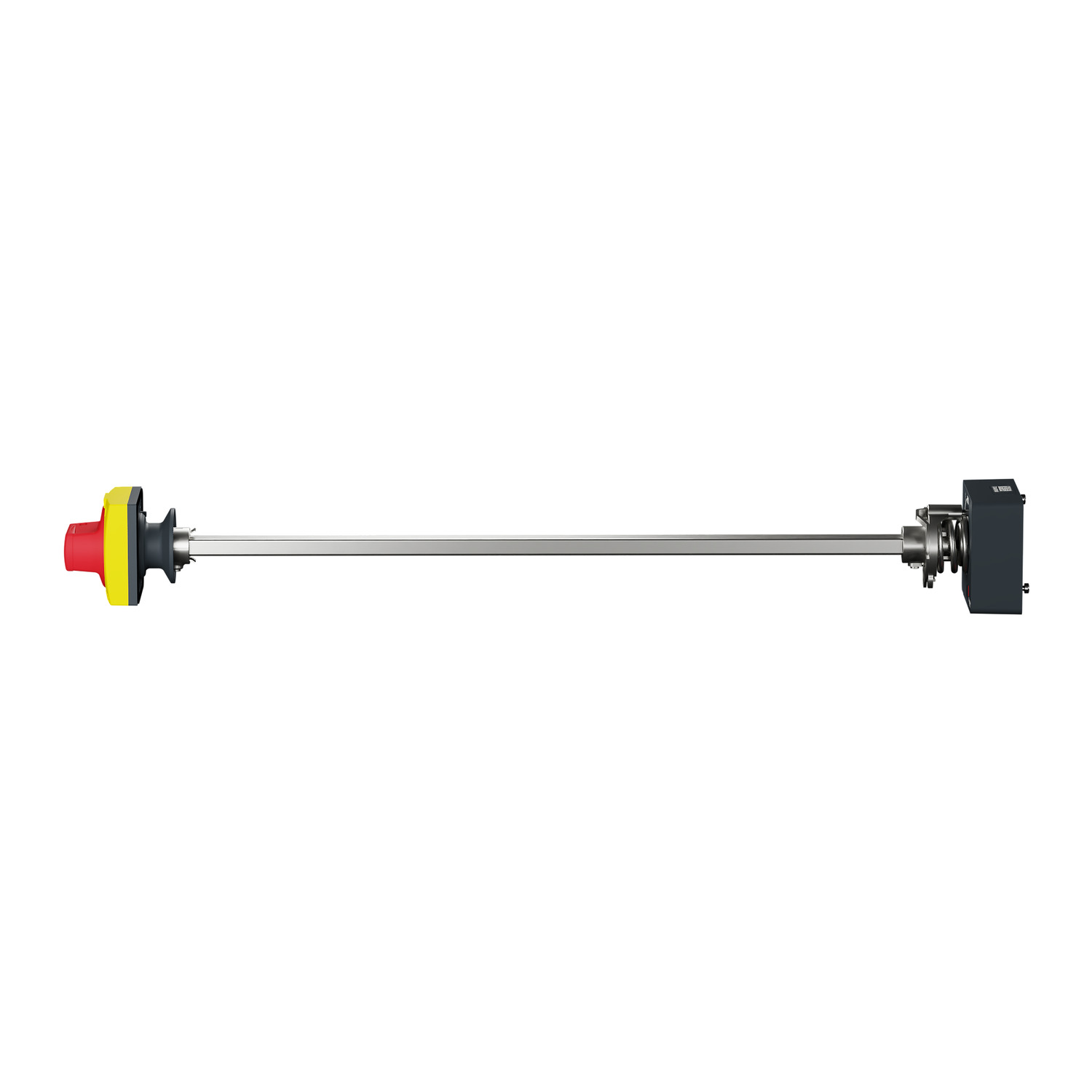

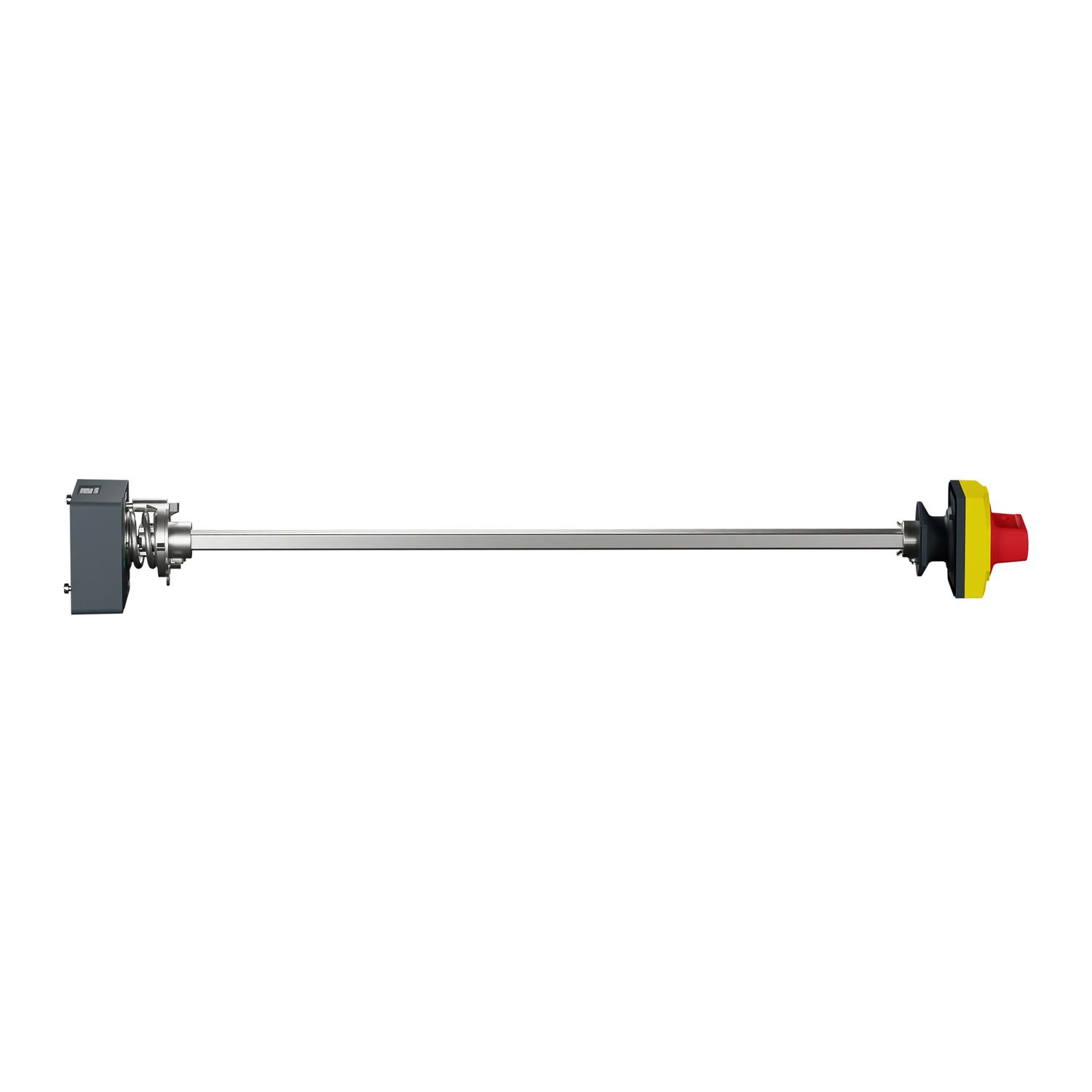

TeSys GV extended rotary handle, for motor circuit breakers GV4 mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP65 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 214-627mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Rotary handle padlocking | padlock in OFF position, padlock in ON position, 1 to 3 padlocks |
| Range | TeSys Deca, TeSys |
| Marking | OFF - Trip - ON |
| Product or component type | rotary handle kit |
| Handle colour | red |
| Accessory / separate part category | control accessory |
| Handle front plate colour | yellow |
| Rotary handle mounting style | extended |
| Complementary | |
| Mounting mode | fixed |
| Mounting location | door of enclosure |
| Range compatibility | TeSys TeSys Deca, TeSys TeSys BV4, TeSys TeSys GV4 |
| Locking options description | 1 to 3 padlocks Ø 4 to Ø 8 |
| Back/door distance | 214-627 mm |
| Environment | |
| IP degree of protection | IP65 |
