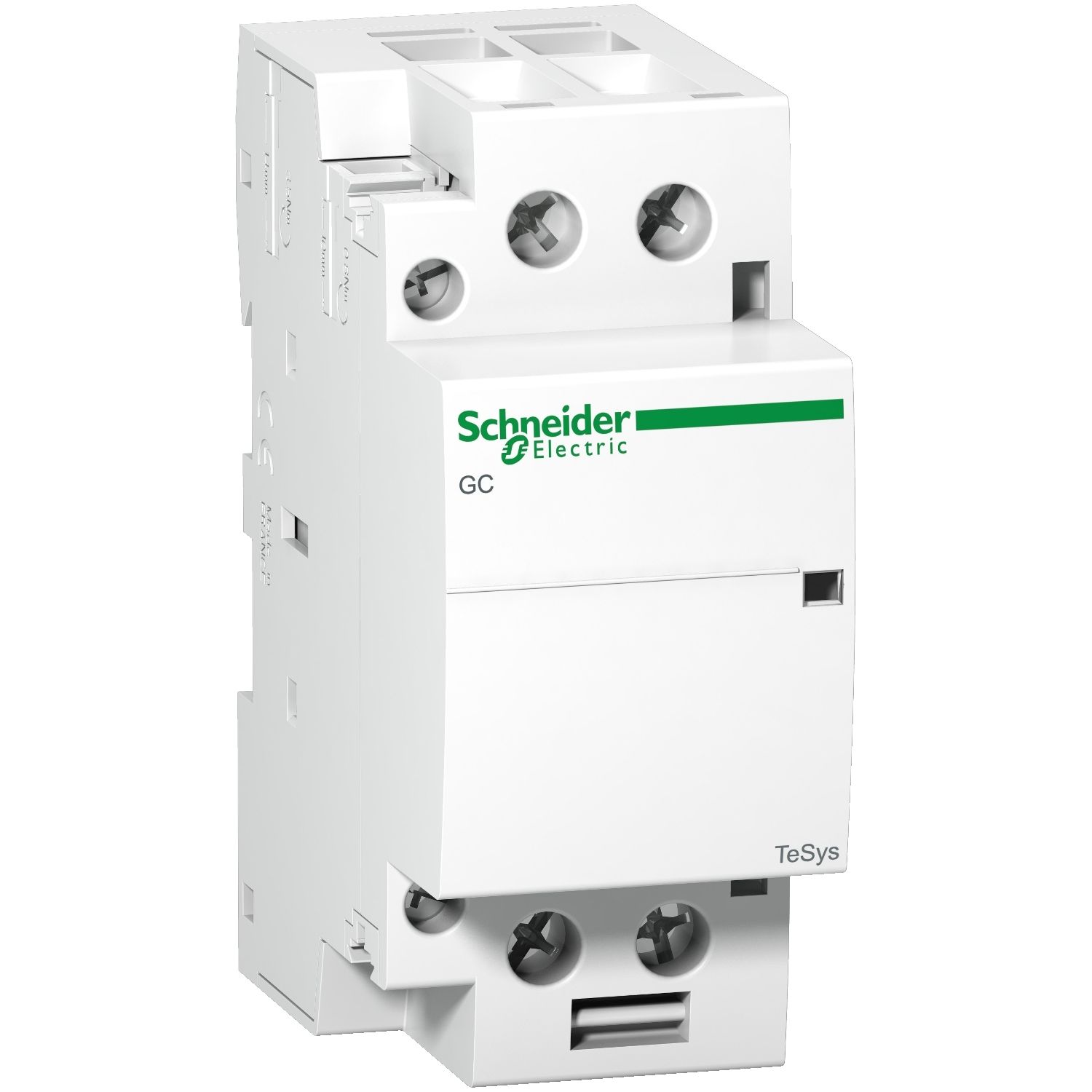

TeSys GC modular contactor, 2 poles (2NO), 40A/250V AC-7a (heating) and 15A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 60Hz, state indicator on front. For use in modular panels, compact (36mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 6 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GC40 |
| Range | TeSys |
| Product name | TeSys GC |
| Product or component type | modular contactor |
| Contactor application | heating, motor control, lighting |
| Complementary | |
| Heat dissipation | 1.6-1.6 W at 50/60 Hz |
| [Icw] rated short-time withstand current | 100 A 40 °C - 30 s for power circuit, 320 A 40 °C - 10 s for power circuit |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Operating time | 10...30 ms closing, 10...25 ms opening |
| Operating position | 30°/vertical |
| Hold-in power consumption in VA | 4.6-4.6 VA 50 Hz (at 20 °C) |
| Compatibility code | modular standard contactor |
| Poles description | 2P |
| Mechanical durability | 1000000 cycles |
| [Ie] rated operational current | 15 A AC-7B, 40 A AC-7A |
| Tightening torque | power circuit: 2 N.m - on screw clamp terminals, control circuit: 0.8 N.m - on screw clamp terminals |
| Electrical durability | AC-7B: 100000 cycles, AC-7A: 100000 cycles |
| Maximum operating rate | 300 cyc/h 50 °C |
| Mounting mode | clip-on |
| [Ui] rated insulation voltage | 500 V conforming to VDE 0110, 500 V conforming to IEC 61095 |
| Utilisation category | AC-7A, AC-7B |
| Control type | remote control |
| Pole contact composition | 2 NO |
| Connections - terminals | power circuit: screw clamp terminals 1 cable(s) 16-16 mm²flexible with cable end, power circuit: screw clamp terminals 2 cable(s) 16-16 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 25-25 mm²flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 6-6 mm²solid without cable end, power circuit: screw clamp terminals 1 cable(s) 25-25 mm²solid without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible without cable end |
| Inrush power in VA | 34-34 VA 50 Hz (at 20 °C) |
| Associated fuse rating | 40 A gL at <= 440 V for power circuit |
| Irms rated making capacity | 120 A at 400 V AC for power circuit conforming to IEC 61095 |
| Rated breaking capacity | 120 A at 400 V for power circuit conforming to IEC 61095 |
| Control circuit type | AC at 60 Hz |
| Mounting support | DIN rail |
| Standards | IEC 61095, IEC 60947-5 |
| [Ith] conventional free air thermal current | 40 A (at 50 °C) for power circuit |
| Control circuit voltage limits | operational: 0.85...1.1 Uc at 50 Hz (at <50 °C), drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C) |
| Average impedance | 2 mOhm - Ith 40 A 50 Hz for power circuit |
| Power dissipation per pole | 3.2 W |
| [Ue] rated operational voltage | <= 250 V AC |
| [Uc] control circuit voltage | 220...240 V AC 60 Hz |
| Environment | |
| Operating altitude | <= 3000 m |
| Depth | 62.5 mm |
| Width | 36 mm |
| Colour | white |
| Quantity per set | set of 6 |
| IP degree of protection | IP20 conforming to VDE 0106, IP40 conforming to VDE 0106 (in enclosure) |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| Net weight | 0.23 kg |
| Total number of 18 mm modules | 2 |
| Ambient air temperature for operation | -5-50 °C |
| Height | 85 mm |
| Mechanical robustness | vibrations contactor closed: 3 Gn, 5...300 Hz, vibrations contactor open: 2 Gn, 5...300 Hz, shocks contactor closed: 15 Gn for 11 ms, shocks contactor open: 10 Gn for 11 ms |
