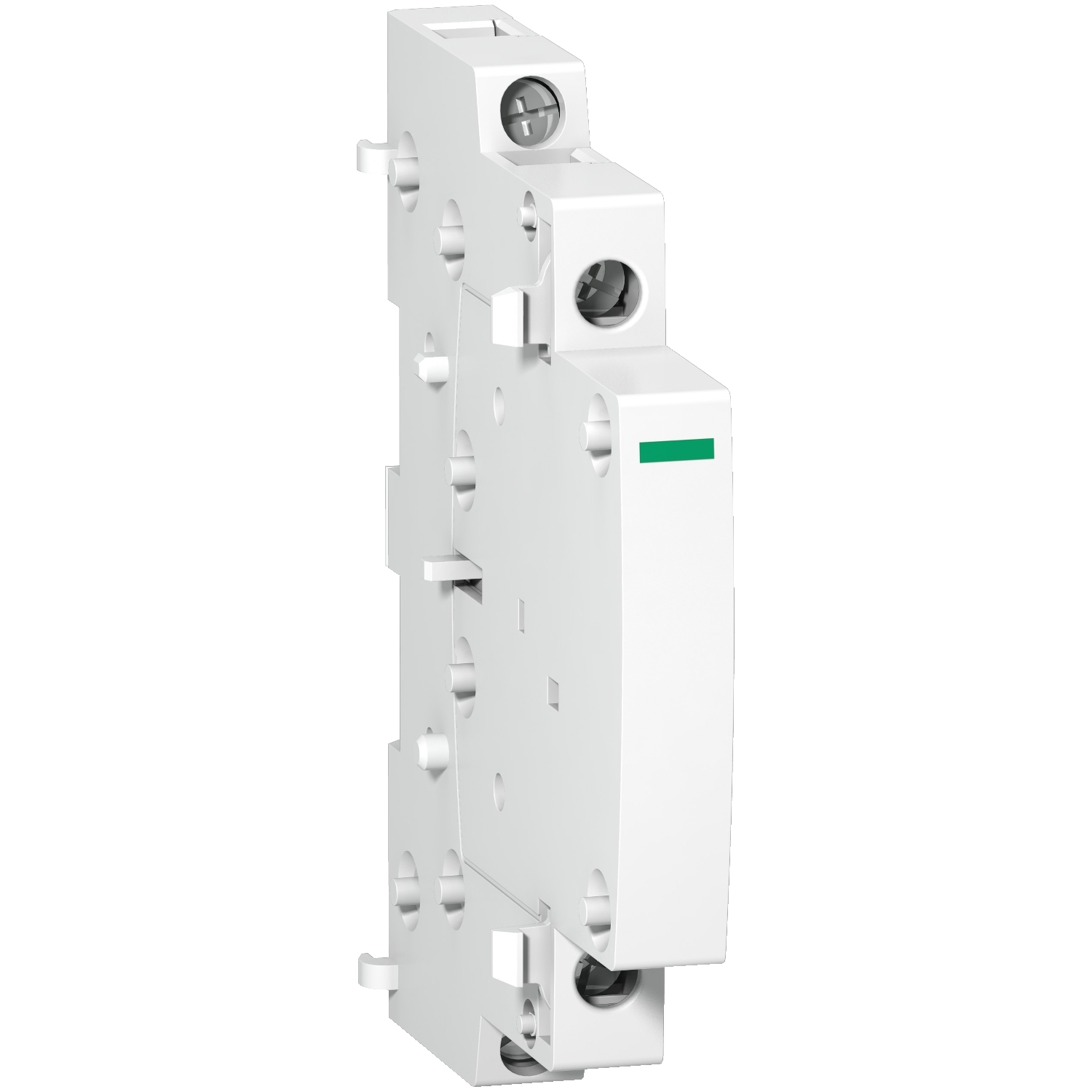

TeSys GC, GY auxiliary contact block, for GC and GY contactors. It provides 2NO instantaneous auxiliary contacts rated up to 5A/250V AC. For side mounting on all GC and GY contactor models (9mm width). Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GAC0 |
| Product compatibility | TeSys GC, TeSys GY |
| Pole contact composition | 2 NO |
| Mounting location | right side |
| Range | TeSys |
| Product or component type | auxiliary contact block |
| [Ue] rated operational voltage | 250 V |
| [Ith] conventional free air thermal current | 5 A (at 50 °C) |
| Complementary | |
| Depth | 60 mm |
| Width | 8.75 mm |
| Mechanical durability | 1 Mcycles |
| Tightening torque | 0.8 N.m - on screw clamp terminals |
| [Ui] rated insulation voltage | 500 V conforming to VDE 0110, 500 V conforming to IEC 60947-5 |
| Connections - terminals | screw clamp terminals2.5-2.5 mm²flexible, screw clamp terminals2.5-2.5 mm²solid |
| Net weight | 0.016 kg |
| Height | 81 mm |
| Environment | |
| Operating altitude | <= 3000 m without derating |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP20 conforming to VDE 0106 |
| Standards | IEC 60947-5 |
| Ambient air temperature for operation | -5-50 °C |
| Product certifications | NF-USE, VDE, OVE, CEBEC |
