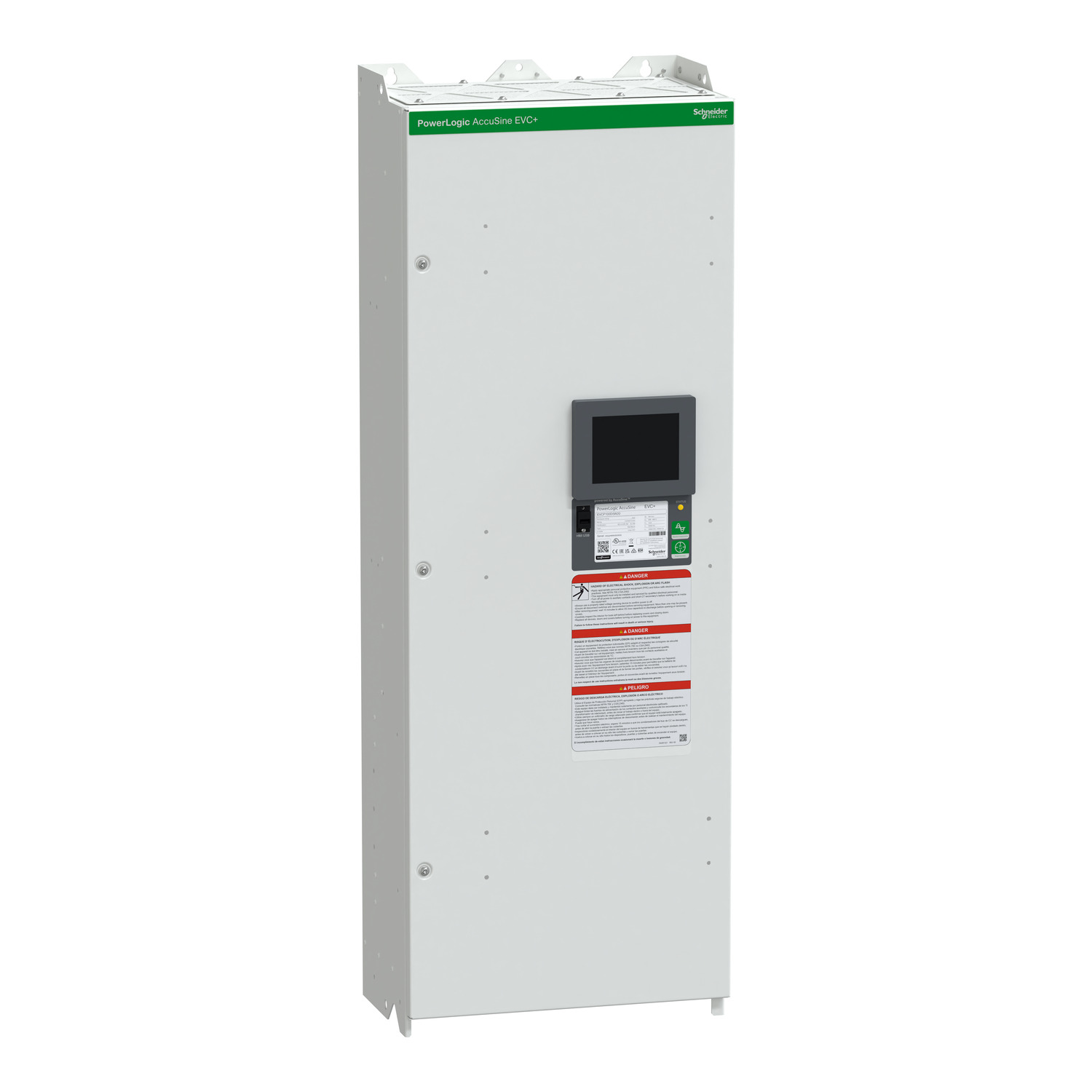

PowerLogic AccuSine EVP+ is an active power correction solution for Electronic VAR Compensation / Static VAR Generator It is designed for Dynamic VAR Correction (PF correction) for industrial applications including mission critical environments. PowerLogic AccuSine EVP+ can also be configured for Harmonic Filtering and Network Unbalance Correction. The AccuSine EVC+ series can be used on a 208V to 480V network. VAR correction range : 1 kVar to 55 kVar at 208V network and 1 KVAR to 100 kVar at (380V to 480V) network. Includes a touchscreen HMI for configuration, commissioning and waveform capture. Connections include RS485 for Modbus protocol, and an USB port for firmware upgrades or reports. Wall Mount, Scalable (several unit can be connectected in parallel in order to increase the compasation range). Wall-mount, Indoor, Ingress Protection Rating IP20. The dimensions of the enclosure are 1260mm in Height, 440mm in Width, 265mm in Depth, Weight 90kg. Certified for HCAI, CE, UKCA, RCM, UL, CSA and more, plus compliant with IEC 61439-1 and IEC 61439-2. Use M8 hardware to mount the unit on a wall. No side clearance, 200mm clearance for the top, and another 200mm for the bottom. Remote management possible with EcoStruxure solution software. Avoid Power Factor Penalty, Improved Efficiency and Relibility, Reduced downtime. Up to 10 units can be paralleled, to achieve instantaneous VAR injection.
