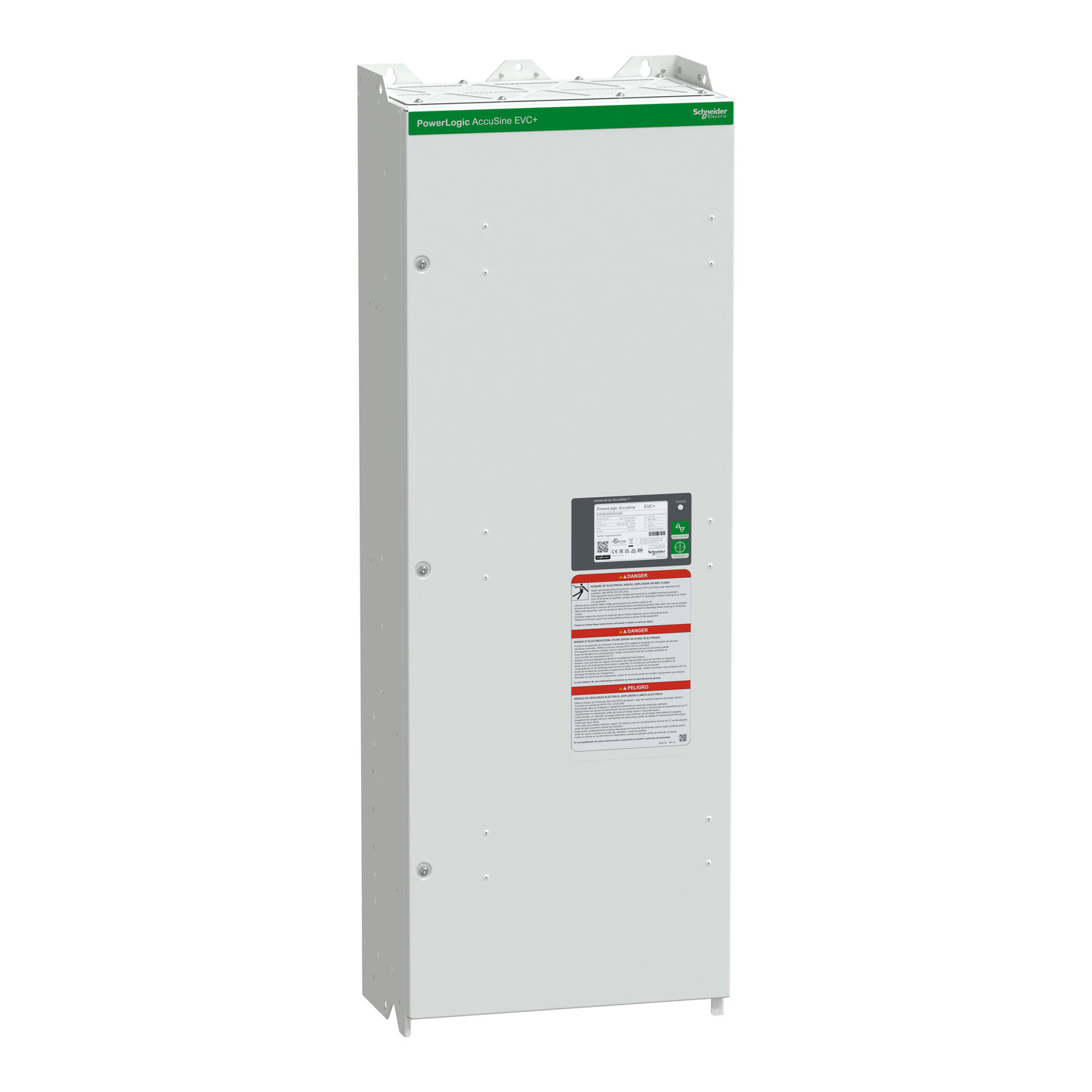

PowerLogic AccuSine EVP+ is an active power correction solution for Electronic VAR Compensation / Static VAR Generator It is designed for Dynamic VAR Correction (PF correction) for industrial applications including mission critical environments. PowerLogic AccuSine EVP+ can also be configured for Harmonic Filtering and Network Unbalance Correction. The AccuSine EVC+ series can be used on a 208V to 480V network. VAR correction range : 1 kVar to 55 kVar at 208V network and 1 KVAR to 100 kVar at (380V to 480V) network. Includes a touchscreen HMI for configuration, commissioning and waveform capture. Connections include RS485 for Modbus protocol, and an USB port for firmware upgrades or reports. To be used by OEM (provided in an IP00 / UL open chassis) to be installed in a cabinet. To be used by OEM (IP00 / UL Type Open) chassis mount to be installed in a cabinet, with marine certification (DNV & ABS) The dimensions of the chassis are 1260mm in Height, 440mm in Width, 265mm in Depth, Weight 90kg. Compliant with marine standard DNV-GL and other certifications (HCAI, CE, UKCA, RCM, UL, CSA) as well as IEC 61439-1 and IEC 61439-2. Use M8 hardware to mount the unit in an enclosure. Remote management possible with EcoStruxure solution software. Avoid Power Factor Penalty, Improved Efficiency and Relibility, Reduced downtime. Up to 10 units can be paralleled, to achieve instantaneous VAR injection.
