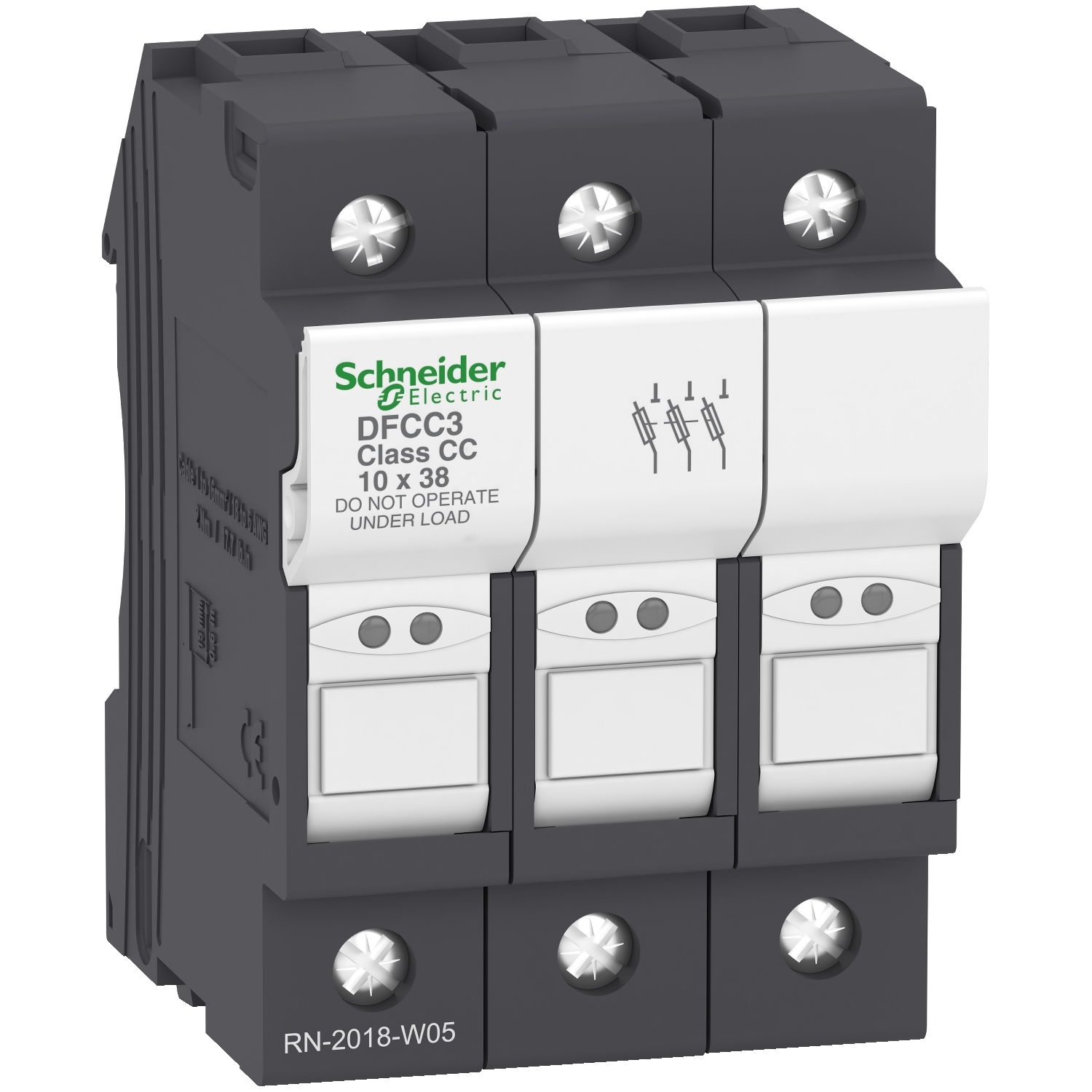

TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 30A/690V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (UL recognized, CSA).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | DFCC |
| Poles description | 3P |
| Control type | toggle padlockable |
| [Ie] rated operational current | 30 A |
| [Ui] rated insulation voltage | 600 V AC |
| Short-circuit withstand | 200 kA 600 V conforming to UL 512 |
| Range | TeSys |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Utilisation category | AC-20B conforming to IEC 60947-3 |
| Power dissipation in W | 3 W maximum power dissipation by fuse |
| Product name | TeSys DF |
| Product or component type | fuse carrier |
| Fuse type | , CC |
| Range of product | TeSys fuse carriers |
| [Ue] rated operational voltage | 600 V AC |
| Complementary | |
| Depth | 61 mm |
| Width | 52.5 mm |
| Quantity per set | set of 6 |
| Tightening torque | 2 N.m - with screwdriver flat Ø 5.5 mm, 2 N.m - with screwdriver PZ2 |
| Mounting position | vertical (tolerance: +/- 23°) |
| Net weight | 0.126 kg |
| Connections - terminals | screw clamp terminals 2 cable(s) 1-6 mm²flexible with or without, screw clamp terminals 1 cable(s) 1-16 mm²flexible with or without, screw clamp terminals 2 cable(s) 1-6 mm²rigid, screw clamp terminals 1 cable(s) 1-16 mm²rigid |
| Product certifications | CSA, UL recognized |
| Standards | CSA C22.2 No 4248-4, CSA C22.2 No 4248-1, UL 4248-4, UL 4248-1 |
| Mounting support | 35 mm symmetrical DIN rail |
| Height | 79.5 mm |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Operating altitude | 0...2000 m without derating |
| Compatibility code | DFCC |
| Ambient air temperature for storage | -40-70 °C |
| Pollution degree | 3 |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -40-70 °C with derating above 20°C |
