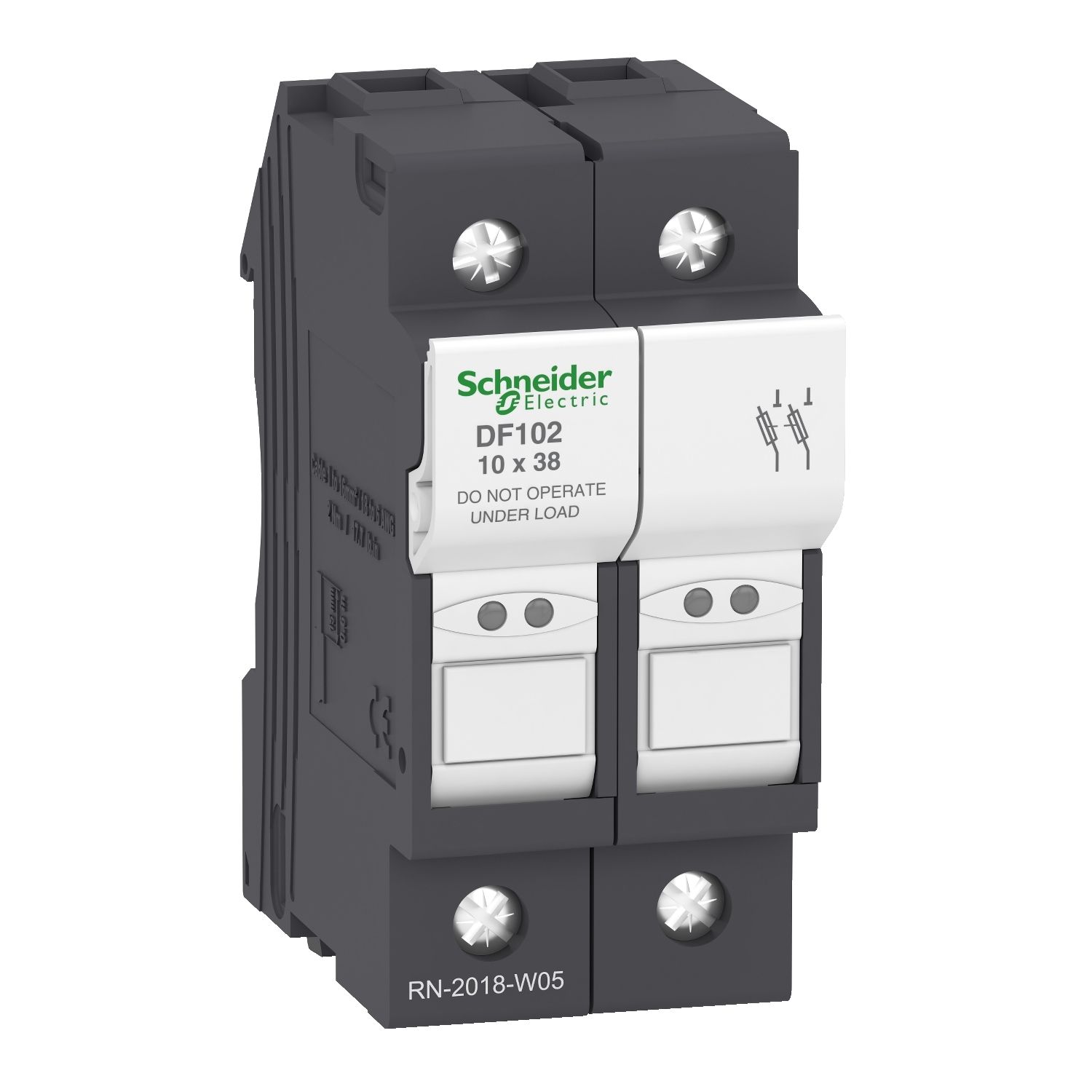

Fuse carrier, TeSys DF, 2P, 32A, 690VAC, fuse size 10x38mm

To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA at 400V

Dual positions locking system for easy DIN-rail mounting

Prevent damage to your installation

Reduce risk for equipment and personnel

Improve production uptime

Manufacturer: Schneider Electric

SKU: DF102

GTIN: 3389119407236

PDF

Image of product

Instruction sheet

Declaration of conformity

Catalog

Full Description

TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA at 400V. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine).

Availability: Out of stock

Old price: $36.85 inc GST

Price: $14.63 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
[Ue] rated operational voltage	690 V AC, 690 V DC
Fuse type	0-32 A, aM, 0-32 A, gG
Product or component type	fuse carrier
Product name	TeSys DF
Utilisation category	AC-20B conforming to IEC 60947-3, DC-20B conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage	6 kV
Overvoltage category	III
Short-circuit withstand	120 kA 400 V conforming to IEC 60947-3, 120 kA 500 V conforming to IEC 60947-3
[Ui] rated insulation voltage	690 V AC
Product compatibility	DF2CA fuse cartridge, DF2CN fuse cartridge
Control type	toggle padlockable
Poles description	2P
Fuse size	10 x 38 mm
Range of product	TeSys fuse carriers
[Ith] conventional free air thermal current	32 A 20 °C
Power dissipation in W	3 W maximum power dissipation by fuse
Range	TeSys
[Ie] rated operational current	32 A at 400 V AC
Device short name	DF10
Complementary
Mounting support	35 mm symmetrical DIN rail
Net weight	0.085 kg
Mounting position	vertical (tolerance: +/- 23°)
Width	35 mm
Depth	61 mm
Height	79.5 mm
Standards	EN/IEC 60947-3, EN/IEC 60269-2, UL 4248-1, CSA C22.2 No 4248-1, EN 45545-2: R22 HL2
Product certifications	IEC, UL recognized, CSA, CCC, EAC, DNV-GL
Connections - terminals	screw clamp terminals 1 cable(s) 1-16 mm²rigid, screw clamp terminals 2 cable(s) 1-6 mm²rigid, screw clamp terminals 1 cable(s) 1-16 mm²flexible with or without, screw clamp terminals 2 cable(s) 1-6 mm²flexible with or without
Tightening torque	2.2 N.m - with screwdriver PZ2, 2.2 N.m - with screwdriver flat Ø 5.5 mm
Quantity per set	set of 6
Environment
Operating altitude	0...2000 m
Ambient air temperature for operation	-40-70 °C with derating above 20°C
IP degree of protection	IP20
Pollution degree	3
Ambient air temperature for storage	-40-70 °C
Compatibility code	DF10
Fire resistance	960 °C conforming to IEC 60695-2-1
Contractual warranty
Warranty	18
