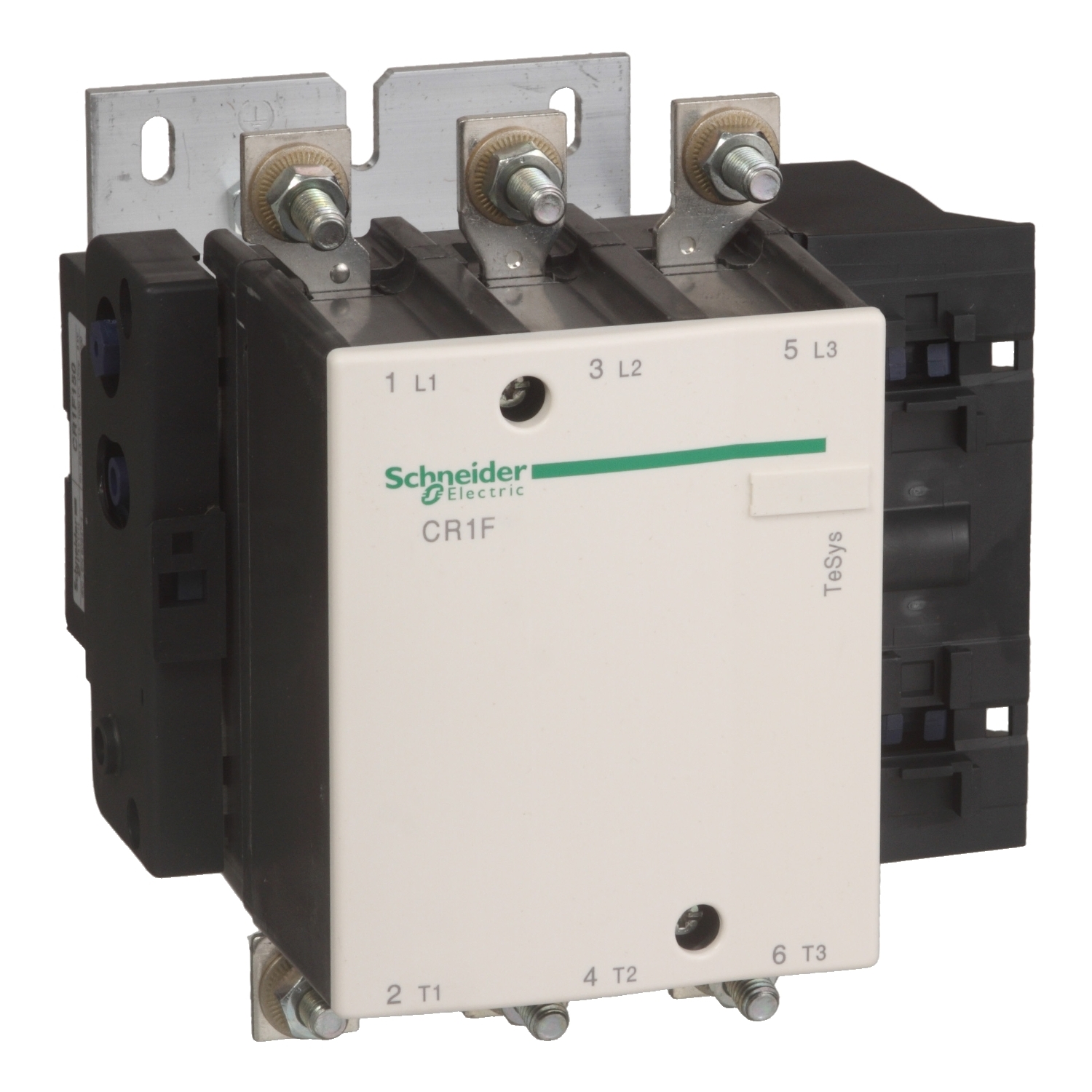

TeSys F magnetic latching contactor, 3 poles (3NO), 185A/1000V AC-3, for motor applications up to 90kW@400V. It provides a double coil 220-230V AC (50-400Hz) or DC for latching and unlatching, bolt terminals for bars or cables with lugs. Supply to the coils must be applied by pulsed contacts leading to energy saving and no sensibility to interferences for contactors remaining in closed state for long periods. For operating rates until 120 cycles/hour and environments until 70°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks (instantaneous and time delay auxiliary contacts, suppressor blocks) and connection accessories (to be ordered separately). It conforms to IEC 60158-1 and IEC 60947-4.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Icw] rated short-time withstand current | 400 A 40 °C - 10 min, 500 A 40 °C - 3 min, 740 A 40 °C - 1 min, 920 A 40 °C - 30 s, 1500 A 40 °C - 10 s, 1500 A 40 °C - 5 s, 1500 A 40 °C - 1 s |
| Device short name | CR1F |
| Device application | control |
| [Ui] rated insulation voltage | 1500 V conforming to VDE 0110 group C, 1000 V conforming to BS 775, 1000 V conforming to IEC 60947-4, 1000 V conforming to IEC 60158-1 |
| Motor power kW | 90 kW at 400 V AC 50/60 Hz (AC-4) |
| Operating time | 50...100 ms unlatching, 35...40 ms latching |
| Poles description | 3P |
| Mechanical durability | 1 Mcycles |
| Tightening torque | 18 N.m |
| Maximum operating rate | 120 cyc/h 40 °C |
| [Ie] rated operational current | 170 A (at <40 °C) at <= 440 V AC AC-4, 275 A (at <40 °C) at <= 440 V AC AC-1, 185 A (at <40 °C) at <= 440 V AC AC-3 |
| Utilisation category | AC-3, AC-1, AC-4 |
| Pole contact composition | 3 NO |
| Range | TeSys |
| Connections - terminals | power circuit: bolted connection, connector 1 cable(s) 150-150 mm², lugs-ring terminals 1 cable(s) 150-150 mm², bars 2 cable(s) - busbar cross section: 25 x 3 mm |
| Associated fuse rating | 315 A gG at <= 440 V, 315 A BS88 at <= 440 V, 200 A aM at <= 440 V |
| Product name | TeSys F |
| Irms rated making capacity | 2100 A |
| Product or component type | magnetic latching contactor |
| Rated breaking capacity | 1200 A at 660/690 V, 600 A at 1000 V, 1600 A at 500 V, 1800 A at 220...440 V |
| Contactor application | motor control, resistive load |
| [Uc] control circuit voltage | 220...230 V DC, 220...230 V AC 50...400 Hz |
| Control circuit type | DC standard, AC at 50...400 Hz |
| Standards | CSA C22.2 No 60947-4-1, UL 60947-4-1, JIS C8201-4-1, EN/IEC 60947-4-1, EN/IEC 60947-1 |
| Range of product | TeSys F |
| Average impedance | 0.36 mOhm - Ith 275 A 50 Hz |
| Power dissipation per pole | 26 W AC-1, 12 W AC-3 |
| [Ue] rated operational voltage | 1000 V AC 25...200 Hz |
| Product certifications | UKCA, CE, EAC, CSA, UL, CB Scheme |
| Complementary | |
| Compatibility code | CR1F |
| Average coil consumption | 11 VA DC unlatching, 1750 VA DC latching, 11 VA AC 50...400 Hz unlatching, 1750 VA AC 50...400 Hz latching |
| Control circuit voltage limits | unlatching: 0.85...1.1 Uc, latching: 0.85...1.1 Uc |
| Environment | |
| Depth | 181 mm |
| Width | 168.5 mm |
| Operating altitude | 3000 m without derating |
| Protective treatment | TC |
| Ambient air temperature for storage | -60-80 °C |
| Net weight | 4.6 kg |
| Ambient air temperature for operation | -15-70 °C |
| Height | 174 mm |
