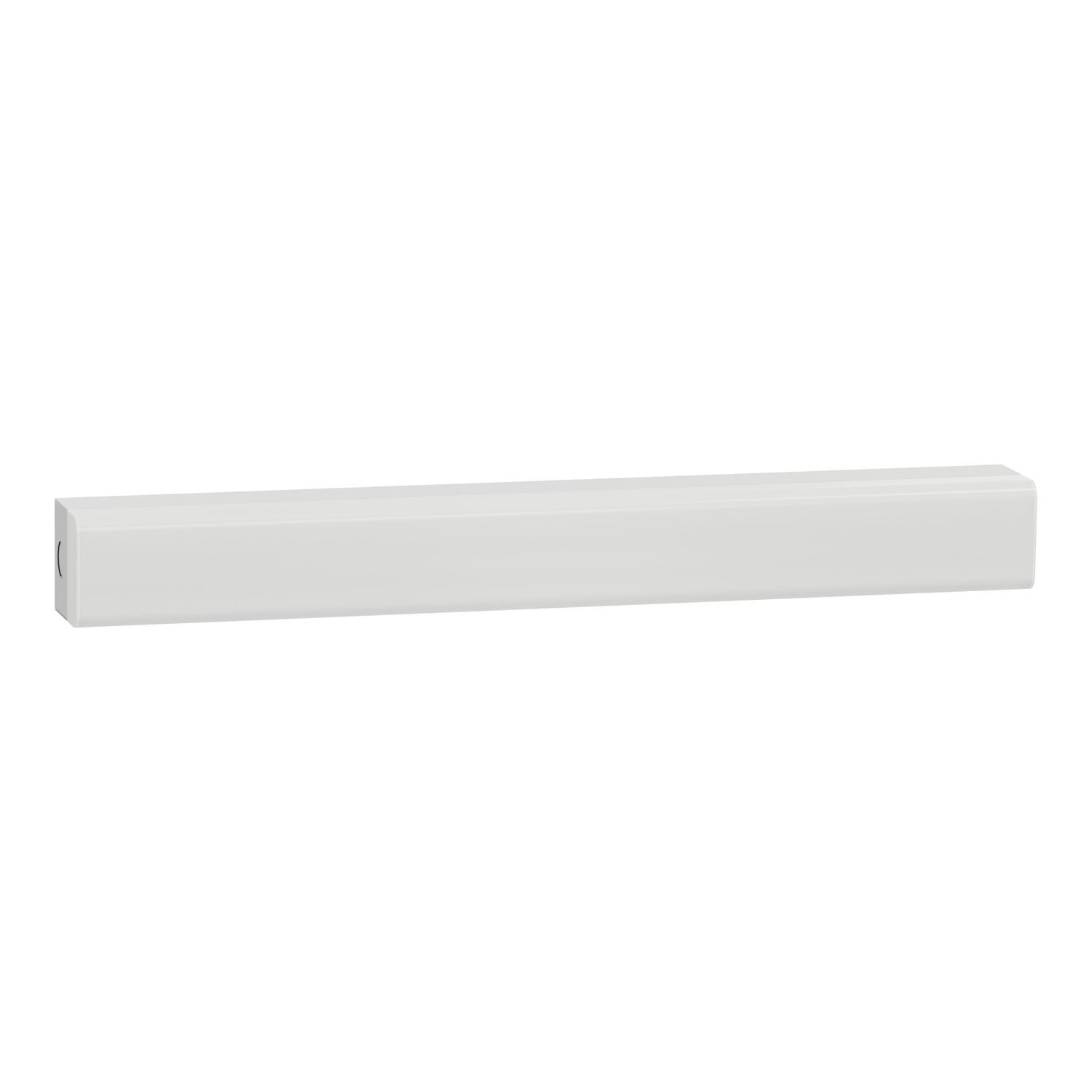

LED Diffused Batten, Clipsal - Lighting, 18W, 600mm, 2250lm, white

Manufacturer: Clipsal

SKU: CLITPDB600

GTIN: 3606487149323

Image of product

Instruction sheet

Catalog

Brochure

Full Description

The Clipsal lighting LED diffused batten is suitable for use in residential, commercial, and hotel applications. It is a long-lasting and low-maintenance product. The rated operational voltage is 230/240VAC, and the rated power is 18W. Experience excellent brightness with 2250lm luminous flux. It has a rectangular shape. Installation can be both indoors or outdoors. This device allows for surface mounting. The dimensions are (W) 70mm x (H) 600mm x (D) 68mm, and the product weighs 930g. The color of the product is white. It has an IP20 rating for dust resistance and an IK02 rating for impact protection. Discover Clipsal for your general lighting needs. Use this product in conjunction with other Clipsal control devices for added functionality.

Availability: Out of stock

Old price: $60.39 inc GST

Price: $86.96 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	batten light
Product name	TPDB Series
Range	Clipsal
Market segment	small commercial, residential
Device application	lighting
Complementary
[Ue] rated operational voltage	230/240 V AC 50 Hz
Width	70 mm
Shape	rectangular
IK degree of protection	IK02
Operational power in W	18 W
Electrical insulation class	class I
Mounting mode	surface mounting
Luminous flux	2250 lm
IP degree of protection	IP20
Main colour tint	white
Device mounting	surface
Colour temperature	3000 K, 4000 K, 5000 K
Length	600 mm
Net weight	930 g
Type of installation	indoor/outdoor
Height	68 mm
Bulb lifespan	50000 h
Light source	LED 18 W
Environment
Ambient air temperature for operation	-10-45 °C
Colour rendering index	R<sub>a</sub>=80
Targeted country	Australia
Relative humidity	10-95 % non-condensing
Contractual warranty
Warranty	36
