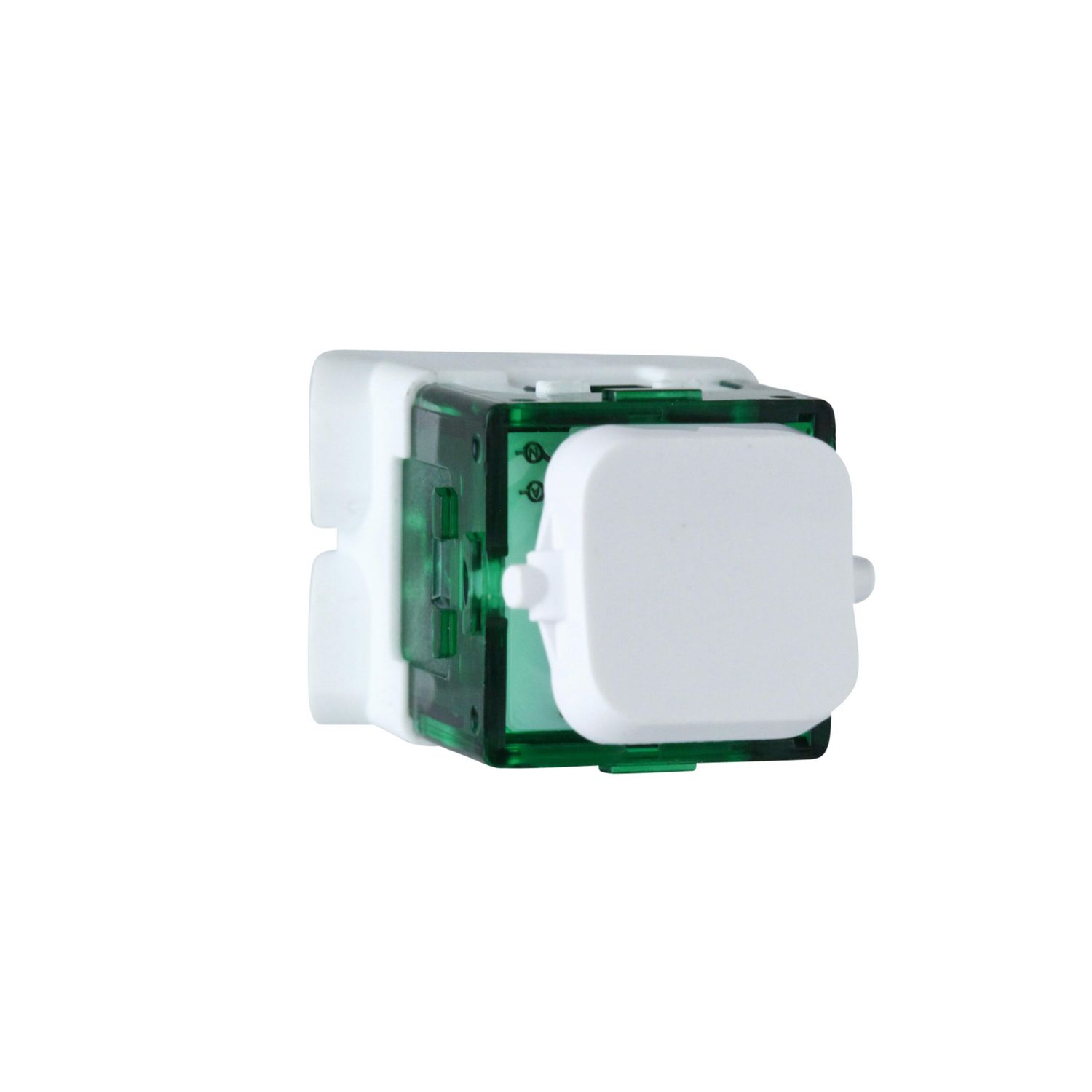

Rated for heavier duty switching, the 20AX, 250V Clipsal Pro Series Double Pole switch is designed for control of two circuits with the one switch. The one way switch mechanism has a gloss finish and can be fitted with a range of pictograms to identify use.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | set of 20 |
| Range | Pro Series |
| Product or component type | switch |
| Complementary | |
| [Ue] rated operational voltage | 250 V |
| Depth | 33 mm |
| Width | 23 mm |
| Switch function | 2-pole 1-way |
| Device presentation | mechanism |
| Control type | rocker |
| Net weight | 0.016 kg |
| Material | ABS (acrylonitrile butadiene-styrene), PA66, PC (polycarbonate) |
| Clamping connection capacity | 1 x 4 mm² for stranded cable(s), 3 x 2.5 mm² for stranded cable(s), 1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s) |
| Fixing mode | by clips |
| Rated current | 20 A |
| Height | 23 mm |
| Connections - terminals | screw terminal |
| Environment | |
| Relative humidity | 10-95 % |
| Ambient air temperature for operation | 0-45 °C |
| Product certifications | RCM |
