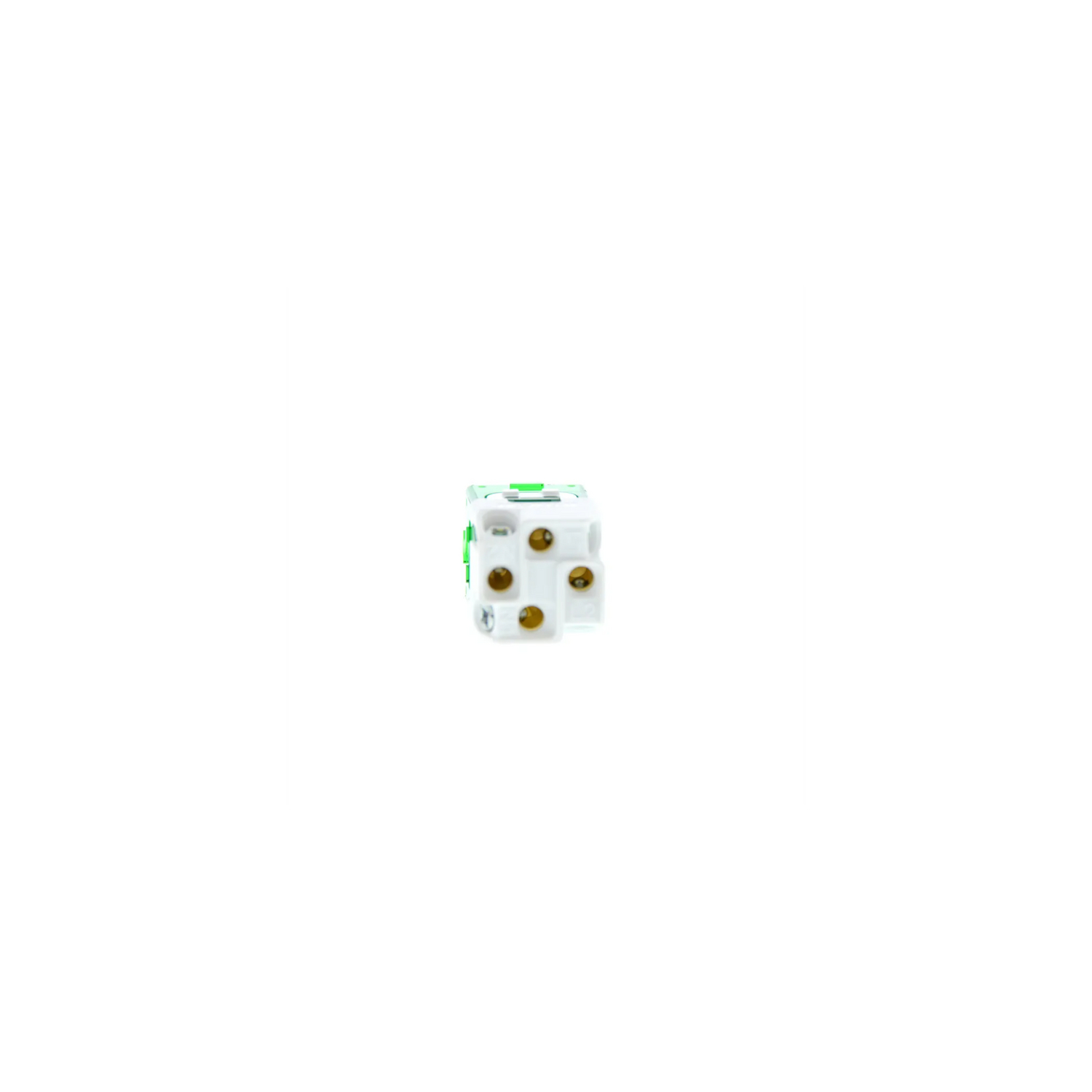

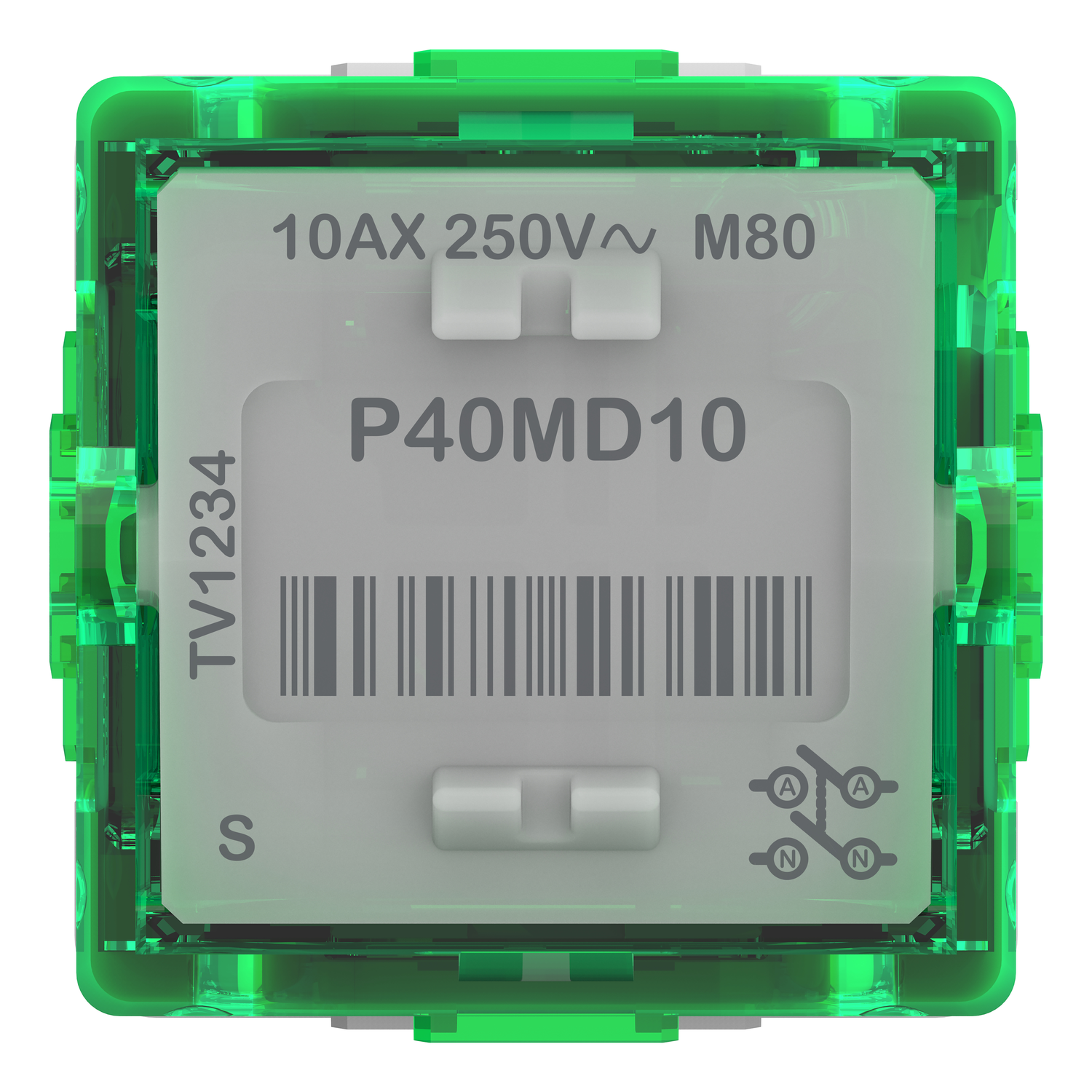

The Pro Series Double Pole Switch lets you control two circuits with just one switch. The 10AX, 250V switch fits into the Clipsal Pro Series Grid, creating a look that is seamless and aesthetically pleasing for commercial buildings.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | set of 20 |
| Range | Pro Series |
| Product or component type | switch |
| Complementary | |
| [Ue] rated operational voltage | 250 V |
| Depth | 33 mm |
| Width | 23 mm |
| Switch function | 2-pole 1-way |
| Device presentation | mechanism |
| Control type | rocker |
| Net weight | 0.016 kg |
| Material | ABS (acrylonitrile butadiene-styrene), PA66, PC (polycarbonate) |
| Clamping connection capacity | 1 x 4 mm² for stranded cable(s), 3 x 2.5 mm² for stranded cable(s), 1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s) |
| Fixing mode | by clips |
| Rated current | 10 A |
| Height | 23 mm |
| Connections - terminals | screw terminal |
| Environment | |
| Relative humidity | 10-95 % |
| Ambient air temperature for operation | 0-45 °C |
| Product certifications | RCM |
