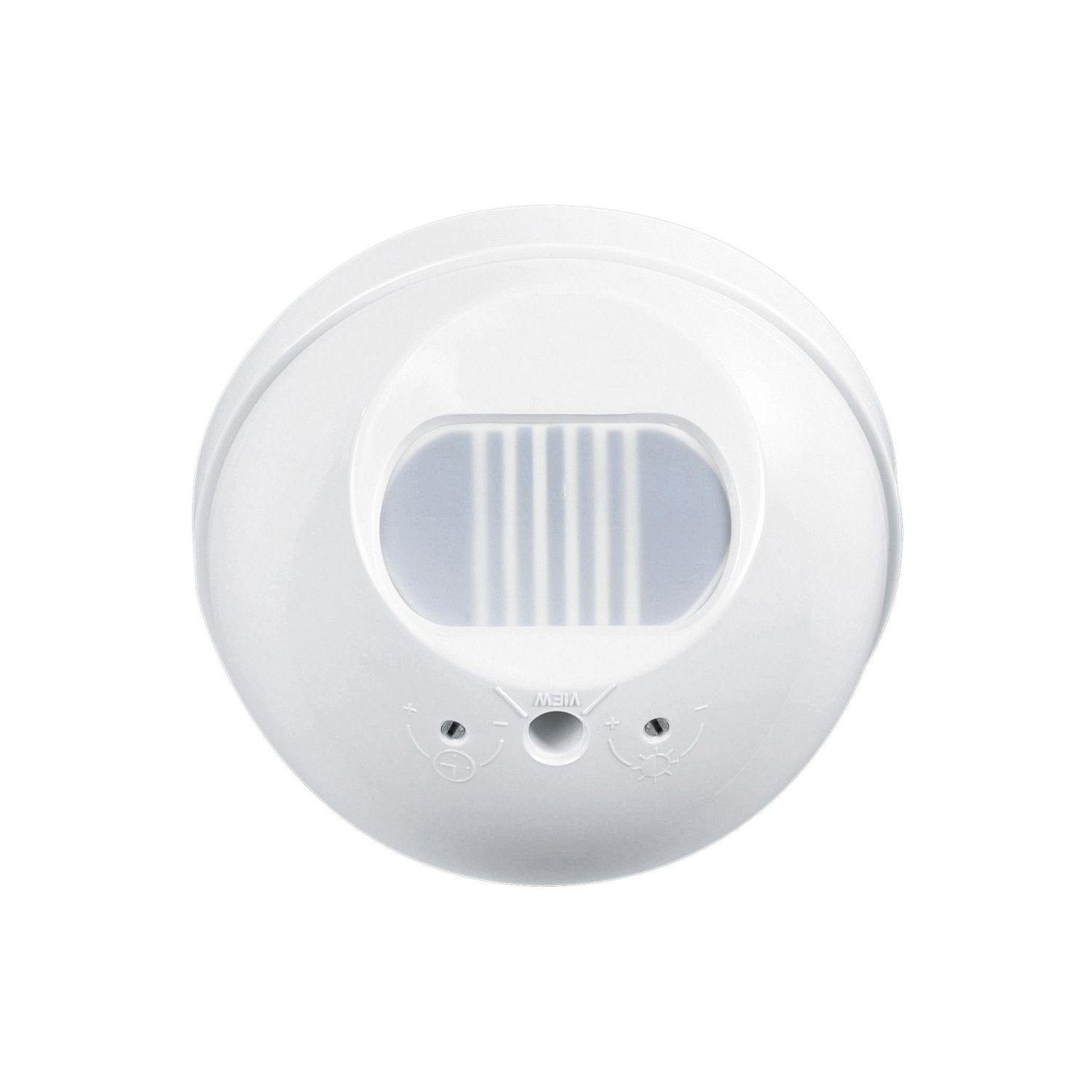

Motion sensor with passive infrared technology, integrated timer and light level sensor. The device switches lights on upon movement detection for a defined time period depending on the ambient light level. Suitable for indoor applications. Detection range of 6m with 90 degrees field of view. Timer range is 5s to 20min. Infrascan range. Colour: White Electric Operating voltage 240V a.c. 50Hz, 3-wire design, rated current 10A. Note: Requires installation by an appropriately licenced electrician.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | lighting |
| Colour | white electric |
| Sensor type | PIR |
| Range | Infrascan |
| Product specific application | staircase monitoring |
| Product or component type | movement sensor |
| Product brand | Clipsal |
| Complementary | |
| Protection type | creep zone protection |
| Movement detection area | 12 m |
| Horizontal detection angle | 0-120 ° |
| Function available | automatic with manual override |
| Colour code | WE |
| Mounting height | 2.4 m |
| Time delay range | 0...5 s (switch-on) |
| [Ue] rated operational voltage | 200...265 V AC |
| Duty cycle | 20 min |
| Material | plastic |
| Power range | <= 2300 W |
| Mounting support | wall, ceiling |
| Inrush current | 10 A |
| Detection face | frontal: 6 m, lateral: 6 m |
| Network frequency | 50 Hz |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0-40 °C |
