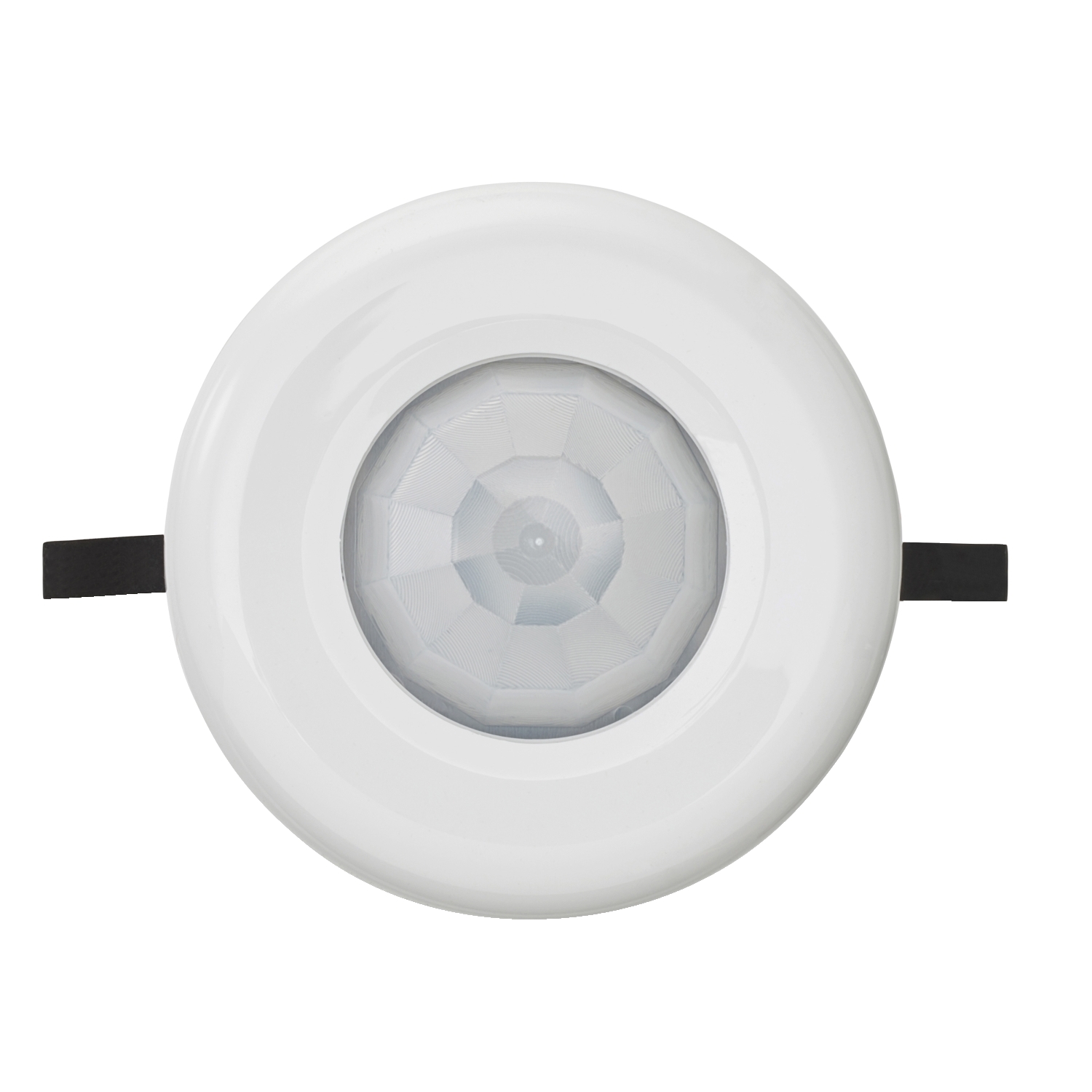

Motion sensor with passive infrared technology, integrated timer and light level sensor. The device switches lights on upon movement detection for a defined time period depending on the ambient light level. Suitable for indoor residential and commercial applications. Detection range of 5m radius. Timer range is 5s to 20min. Infrascan range. Colour: White Electric Operating voltage 240V a.c. 50Hz, 3-wire design, rated current 2A. Note: Requires installation by an appropriately licenced electrician.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | lighting |
| Colour | white electric |
| Sensor type | PIR |
| Range | Infrascan |
| Product specific application | staircase monitoring |
| Product or component type | movement sensor |
| Product brand | Clipsal |
| Complementary | |
| Protection type | creep zone protection |
| Movement detection area | 14 m |
| Horizontal detection angle | 0-360 ° |
| Function available | automatic with manual override |
| Colour code | WE |
| Mounting height | 2.4 m |
| Time delay range | 0...5 s (switch-on) |
| Surface finish | brilliant |
| [Ue] rated operational voltage | 200...265 V AC |
| Duty cycle | 20 min |
| Material | plastic |
| Power range | <= 2300 W |
| Mounting support | ceiling |
| Device mounting | flush |
| Inrush current | 10 A |
| Detection face | frontal: 7 m, lateral: 7 m |
| Network frequency | 50 Hz |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0-50 °C |
