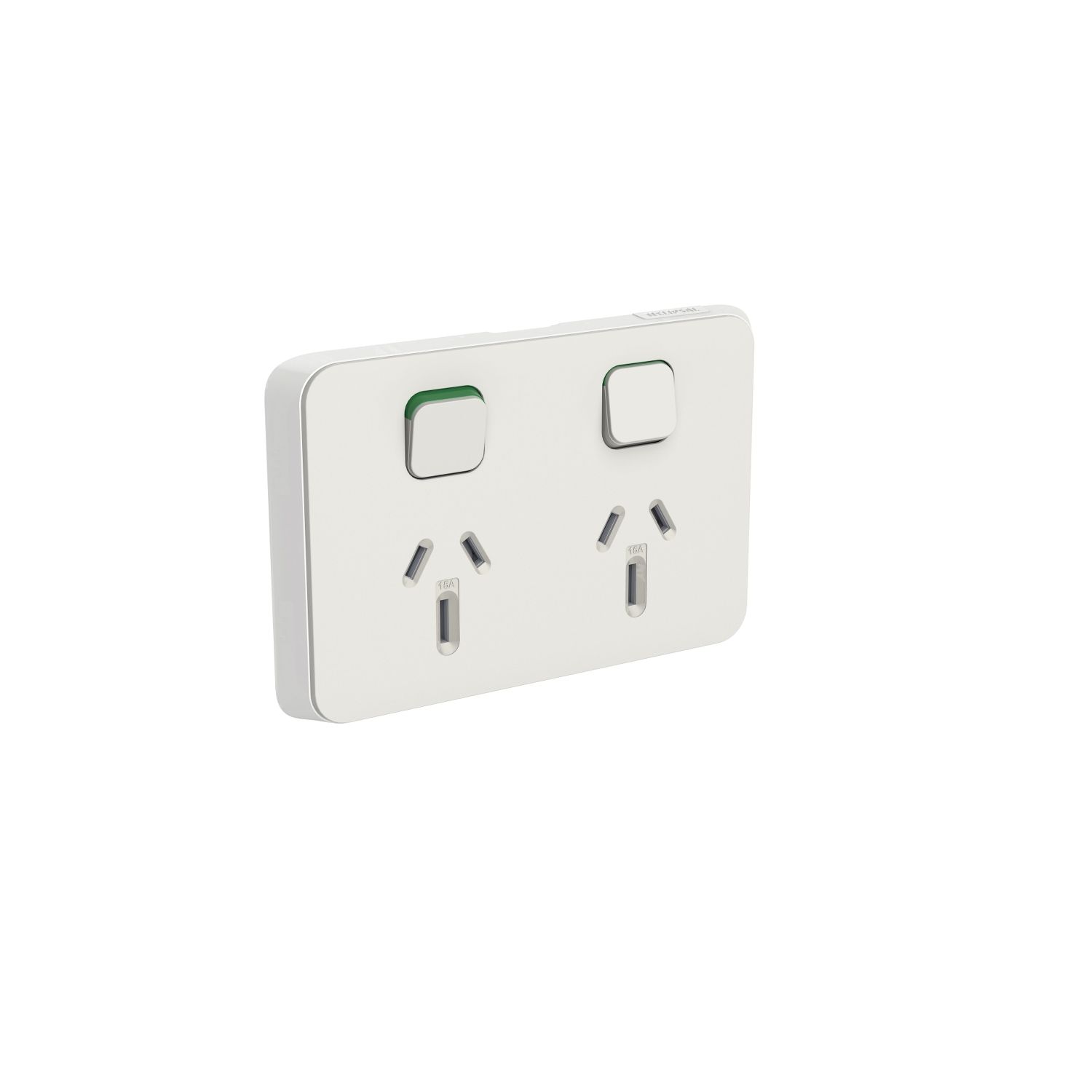

The Clipsal Iconic Twin Power Point incorporates 2 x 15A 250V rated outlets, suitable for industrial appliances or heavy duty electrical equipment. Horizontal in layout, feel confident in the knowledge that this product has been engineered with safety in mind.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Outlet poles configuration | 2P + E with shutter |
| Device presentation | complete product |
| Outlet standard | Australian |
| Range | Clipsal Iconic |
| Product or component type | switched socket |
| Complementary | |
| Number of power socket outlets | 2 |
| Quantity per set | set of 10 |
| Sale per indivisible quantity | 1 |
| Wire stripping length | 16 mm |
| Height | 78 mm |
| Connections - terminals | 3 screw terminals |
| Electrical durability | 10000 cycles |
| Number of rocker | 2 |
| Material | ABS (acrylonitrile butadiene-styrene): cover frame, PC (polycarbonate): cover frame, POM (polyoxymethylene): shutter, PP (polypropylene): rocker, PC (polycarbonate): fixing frame |
| Net weight | 0.116 kg |
| Type of packing | polybag |
| Clamping connection capacity | 1 x 2.5...4 x 2.5 mm² for flexible cable(s), 1 x 2.5...4 x 2.5 mm² for stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid cable(s) |
| Range compatibility | Clipsal Iconic |
| Device mounting | flush |
| Embedding depth | 18 mm |
| Ground lug position | straight 180° position |
| Surface finish | matt |
| Screwdriver shape | Philips No 2, square drive no 1 (SQ1) |
| Depth | 30 mm |
| Width | 120 mm |
| Installation direction | horizontal |
| Outlet standard description | with earthing contact |
| Outlet standard deviation | Australian/New Zealand |
| Rated current | 15 A at 250 V AC 50 Hz |
| Fixing mode | by screw |
| Colour tint | vivid white (VW) |
| Environment | |
| Relative humidity | 10-95 % |
| Product certifications | RCM |
| Ambient air temperature for operation | 0-45 °C |
| Standards | AS/NZS 3112 |
