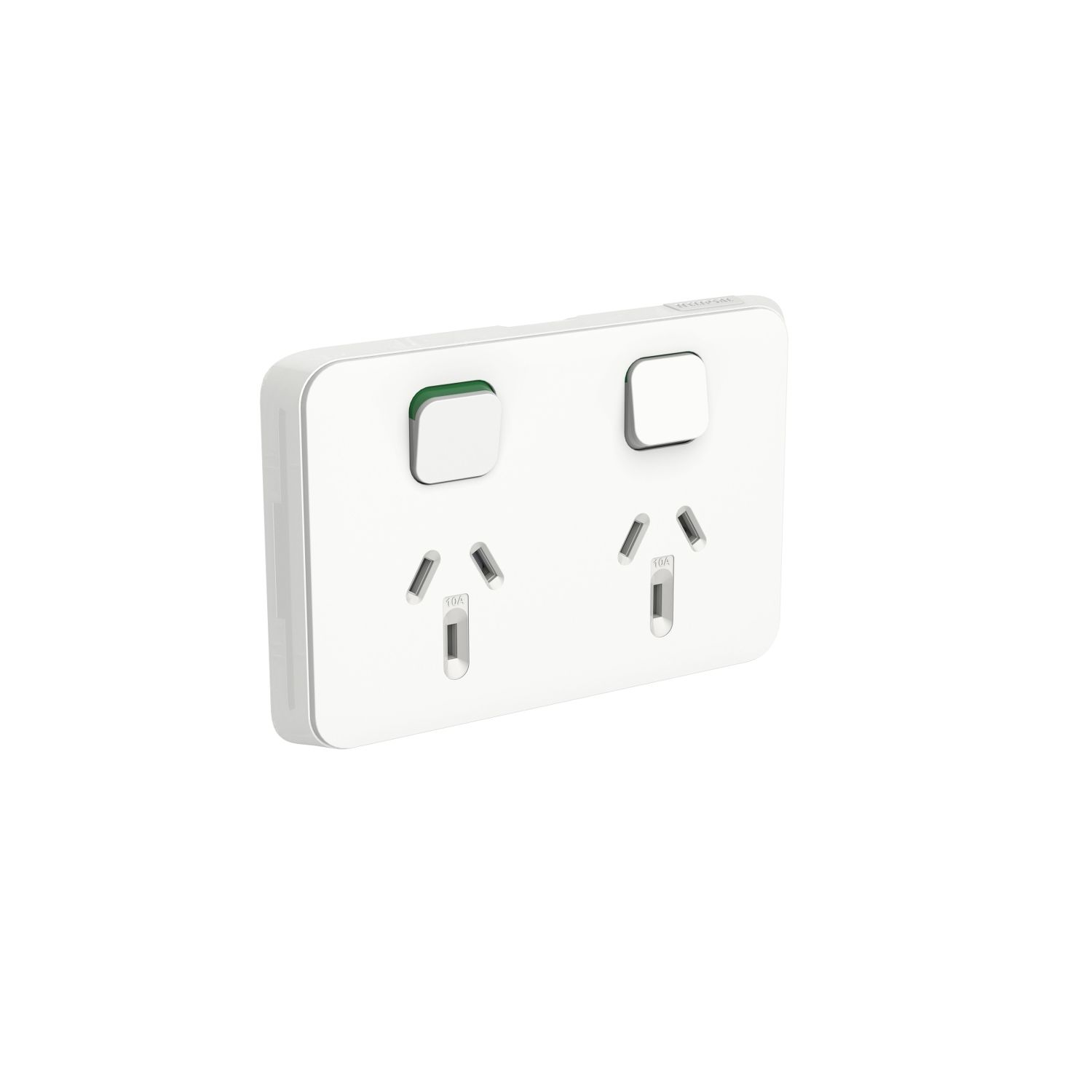

This Iconic switched socket is white in color and its connection terminals are screw terminals. Its matching mounting box can be recessed into the surface of the wall with flush type. The switched socket is made of ABS (acrylonitrile butadiene-styrene), PC (polycarbonate), POM (polyoxymethylene), PP (polypropylene), making it resistant and durable. It has 2 rockers. Its fixing mode is made by screw. It is compatible with the Iconic range. This device supports horizontal mounting. The pole configuration of the outlet is 2P + E. The switched socket suits horizontal orientation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Outlet standard | Australian |
| Outlet poles configuration | 2P + E with shutter |
| Device presentation | complete product |
| Range | Iconic |
| Range of product | Iconic |
| Product or component type | switched socket |
| Complementary | |
| Ground lug position | straight 180° position |
| Number of power socket outlets | 2 |
| Electrical durability | 12000 cycles |
| Number of rocker | 2 |
| Material | POM (polyoxymethylene): locking bar, POM (polyoxymethylene): shutter, PP (polypropylene): rocker, PC (polycarbonate): fixing frame, ABS (acrylonitrile butadiene-styrene): cover frame, PC (polycarbonate): cover frame |
| Installation direction | horizontal |
| Outlet standard description | with earthing contact |
| Outlet standard deviation | Australian/New Zealand |
| Rated current | 10 A at 250 V AC 50 Hz |
| Fixing mode | by screw |
| Range compatibility | Iconic |
| Device mounting | flush |
| Colour tint | white (XW) |
| Environment | |
| Ambient air temperature for storage | 0-60 °C |
| Relative humidity | 10-95 % |
| Ambient air temperature for operation | 0-45 °C |
