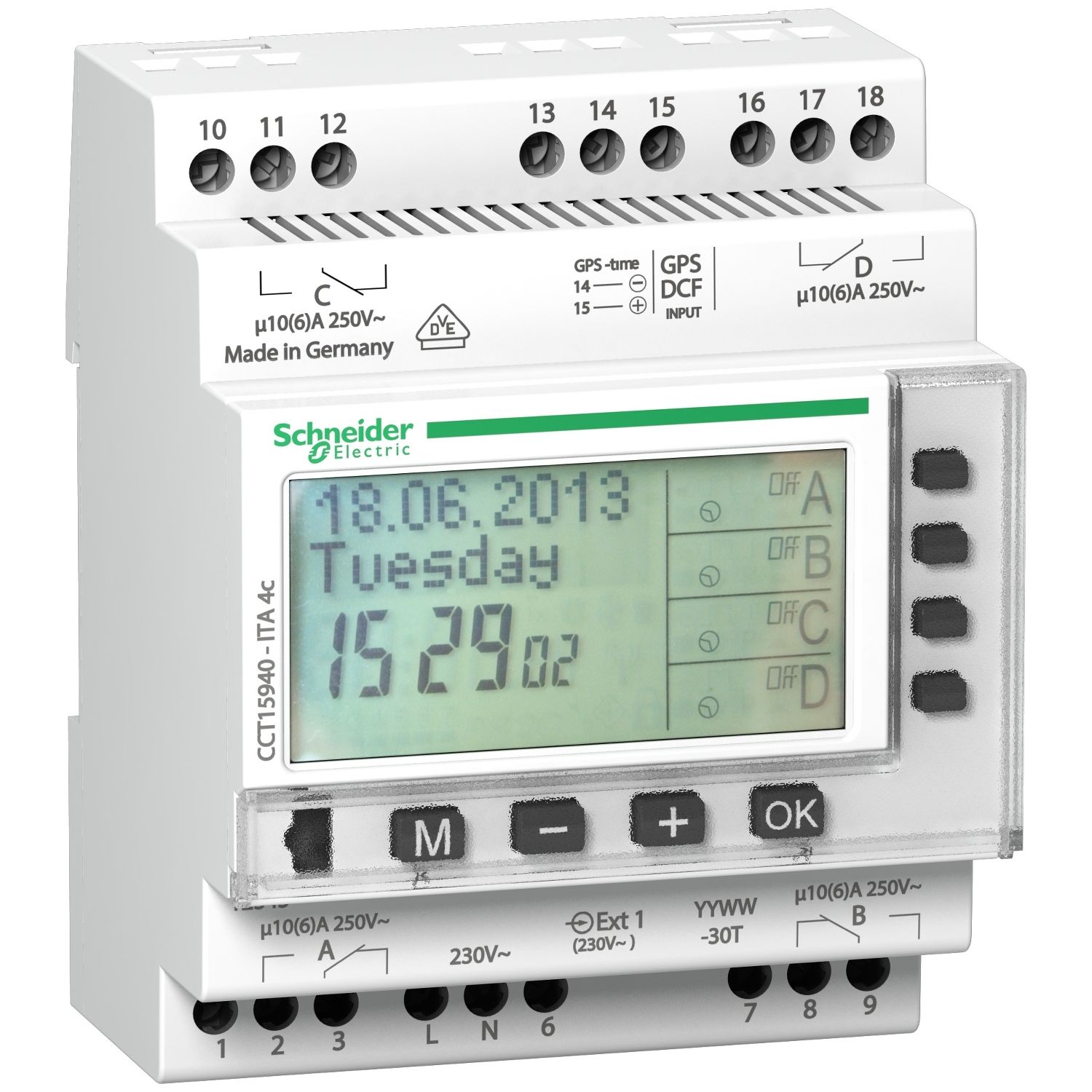

ITA 4c yearly programmable time switch. Weekly or yearly time programming to be distributed over 4 channels. Override control with switch or push-button via external inputs. A memory key and a programming kit can be used to duplicate on another ITA or to save the program created by the user. Voltage rating (Ue): 230 V AC, 50/60 Hz. Consumption 124-3.2 W depending on the switching status). Operating temperature -30°C to +55°C. Width (9 mm modules): 8. Degree of protection: IP20. Output contact rating 250 V: 16 A cos Phi 1. 6 A cos Phi 0.6. LCD liquid crystal display: Back-lit. Number of switching operations: 300. Minimum switching: 1 s. Switching accuracy: Without antenna: ± 0.5 s per day at 20°C. With antenna: 1 s on 1 million years1 s. Number of channels: 4.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ITA |
| Device application | building |
| Number of channels | 4 |
| Battery type | lithium |
| Range | Acti9 |
| User language | Finnish, Polish, Czech, Romanian, Swedish, Portuguese, Danish, English, German, Italian, Dutch, French, Spanish, Norwegian, Hungarian |
| Range of product | Acti9 |
| Product name | Acti9 ITA |
| Product or component type | yearly programmable time switch |
| Colour tint | white (RAL 9003) |
| Complementary | |
| Type of setting | absence for holidays function, PIN code |
| Display type | backlit LCD |
| Compatibility code | ITA |
| Battery life | 10 year(s) |
| Function available | automatic winter/summer time changeover, time synchronisation via antenna possible, external input for override, pulse programming, manual or software programming, cycle programming |
| Number of inputs | 2 input(s) impulse and maintained |
| Maximum number of switchings | 300 |
| Backup time | 10 years time and program saving |
| Accuracy | +/- 0.5 s/day 20 °C |
| Maximum switching current | 6 A - 250 V AC pf = 0.6 , 10 A - 250 V AC pf = 1 |
| Height | 90 mm |
| Minimum interval duration | 1 s |
| Depth | 63 mm |
| Market segment | small commercial |
| Width | 71.5 mm |
| Absence for holidays | yes |
| Updated by | DCF77, GPS |
| Function | pulse programming |
| Mounting support | DIN rail |
| Connections - terminals | screw terminals |
| 9 mm pitches | 8 |
| Time changeover | automatic |
| [Ue] rated operational voltage | 230 V AC at 50/60 Hz |
| Cycle duration | 24 hours + 7 days + year |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -30-55 °C |
