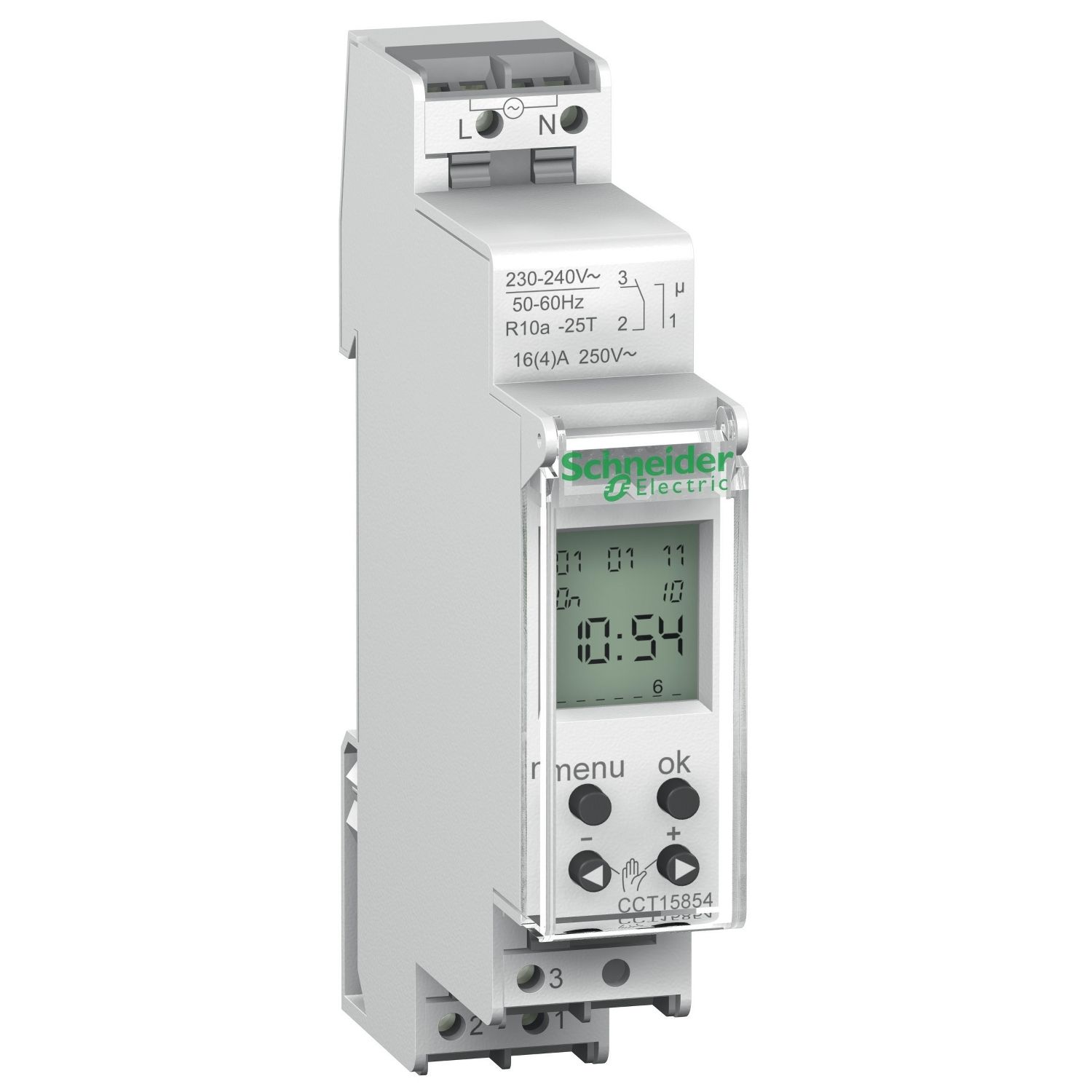

IHP digital time switch Width of 18mm (2 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 56 Savings on mains cut off with battery reserve: 10 years Manual override is possible 1 channel output
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | IHP |
| Device application | building |
| Provided equipment | memory key, programming kit |
| Number of channels | 1 |
| Battery type | lithium |
| Range | Acti9 |
| User language | Spanish, German, Italian, French, English, Portuguese |
| Range of product | Acti9 |
| Product name | Acti9 IHP |
| Product or component type | programmable digital time switch |
| Colour tint | white (RAL 9003) |
| Complementary | |
| Type of setting | absence for holidays function, PIN code |
| Display type | LCD |
| Compatibility code | IHP |
| Battery life | 10 year(s) |
| Function available | automatic winter/summer time changeover, operating hours counter |
| Maximum number of switchings | 56 |
| Backup time | 10 years time and program saving |
| Accuracy | +/- 0.5 s/day 25 °C |
| Maximum switching current | 4 A - 250 V AC pf = 0.6 , 16 A - 250 V AC pf = 1 |
| Height | 90 mm |
| Minimum interval duration | 1 min |
| Depth | 66 mm |
| Market segment | small commercial, residential |
| Width | 18 mm |
| Absence for holidays | yes |
| Updated by | none |
| Function | none |
| Mounting support | DIN rail |
| Connections - terminals | 2 x 0.5-2.5 mm² screwless terminals |
| Net weight | 0.09 kg |
| 9 mm pitches | 2 |
| Time changeover | automatic |
| [Ue] rated operational voltage | 230 V AC - 15...10 % at 50/60 Hz |
| Cycle duration | 24 hours + 7 days |
| Environment | |
| IP degree of protection | IP20 B |
| Ambient air temperature for operation | -25-55 °C |
